LEG SHIELD

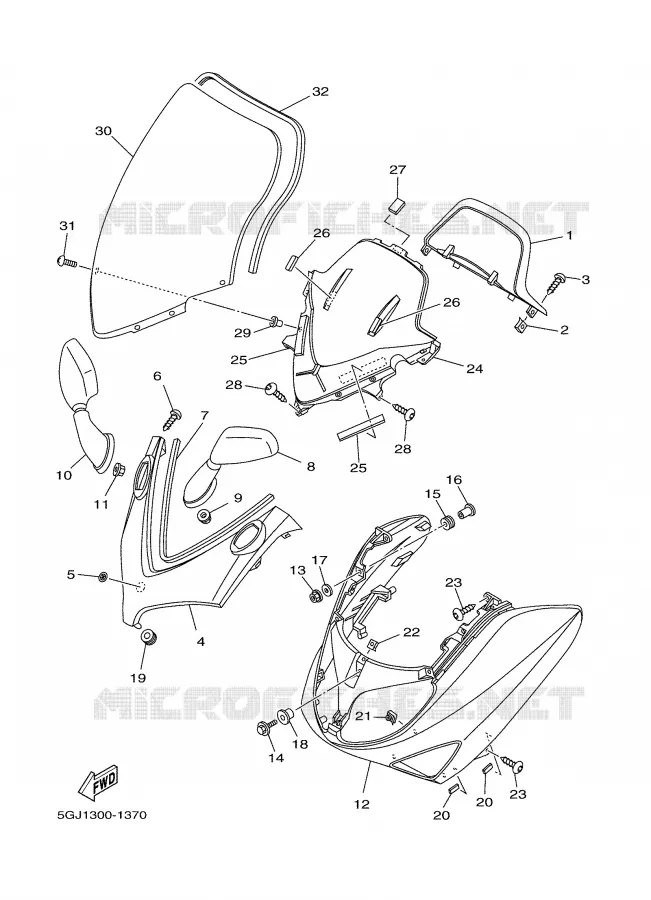

WINDSCREEN FOR YAMAHA TMAX 2002

IGNITION

PANNEAU, FOURCHE NUE 1

5GJ2836K0100 5GJ2836K0100

Not available

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

SCREW, TAPPING

901670507900 901670507900

2,42 $

Unit Price

MOULURE 1

5GJ2834500P0 5GJ2834500P0

Not available

TUNING FORK MARK

5GM2836B0100 5GM2836B0100

42,05 $

Unit Price

SCREW, TAPPING

901670507900 901670507900

2,42 $

Unit Price

MOULURE 3

5GJ283470000 5GJ283470000

Not available

RETROVISEUR (GAUCHE)

5GJ262801000 5GJ262801000

Not available

NUT, FLANGE(4MV)

957070650000 957070650000

2,10 $

Unit Price

RETROVISEUR (DROIT)

5GJ262901000 5GJ262901000

Not available

NUT, FLANGE(4MV)

957070650000 957070650000

2,10 $

Unit Price

CARENAGE COMPLET

5GJ2835000AL 5GJ2835000AL

Not available

CARENAGE COMPLET

5GJ2835000P1 5GJ2835000P1

Not available

CARENAGE COMPLET

5GJ2835000P2 5GJ2835000P2

Not available

CARENAGE COMPLET

5GJ2835000P3 5GJ2835000P3

Not available

NUT, FLANGE(4MV)

957070650000 957070650000

2,10 $

Unit Price

BOLT, FLANGE

958070602500

958170602500

3,86 $

Unit Price

GROMMET (1E6)

904801505800 904801505800

8,37 $

Unit Price

COLLAR (4N0)

90387071E000 90387071E000

5,93 $

Unit Price

WASHER, PLATE (6K8)

902010600800

9020106M0200

4,21 $

Unit Price

COLLERETTE

903870700300 903870700300

Not available

GROMMET(4DN)

904800155800 904800155800

12,86 $

Unit Price

DAMPER

56J217470000

3LD248540000

0,87 $

Unit Price

NUT 1

3VP215350000

25G215350000

5,44 $

Unit Price

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

SCREW, TRUSS TAP.

977075001200 977075001200

1,95 $

Unit Price

PANNEAU, FOURCHE NUE 2

5GJ2836L0000 5GJ2836L0000

Not available

DAMPER, 4

5GJ284551000 5GJ284551000

Not available

DAMPER, 4

5GJ284552000 5GJ284552000

Not available

DAMPER, SEAT

5GJ247230000 5GJ247230000

1,49 $

Unit Price

SCREW, TRUSS TAP.

977075001200 977075001200

1,95 $

Unit Price

NUT(1KT)

901790552300 901790552300

8,74 $

Unit Price

SCREEN

5GJY283P5000 5GJY283P5000

Not available

SCREW, ROUND HEAD(1UX)

901500502400 901500502400

4,57 $

Unit Price

MOULURE

5GJ283760000 5GJ283760000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WINDSCREEN of your Yamaha XP500 of 2002. Let us know if you have any questions.
