STAND / FOOTREST 2

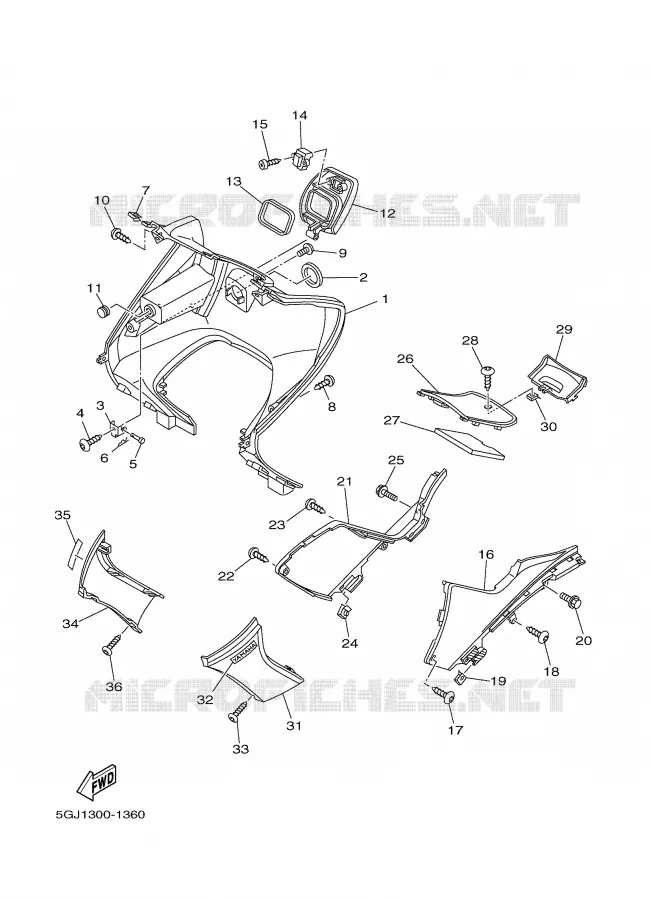

LEG SHIELD FOR YAMAHA TMAX 2002

WINDSCREEN

PROTEGE-JAMBES 1

5GJ283110000 5GJ283110000

Not available

JOINT

5GJ283070000 5GJ283070000

Not available

CHARNIERE

5GJ217960000 5GJ217960000

Not available

SCREW, TRUSS TAP.

977075001200 977075001200

1,95 $

Unit Price

BOULON, A GOUPILLE

902400400200 902400400200

Not available

CLIP 626412360000

904681000400 904681000400

4,31 $

Unit Price

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

SCREW, TAPPING(4TV)

901670507700 901670507700

2,15 $

Unit Price

BOLT

901110500200 901110500200

2,54 $

Unit Price

SCREW, TRUSS TAP.

977075001200 977075001200

1,95 $

Unit Price

PLUG (4X7)

903382011300 903382011300

6,15 $

Unit Price

COUVERCLE

5GJ283130000 5GJ283130000

Not available

AMORTISSEUR

5GJ283710000 5GJ283710000

Not available

ANTIVOL COMPLET

5GJ217800000 5GJ217800000

Not available

SCREW, PAN TAP.2 SLIT

977074051000

977074061000

0,62 $

Unit Price

COUVERCLE1

5GJ282190000 5GJ282190000

SCREW, TAPPING(4TV)

901670507700 901670507700

2,15 $

Unit Price

SCREW, TRUSS TAP.

977075001200 977075001200

1,95 $

Unit Price

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

BOLT, WITH WASHER

901190606000

901190622600

1,39 $

Unit Price

COUVERCLE 2

5GJ282290000 5GJ282290000

Not available

SCREW, TAPPING(4TV)

901670507700 901670507700

2,15 $

Unit Price

SCREW, TRUSS TAP.

977075001200 977075001200

1,95 $

Unit Price

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

BOLT, WITH WASHER

901190606000

901190622600

1,39 $

Unit Price

CACHE LATERALE 5

5GJ2171E0000 5GJ2171E0000

Not available

AMORTISSEUR 5

5GJ282670000 5GJ282670000

Not available

SCREW, TAPPING

901670507900 901670507900

2,42 $

Unit Price

COUVERCLE, CAPUCHON 1

5GJ2846K0000 5GJ2846K0000

Not available

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

PANNEAU 1

5GJ2835U0033 5GJ2835U0033

Not available

EMBLEM, YAMAHA

992460008000 992460008000

23,75 $

Unit Price

SCREW, TRUSS TAP.

977075001200 977075001200

1,95 $

Unit Price

PANNEAU 2

5GJ2835V0033 5GJ2835V0033

Not available

EMBLEM, YAMAHA

992460008000 992460008000

23,75 $

Unit Price

SCREW, TRUSS TAP.

977075001200 977075001200

1,95 $

Unit Price
