CAMSHAFT / TIMING CHAIN

OIL PUMP FOR YAMAHA XTE 2000

INTAKE

POMPE A HUILE COMPLET

1VJ133000200 1VJ133000200

Not available

O-RING (2H7)

932101336100 932101336100

5,17 $

Unit Price

BOLT, SOCKET

913170603500 913170603500

4,88 $

Unit Price

GEAR, PUMP DRIVEN

3AJ133250000 3AJ133250000

39,72 $

Unit Price

CIRCLIP(24H)

990091140000 990091140000

4,24 $

Unit Price

STRAINER COMP.

5Y1W13430000

5Y1Y134C0000

40,05 $

Unit Price

SEAL, OIL STRAINER

4DW134150000 4DW134150000

4,41 $

Unit Price

SCREW, PAN HEAD(3TJ)

985070601600 985070601600

2,29 $

Unit Price

COVER, CAP 2

5Y1154270100

5Y1154271000

9,61 $

Unit Price

SCREW, PAN HEAD(3TJ)

985070601600 985070601600

2,29 $

Unit Price

PLUG, STRAIGHT SCREW(3FA)

903401413200 903401413200

8,37 $

Unit Price

JOINT, COUVERCLE DE POMPE

3SX133290000 3SX133290000

Not available

GASKET

214111980100 214111980100

3,98 $

Unit Price

ELEMENT ASSY, OIL CLEANER

4X7134400100

4X7134409000

15,43 $

Unit Price

COUVERCLE, ELEMENT A HUILE

4PT134470000 4PT134470000

Not available

O-RING (583 OIL CLEANER)

932106429700 932106429700

5,87 $

Unit Price

O-RING (583 OIL DRAIN BOLT)

932100713500 932100713500

5,70 $

Unit Price

BOLT (583 OIL DRAIN)

901090641900 901090641900

9,22 $

Unit Price

BOLT, SOCKET

913170608000 913170608000

5,49 $

Unit Price

SCREW (583)

901490511000 901490511000

2,61 $

Unit Price

GASKET (583)

904300512600 904300512600

7,43 $

Unit Price

PIPE, DELIVERY 1

3AJ131610100 3AJ131610100

79,02 $

Unit Price

BOLT, UNION(3AJ)

904010813300 904010813300

12,69 $

Unit Price

GASKET(3AJ)

904300820400 904300820400

3,58 $

Unit Price

SEAT, CHECK BALL

583131130000 583131130000

15,55 $

Unit Price

BALL

935030800700 935030800700

1,68 $

Unit Price

SPRING, COMPRESSION(1VJ)

90501043E000 90501043E000

2,38 $

Unit Price

DURITE A HUILE

3TB134640000 3TB134640000

Not available

O-RING (371)

93210100A900

932101019700

9,09 $

Unit Price

BOLT, SOCKET

913170601600 913170601600

3,51 $

Unit Price

HOSE CLAMP ASSY(64X)

904502201700

9045022M1400

22,33 $

Unit Price

DURITE A HUILE

4PT134650000 4PT134650000

Not available

O-RING (341)

932101517100 932101517100

7,71 $

Unit Price

BOLT, SOCKET

913170601600 913170601600

3,51 $

Unit Price

HOSE CLAMP ASSY(64X)

904502201700

9045022M1400

22,33 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

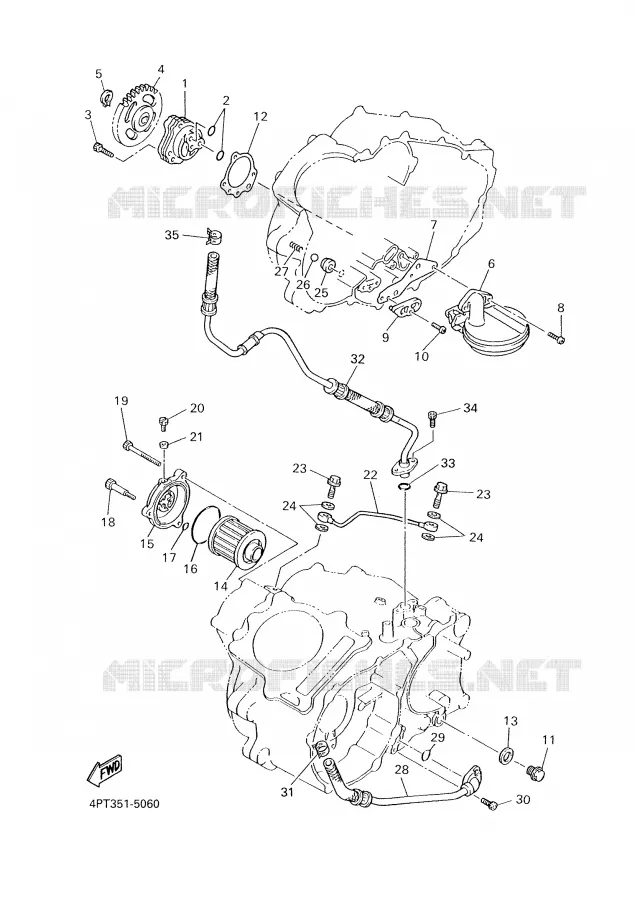

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PUMP of your Yamaha XT500E of 2000. Let us know if you have any questions.

Select your Yamaha XTE model from 2000
