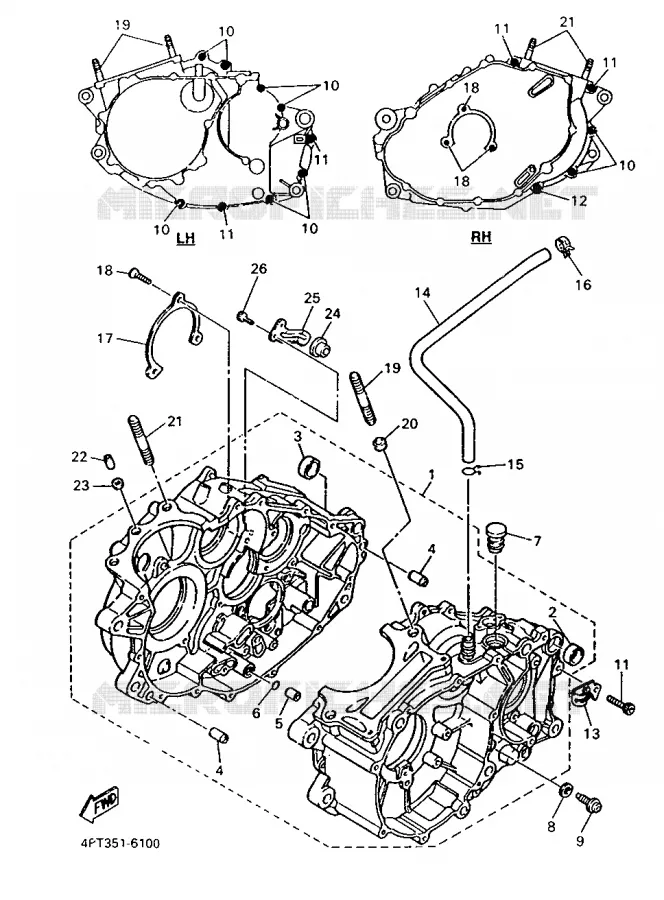

CRANKCASE FOR YAMAHA XTE 1996

COVER - ENGINE 1

CARTER DE MOTEUR COMPLET

4SM151001000 4SM151001000

Not available

COLLAR

903871778300

903871700900

19,29 $

Unit Price

COLLAR

903871201600 903871201600

14,14 $

Unit Price

PIN, DOWEL

995101201600

995301201600

6,78 $

Unit Price

PIN, DOWEL(3XW)

995100801600

918081602300

4,63 $

Unit Price

O-RING (583 OIL DRAIN BOLT)

932100713500 932100713500

5,70 $

Unit Price

PLOT BORGNE

3YF151670000 3YF151670000

Not available

WASHER, PLATE 3411117500

902010808700 902010808700

5,86 $

Unit Price

SCREW 425163430000

901490806700 901490806700

4,72 $

Unit Price

BOLT, HEXAGON SOCKET HEAD(1VJ)

913170603000

901100613800

5,60 $

Unit Price

BOLT, SOCKET

913170606000 913170606000

4,53 $

Unit Price

BOLT, SOCKET

913170604500 913170604500

5,20 $

Unit Price

BRIDE

904650834400 904650834400

Not available

PIPE, BREATHER 1

3TB111660000 3TB111660000

22,79 $

Unit Price

CLIP (371)

904671401500 904671401500

6,72 $

Unit Price

CLIP(3TB)

904671712800 904671712800

3,73 $

Unit Price

BEARING COVER PLATE

5Y1153830000 5Y1153830000

12,37 $

Unit Price

SCREW, FLAT

987070601200 987070601200

2,10 $

Unit Price

BOLT, STUD(1JK)

901161050600 901161050600

13,86 $

Unit Price

PIN, DOWEL

995301401600 995301401600

8,50 $

Unit Price

BOLT, STUD (1W4)

901161026300 901161026300

5,70 $

Unit Price

PIN, DOWEL(3XW)

995100801600

918081602300

4,63 $

Unit Price

GASKET (5Y1)

904300817800 904300817800

6,86 $

Unit Price

PLUG, BLIND

3Y6151670000 3Y6151670000

11,07 $

Unit Price

PLAQUE BUTEE

3Y6151440000 3Y6151440000

Not available

BOLT, HEXAGON

970170601600 970170601600

2,42 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Yamaha XT500E of 1996. Let us know if you have any questions.
