TRANSMISSION

CROSS SHAFT FOR YAMAHA VIRAGO 1996

GEAR SHIFT SELECTOR DRUM / FORKS

PINION SET

22UY17540000 22UY17540000

454,24 $

Unit Price

BEARING (22U)

933062071100 933062071100

80,41 $

Unit Price

SHIM, THRUST

4H7175370020 4H7175370020

5,56 $

Unit Price

THRUST SHIM

4H7175370030 4H7175370030

5,58 $

Unit Price

THRUST SHIM

4H7175370040 4H7175370040

5,58 $

Unit Price

NUT (22U)

901791839600 901791839600

11,74 $

Unit Price

MIDDLE DRIVEN SHAFT

22U175530100 22U175530100

181,93 $

Unit Price

HOUSHING COMP

4H7W17521000

4H7W17520000

147,85 $

Unit Price

O-RING (2H7)

932107136000 932107136000

16,40 $

Unit Price

OIL SEAL (4H7)

931013509700 931013509700

24,98 $

Unit Price

YOKE, JOINT

22U175560000 22U175560000

111,34 $

Unit Price

WASHER, PLATE (1J7)

902011463300 902011463300

7,77 $

Unit Price

NUT, SELF-LOCKING (1J7)

901851407000 901851407000

14,67 $

Unit Price

CAM, DRIVEN

22U175270000

22U175270100

53,53 $

Unit Price

SPRING, COMPRESSION (22U)

905016071600 905016071600

32,52 $

Unit Price

HOLDER

22U175240000 22U175240000

20,03 $

Unit Price

WASHER, THRUST

3H5175290000 3H5175290000

3,72 $

Unit Price

BEARING (7K2)

933060043500

933060042300

40,17 $

Unit Price

SHIM, PINION

3JB175310000 3JB175310000

20,60 $

Unit Price

SHIM, PINION

3JB175311000 3JB175311000

9,27 $

Unit Price

SHIM, PINION

3JB175312000 3JB175312000

9,27 $

Unit Price

BOLT, FLANGE(6TA)

958270803000

958170803000

4,16 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

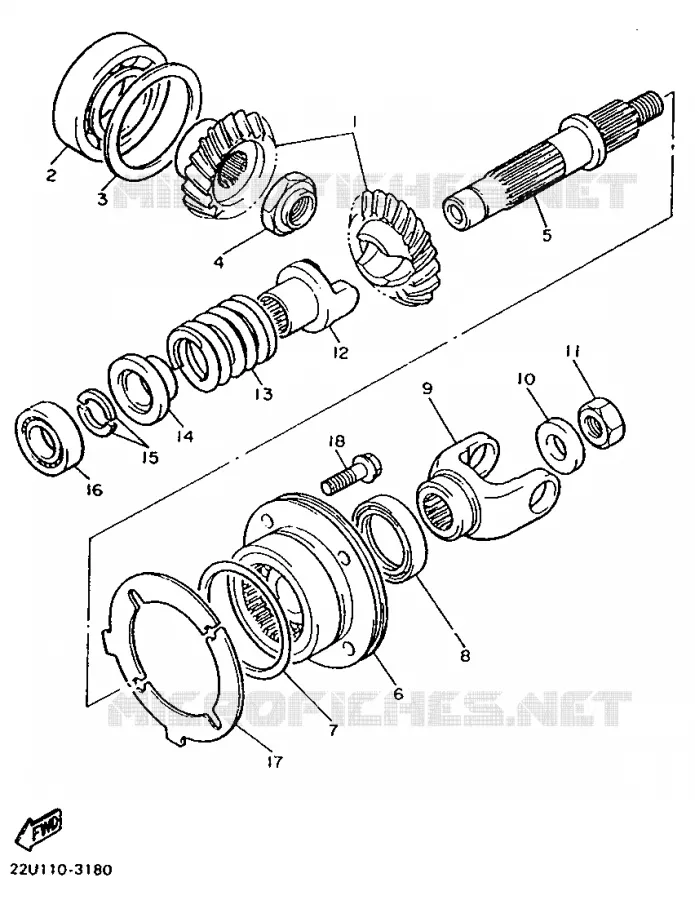

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CROSS SHAFT of your Yamaha XV500 of 1996. Let us know if you have any questions.
