FRONT MASTER CYLINDER

STAND / FOOTREST FOR YAMAHA XTZ 1989

REAR BRAKE MASTER CYLINDER

FOOTREST 1

22W274110190 22W274110190

26,62 $

Unit Price

SUPPORT, REPOSE-PIEDS 1

34L2741200R4 34L2741200R4

Not available

SPRING, TORSION (214-27426-00)

905082002300 905082002300

7,77 $

Unit Price

PIN, CLEVIS (2A6)

917010803800 917010803800

3,93 $

Unit Price

PIN, COTTER

914012501500

914902502000

3,93 $

Unit Price

BOLT, FLANGE(3GD)

958211002500

958171002500

7,09 $

Unit Price

FOOTREST 2

22W274210190 22W274210190

28,65 $

Unit Price

SUPPORT, REPOSE-PIEDS 2

2KF2742200R4 2KF2742200R4

Not available

SPRING, TORSION (214-27426-00)

905082002300 905082002300

7,77 $

Unit Price

PIN, CLEVIS (2A6)

917010803800 917010803800

3,93 $

Unit Price

PIN, COTTER

914012501500

914902502000

3,93 $

Unit Price

BOLT, FLANGE(3GD)

958211002500

958171002500

7,09 $

Unit Price

BEQUILLE, LATERALE

3AJ2731100R4 3AJ2731100R4

Not available

FLANGE BOLT

90109124A700

901051261600

13,96 $

Unit Price

NUT, SELF LOCKING (23X)

901851211900 901851211900

11,34 $

Unit Price

LINK, SIDE STAND

5Y1273150000 5Y1273150000

5,83 $

Unit Price

RESSORT, TENSION

905073202000 905073202000

Not available

ETRIER 4

51Y2741L0000 51Y2741L0000

Not available

BOLT (3LD)

90109084E100

90109087F100

3,73 $

Unit Price

ETRIER 5

2KF2742L0000 2KF2742L0000

BOLT (3LD)

90109084E100

90109087F100

3,73 $

Unit Price

FOOTREST, REAR 1

120274310000

2GV274310000

18,34 $

Unit Price

RONDELLE, SPECIALE

2KF274370000 2KF274370000

Not available

COVER, REAR FOOTREST

120274330000 120274330000

12,58 $

Unit Price

WASHER, PLATE (888)

902012027900 902012027900

1,68 $

Unit Price

SPRING, COMPRESSION (29L)

905011676100 905011676100

2,06 $

Unit Price

PIN, CLEVIS (1M1)

917010604200 917010604200

5,41 $

Unit Price

YBS66-6 WASHER, PLAIN

929010620000

929900620000

1,68 $

Unit Price

COTTER PIN

914012001500

914012002000

3,75 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

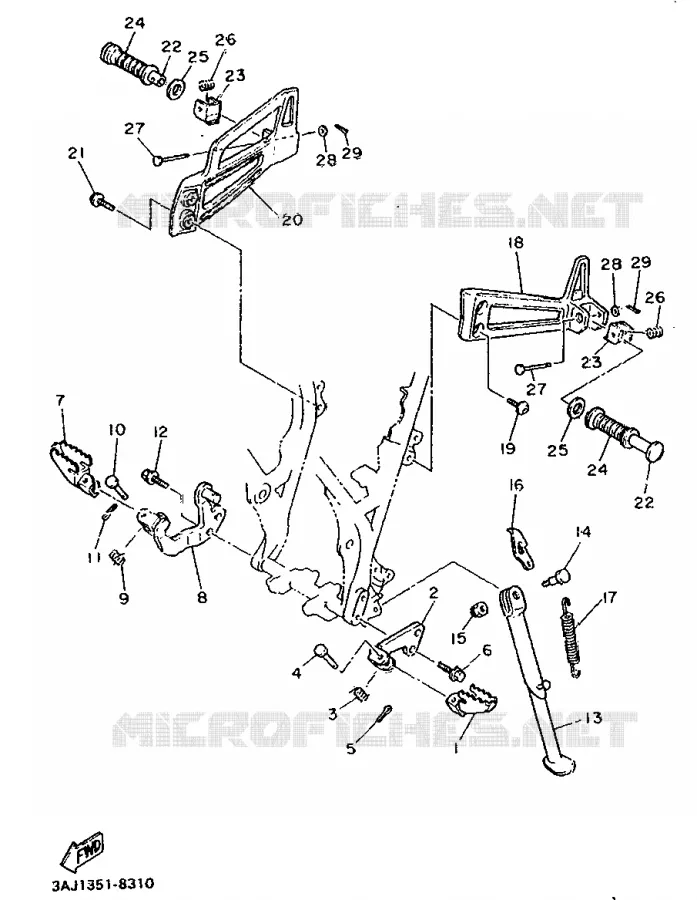

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STAND / FOOTREST of your Yamaha XT500Z of 1989. Let us know if you have any questions.
