CAMSHAFT / TIMING CHAIN

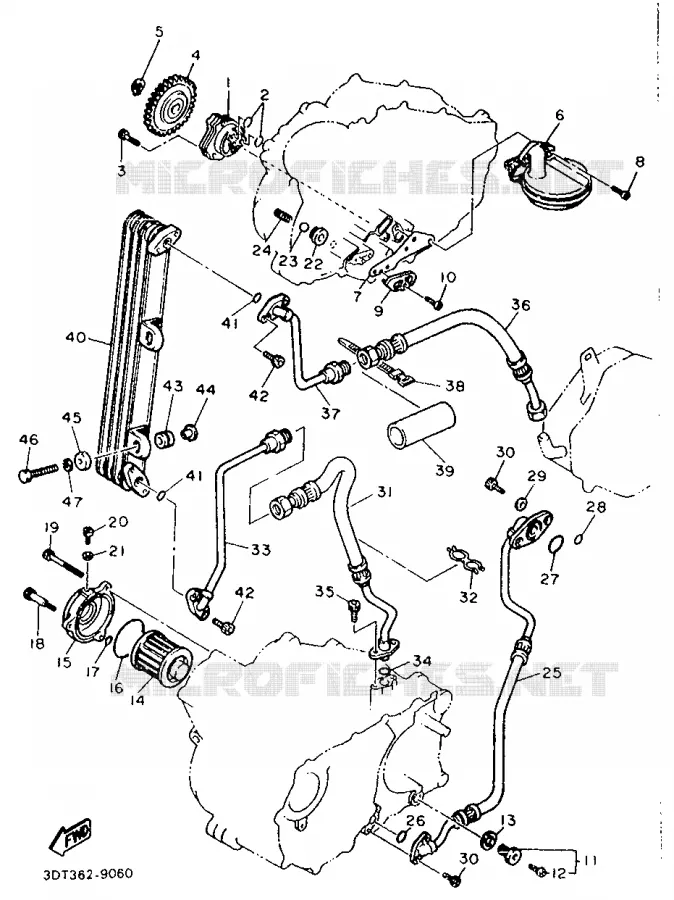

OIL PUMP FOR YAMAHA XTZ 1989

INTAKE

POMPE A HUILE COMPLET

1VJ133000100 1VJ133000100

Not available

O-RING (2H7)

932101336100 932101336100

5,17 $

Unit Price

BOLT, SOCKET

913160603500

913170603500

4,88 $

Unit Price

GEAR, PUMP DRIVEN

3AJ133250000 3AJ133250000

39,72 $

Unit Price

CIRCLIP(24H)

990091140000 990091140000

4,24 $

Unit Price

STRAINER COMP.

5Y1W13430000

5Y1Y134C0000

40,05 $

Unit Price

SEAL, OIL STRAINER

5Y1134150100

4DW134150000

4,41 $

Unit Price

SCREW, PAN

925010601400

985070601400

2,10 $

Unit Price

COVER, CAP 2

5Y1154270100

5Y1154271000

9,61 $

Unit Price

SCREW, PAN

925010601400

985070601400

2,10 $

Unit Price

PLUG, STRAIGHT SCREW(3FA)

11H134550000

903401413200

8,37 $

Unit Price

SCREW, BIND(2TV)

989010600800

989800600800

1,68 $

Unit Price

GASKET

214111980100 214111980100

3,98 $

Unit Price

ELEMENT ASSY, OIL CLEANER

4X7134409000 4X7134409000

15,43 $

Unit Price

COVER, OIL ELEMENT

2WK134470000 2WK134470000

33,07 $

Unit Price

O-RING (583 OIL CLEANER)

932106429700 932106429700

5,87 $

Unit Price

O-RING (583 OIL DRAIN BOLT)

932100713500 932100713500

5,70 $

Unit Price

BOLT (583 OIL DRAIN)

901090641900 901090641900

9,22 $

Unit Price

BOLT, SOCKET

913160608000

913170608000

5,49 $

Unit Price

SCREW (583)

901490511000 901490511000

2,61 $

Unit Price

GASKET (583)

904300512600 904300512600

7,43 $

Unit Price

SEAT, CHECK BALL

583131130000 583131130000

15,55 $

Unit Price

BALL

935030800700 935030800700

1,68 $

Unit Price

SPRING, COMPRESSION(1VJ)

90501043E000 90501043E000

2,38 $

Unit Price

DURITE A HUILE

1VJ134640100 1VJ134640100

Not available

O-RING (371)

932101019700 932101019700

9,09 $

Unit Price

O-RING

932102229800 932102229800

10,50 $

Unit Price

O-RING (1J7)

932100935000 932100935000

7,71 $

Unit Price

GASKET (4V2)

904300616600 904300616600

3,85 $

Unit Price

BOLT, SOCKET

913160601600

913170601600

3,51 $

Unit Price

DURITE A HUILE

1VJ134650100 1VJ134650100

Not available

CLAMP (34K)

904642006400 904642006400

3,90 $

Unit Price

DURITE A HUILE

3DS134160000 3DS134160000

Not available

O-RING (341)

932101517100 932101517100

7,71 $

Unit Price

BOLT, SOCKET

913160601600

913170601600

3,51 $

Unit Price

DURITE A RADIAT A HUILE

1VJ134660200 1VJ134660200

Not available

DURITE A HUILE

3DS134180000 3DS134180000

Not available

BAND

12R825910000 12R825910000

3,18 $

Unit Price

GUIDE DE DURITE A HUILE

1VJ134880000 1VJ134880000

Not available

RADIATEUR A HUILE COMPLET

3AJ134700000 3AJ134700000

Not available

JOINT TORIQUE

932101056000 932101056000

Not available

BOLT, SOCKET

913160601200

913170601200

5,10 $

Unit Price

GROMMET

904801523500 904801523500

7,60 $

Unit Price

COLLAR(36Y)

90387067K800 90387067K800

6,15 $

Unit Price

WASHER

902090617400

902090601200

0,95 $

Unit Price

BOLT, HEXAGON

970010602500

970170602500

2,42 $

Unit Price

WASHER(6A1)

929060610000

929950610000

1,46 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PUMP of your Yamaha XT500Z of 1989. Let us know if you have any questions.
