SIDE COVER - OIL TANK

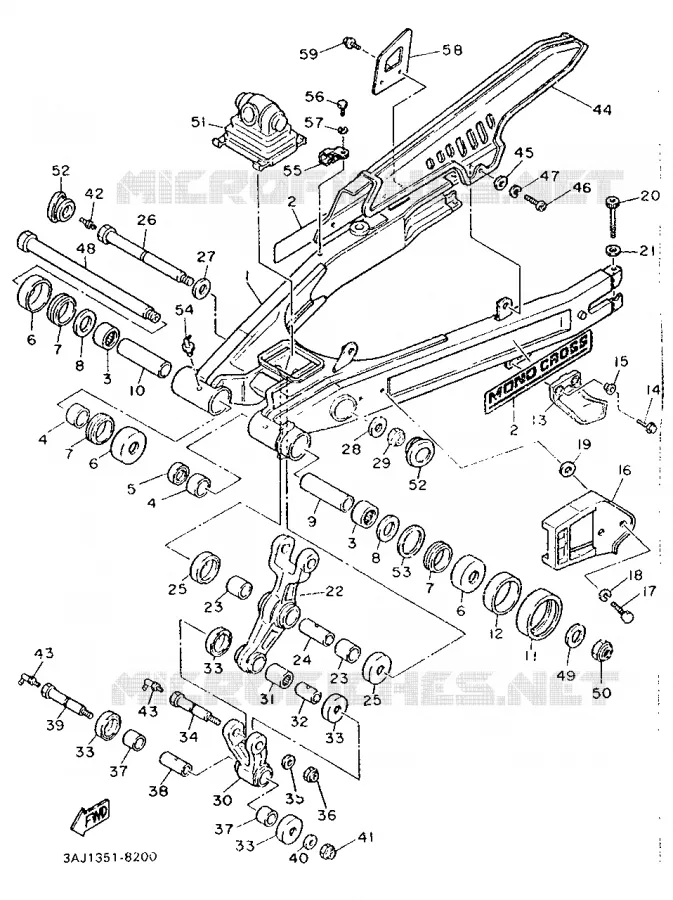

SWINGARM FOR YAMAHA XTZ 1988

REAR SHOCK ABSORBER

BRAS ARRIERE COMP.

3AJ221100000 3AJ221100000

Not available

EMBLEME, BRAS ARRIERE

3AJ2218A0000 3AJ2218A0000

Not available

EMBLEME, BRAS ARRIERE

3AJ2218A2000 3AJ2218A2000

Not available

BEARING, CYLINDRICAL (23X)

933173223100 933173223100

42,70 $

Unit Price

BUSH, SOLID (23X)

903802211100 903802211100

22,47 $

Unit Price

OIL SEAL (23X)

931062201900 931062201900

14,01 $

Unit Price

COVER, THRUST

2K6221280100 2K6221280100

31,11 $

Unit Price

OIL SEAL (35X41.5X8-483)

931083500400 931083500400

17,66 $

Unit Price

WASHER

90201244A800

3YF221490000

7,18 $

Unit Price

BUSH 1

1VJ221230000 1VJ221230000

21,40 $

Unit Price

SEAL, GUARD

5X6221511000 5X6221511000

18,89 $

Unit Price

SEAL, GUARD

5X6221511000 5X6221511000

18,89 $

Unit Price

COLLAR (5X6)

90387440G300 90387440G300

11,59 $

Unit Price

SUPPORT, CHAIN

38V221990000 38V221990000

40,16 $

Unit Price

BOLT, FLANGE

958010602000

958170602000

3,91 $

Unit Price

COLLAR (3L6)

903870673700 903870673700

7,69 $

Unit Price

PROTECTOR, CHAIN

2KF221470000 2KF221470000

61,28 $

Unit Price

BOLT, HEXAGON

970060601200

970170601200

2,48 $

Unit Price

WASHER(6A1)

929060610000

929950610000

1,46 $

Unit Price

WASHER (3R8)

902090622300

902090618700

4,02 $

Unit Price

BOLT, SOCKET

913110606000

913140606000

3,43 $

Unit Price

WASHER(6TA)

929010660000

929070660000

1,83 $

Unit Price

BRAS DE LIAISON

34L2217A0000 34L2217A0000

Not available

BUSH (30X)

903862012000 903862012000

23,91 $

Unit Price

DOUILLE, SOLIDE

903801409500 903801409500

Not available

COVER, THRUST 1

34L221280000 34L221280000

20,81 $

Unit Price

BOLT, WASHER BASED(3RW)

90109120A300

901051266800

19,68 $

Unit Price

RONDELLE, PLATE

90201140G900 90201140G900

Not available

WASHER, PLATE (8K2)

90201120A500 90201120A500

5,48 $

Unit Price

NUT, SELF LOCKING (23X)

901851211900 901851211900

11,34 $

Unit Price

BIELLE 1

34L2217F0000 34L2217F0000

Not available

BEARING, CYLINDRICAL (23X)

933153173200 933153173200

44,85 $

Unit Price

COLLAR (23X)

90387121H100 90387121H100

20,85 $

Unit Price

COVER, THRUST 2

23X221290000

55K221290000

24,29 $

Unit Price

BOULON

901091075900 901091075900

Not available

WASHER, PLATE(6TC)

90201100E900

9020110M0500

7,82 $

Unit Price

NUT, SELF LOCKING (23X)

901851012000 901851012000

6,52 $

Unit Price

BUSH (34L)

903862012300 903862012300

18,49 $

Unit Price

BUSH (34L)

903862012300 903862012300

18,49 $

Unit Price

BOLT(2VG)

901091076000

90109102G800

21,01 $

Unit Price

WASHER (7A9)

90201100F700 90201100F700

7,77 $

Unit Price

NUT, U

901851003700 901851003700

9,07 $

Unit Price

NIPPLE, GREASE

937000600500 937000600500

13,35 $

Unit Price

NIPPLE, GREASE(6A1)

937000600400

9370006M0300

11,55 $

Unit Price

CHAIN CASE

34L223110100

Not available

WASHER, PLATE (4L0)

90201062A800 90201062A800

1,68 $

Unit Price

SCREW, PAN HEAD(3TJ)

925060601600

985070601600

2,29 $

Unit Price

WASHER(6A1)

929060610000

929950610000

1,46 $

Unit Price

SHAFT, PIVOT

1VJ221410000 1VJ221410000

58,37 $

Unit Price

RONDELLE

902011523800 902011523800

Not available

NUT, SELF-LOCKING (1J7)

901851407000 901851407000

14,67 $

Unit Price

SOUFFLET, CAOUTCHOUC

34L221890000 34L221890000

Not available

CAP

34L221170000 34L221170000

16,36 $

Unit Price

WASHER, PLATE (5Y1)

90201251F600 90201251F600

2,78 $

Unit Price

NIPPLE, GREASE

937000600500 937000600500

13,35 $

Unit Price

BRIDE

904611211000 904611211000

Not available

BOLT (661)

970010601200

970130601200

5,54 $

Unit Price

WASHER(6A1)

929900610000

929950610000

1,46 $

Unit Price

PROTECTEUR

2KF274910000 2KF274910000

Not available

BOLT, FLANGE

958010601000

958120601000

2,35 $

Unit Price
