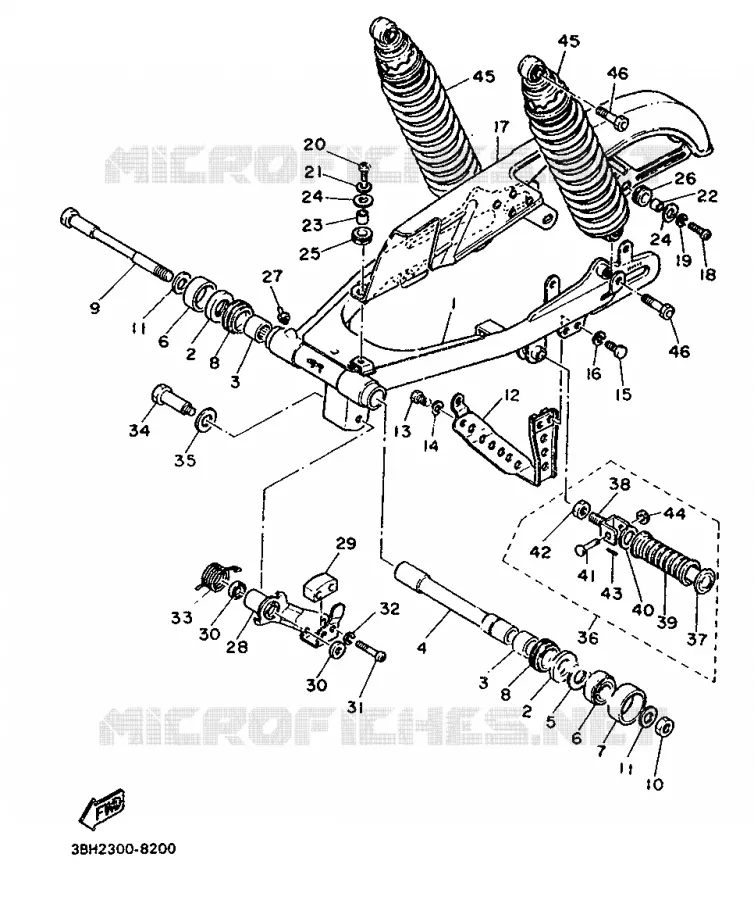

SIDE COVER - OIL TANK

SWINGARM FOR YAMAHA XT 1988

STEERING

BRAS ARRIERE COMP.

3H7221100033 3H7221100033

Not available

BEARING, THRUST

933422220500 933422220500

76,43 $

Unit Price

BRG, CYL-CAL ROLLER 28.5G NT

933172220800 933172220800

43,95 $

Unit Price

BAGUE

483221240000 483221240000

Not available

WASHER, PLATE

648455330003

902012228404

0,53 $

Unit Price

COVER, THRUST 2

2K8221290000 2K8221290000

20,81 $

Unit Price

SEAL, GUARD

431221510300 431221510300

21,01 $

Unit Price

JOINT SPY

931083500800 931083500800

Not available

PIVOT SHAFT

583221410100 583221410100

34,00 $

Unit Price

NUT, U (6TD)

956011610000

956171610000

27,30 $

Unit Price

WASHER (517 CLUTCH)

902081601900 902081601900

3,75 $

Unit Price

PROTECTEUR, CHAINE

1U6223180033 1U6223180033

Not available

BOLT, HEXAGON

973010801600

970130801600

2,66 $

Unit Price

YBS67-8 WASHER, SPRING

929900810000 929900810000

1,68 $

Unit Price

BOLT, HEXAGON DEEP RECESS

973010601600

97D950601600

1,96 $

Unit Price

WASHER(6A1)

929900610000

929950610000

1,46 $

Unit Price

CHAIN CASE

1U6223110033

1U6223110000

87,52 $

Unit Price

SCREW, PAN HEAD(6B0)

985010501600

978850501600

6,78 $

Unit Price

YBS67-5 WASHER, SPRING

929010510000

929900510000

1,68 $

Unit Price

SCREW PANHEAD (669)

985010501800

985800501800

1,67 $

Unit Price

YBS67-5 WASHER, SPRING

929010510000

929900510000

1,68 $

Unit Price

SPACER 214223170000

905600500100 905600500100

3,38 $

Unit Price

COLLAR (3L6)

903870500900

903870676100

6,15 $

Unit Price

WASHER, PLATE

902010640700

902010674700

5,53 $

Unit Price

PASSE-FIL

904801218800 904801218800

Not available

GROMMET (1U6)

904800821600 904800821600

6,39 $

Unit Price

NIPPLE, GREASE(6A1)

937000600400

9370006M0300

11,55 $

Unit Price

BRAS, TENDEUR

2Y0221790000 2Y0221790000

Not available

TENSIONER

2N0221780000 2N0221780000

22,59 $

Unit Price

OIL SEAL (2K8)

931041404400

931091402100

15,10 $

Unit Price

SCREW, PANHEAD (EG9)

985010504000

985800554000

4,31 $

Unit Price

YBS67-5 WASHER, SPRING

929010510000

929900510000

1,68 $

Unit Price

RESSORT, TORSION

905083538700 905083538700

Not available

BOLT (1J4)

901091053300

901091048300

9,85 $

Unit Price

WASHER, PLATE (3X3)

902011421800

902011579700

6,72 $

Unit Price

REAR FOOTREST ASSY

1E6274300000

120274300200

19,63 $

Unit Price

FOOTREST, REAR 1

120274310000

2GV274310000

18,34 $

Unit Price

BRACKET, FOOTREST

120274320200 120274320200

6,03 $

Unit Price

COVER, REAR FOOTREST

120274330000 120274330000

12,58 $

Unit Price

WASHER, PLATE (888)

902012027900 902012027900

1,68 $

Unit Price

PIN WITH HOLE (1E6

902400605200 902400605200

2,95 $

Unit Price

NUT, HEXAGON SMALL

953011270000

953171270000

4,42 $

Unit Price

COTTER PIN

914012001500

914012002000

3,75 $

Unit Price

WASHER, PLATE(J41)

90201062G300

902010604900

3,94 $

Unit Price

AMORTISSEUR, ARRIERE

3BH222100000 3BH222100000

Not available

BOLT (583 REAR CUSHION)

901091042000 901091042000

4,95 $

Unit Price
