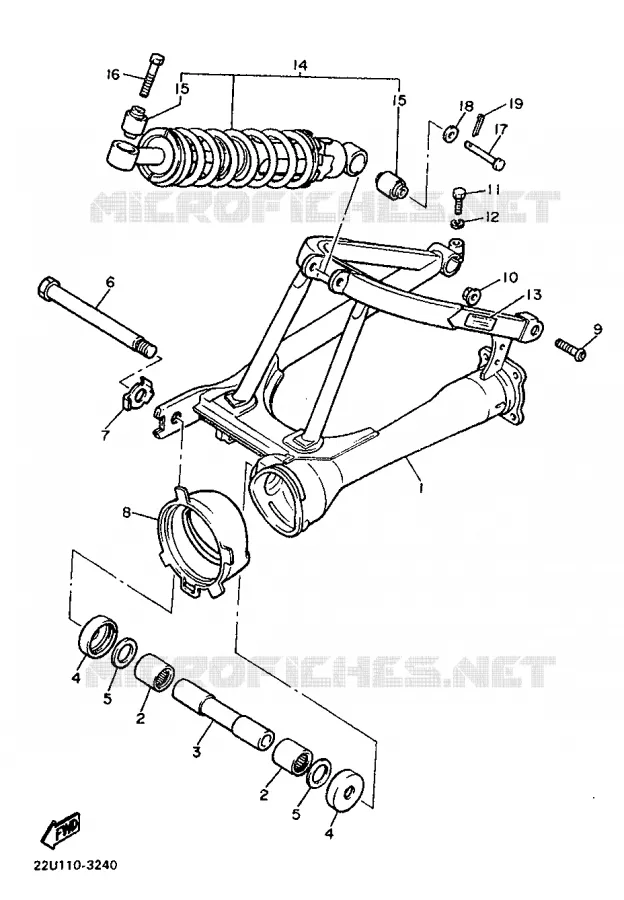

SWINGARM / SHOCK ABSORBER FOR YAMAHA VIRAGO 1987

FINAL DRIVE SHAFT / GEAR COUPLING

BRAS ARRIERE COMP.

22U221100035 22U221100035

Not available

BEARING (4X7)

933203240300 933203240300

50,21 $

Unit Price

BUSH 2

4X7221240000 4X7221240000

41,89 $

Unit Price

COVER, THRUST 2

4X7221290000 4X7221290000

23,46 $

Unit Price

WASHER

90201244A800

3YF221490000

7,18 $

Unit Price

WASHER, PLATE(2VM)

90201244A900

90201247L200

10,40 $

Unit Price

RONDELLE, PLATE (2.15T)

90201245A000 90201245A000

Not available

PIVOT SHAFT

4X7221410000 4X7221410000

41,07 $

Unit Price

RONDELLE-FREIN

902151618100 902151618100

Not available

SOUFFLET, CAOUTCHOUC

22U221890000 22U221890000

Not available

SCREW, PAN HEAD (22U)

901571004300 901571004300

14,94 $

Unit Price

NUT(4KG)

901791024700

901791065800

3,49 $

Unit Price

BOLT

973010803500

970130803500

5,65 $

Unit Price

YBS67-8 WASHER, SPRING

929010810000

929900810000

1,68 $

Unit Price

ETIQUETTE RECOM. D HUILE

4H7461811000 4H7461811000

Not available

SHOCK ABSORBER ASS

22U222100000 22U222100000

204,01 $

Unit Price

BUSH, REAR SHOCK ABSORBER

1W1222160000

1YW222160000

52,39 $

Unit Price

BOLT (4X7)

901011249800 901011249800

10,80 $

Unit Price

BOULON, A GOUPILLE

902401209100 902401209100

Not available

RONDELLE

902091324700 902091324700

Not available

PIN, COTTER

914013002500 914013002500

5,77 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM / SHOCK ABSORBER of your Yamaha XV500 of 1987. Let us know if you have any questions.
