STEERING

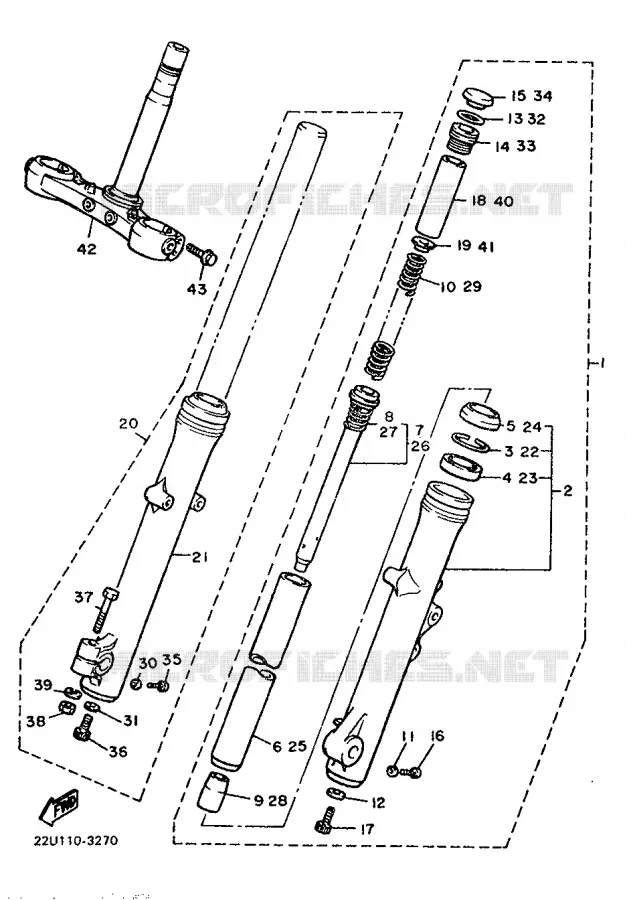

FRONT FORK FOR YAMAHA VIRAGO 1987

FUEL TANK

FRONT FORK L

22U231020100 22U231020100

307,65 $

Unit Price

.BAS DE FOURCHE BAS DE FOURCHE

22U231260138 22U231260138

Not available

RING, SNAP

4A1231560000 4A1231560000

10,71 $

Unit Price

OIL SEAL

15R231450000

4ES231450000

23,52 $

Unit Price

SEAL, DUST

15R231440000

33M231440000

17,63 $

Unit Price

.TUBE DE FOURCHE NUE TUBE DE FOURCHE NUE

22U231100100 22U231100100

Not available

.CYLINDRE DE FOURCHE AV CYLINDRE DE FOURCHE AV

22U231700000 22U231700000

Not available

SPRING, SUB

50923151L000 50923151L000

8,59 $

Unit Price

SPINDLE, TAPER

3R823173L000

3R623173L000

31,09 $

Unit Price

.RESSORT, FOURCHE AVANT RESSORT, FOURCHE AVANT

22U231410000 22U231410000

Not available

GASKET, DRAIN PLUG

122231290000 122231290000

4,41 $

Unit Price

GASKET

50923158L000 50923158L000

10,27 $

Unit Price

GASKET

240231140000 240231140000

9,81 $

Unit Price

.BOULON, CHAPEAU BOULON, CHAPEAU

11H231110000 11H231110000

Not available

CAP, FRONT FORK

16G231680000

26H231680000

16,52 $

Unit Price

.PLOT, VIDANGE PLOT, VIDANGE

16G231190100 16G231190100

Not available

BOLT, HEXAGON SOCKET HEAD

278231815000

3D8231810000

8,83 $

Unit Price

SPACER

22U231180100 22U231180100

11,07 $

Unit Price

SPRING, UPPER SEAT

583231420000 583231420000

8,03 $

Unit Price

FRONT FORK R

22U231030100 22U231030100

373,49 $

Unit Price

OUTER TUBE 2

22U231360138 22U231360138

291,75 $

Unit Price

RING, SNAP

4A1231560000 4A1231560000

10,71 $

Unit Price

OIL SEAL

15R231450000

4ES231450000

23,52 $

Unit Price

SEAL, DUST

15R231440000

33M231440000

17,63 $

Unit Price

.TUBE DE FOURCHE NUE TUBE DE FOURCHE NUE

22U231100100 22U231100100

Not available

.CYLINDRE DE FOURCHE AV CYLINDRE DE FOURCHE AV

22U231700000 22U231700000

Not available

SPRING, SUB

50923151L000 50923151L000

8,59 $

Unit Price

SPINDLE, TAPER

3R823173L000

3R623173L000

31,09 $

Unit Price

.RESSORT, FOURCHE AVANT RESSORT, FOURCHE AVANT

22U231410000 22U231410000

Not available

GASKET, DRAIN PLUG

122231290000 122231290000

4,41 $

Unit Price

GASKET

50923158L000 50923158L000

10,27 $

Unit Price

GASKET

240231140000 240231140000

9,81 $

Unit Price

.BOULON, CHAPEAU BOULON, CHAPEAU

11H231110000 11H231110000

Not available

CAP, FRONT FORK

16G231680000

26H231680000

16,52 $

Unit Price

SCREW, PAN HEAD(3XP)

122231190100

985170400600

6,22 $

Unit Price

.BOULON, TETE HEXAGONALE CREUSE BOULON, TETE HEXAGONALE CREUSE

278231810000 278231810000

Not available

BOLT

973210804500

970130804500

9,09 $

Unit Price

NUT(6L2)

953110860000

953330860000

3,75 $

Unit Price

YBS67-8 WASHER, SPRING

929010810000

929900810000

1,68 $

Unit Price

SPACER

22U231180100 22U231180100

11,07 $

Unit Price

SPRING, UPPER SEAT

583231420000 583231420000

8,03 $

Unit Price

UNDER BRACKET

26R233403033 26R233403033

325,24 $

Unit Price

BOLT, AXLE HOLDER

901190801200

18G231280000

8,84 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Yamaha XV500 of 1987. Let us know if you have any questions.
