TRANSMISSION

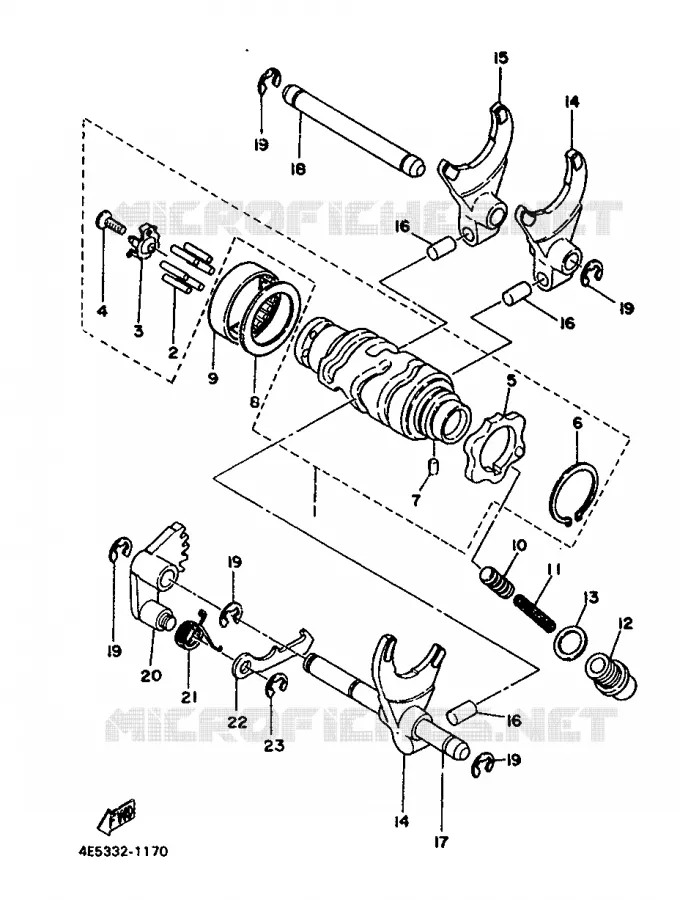

GEAR SHIFT SELECTOR DRUM / FORKS FOR YAMAHA XT 1986

GEAR SHIFT LEVER

SHIFT CAM ASSY

2J2185400000 2J2185400000

127,66 $

Unit Price

PIN, DOWEL (363)

936041810000 936041810000

4,39 $

Unit Price

PLATE, SIDE

434185610000 434185610000

3,72 $

Unit Price

SCREW, FLAT

987010501200

987070501200

2,10 $

Unit Price

PLATE STOPPER SET

2J2181410000

2J2W18140000

21,95 $

Unit Price

CIRCLIP(4A6)

990093040000 990093040000

10,11 $

Unit Price

PIN, DOWEL (278)

936040807100 936040807100

5,10 $

Unit Price

WASHER, PLATE (2J2)

902013267300 902013267300

6,11 $

Unit Price

BRG, CYL-CAL ROLLER 18G KY

933152320800 933152320800

18,87 $

Unit Price

STOPPER, CAM

1J7185470000 1J7185470000

12,64 $

Unit Price

SPRING COMPRESSION278185570000

905011006200 905011006200

2,63 $

Unit Price

BOLT

901491403100

901091400200

13,33 $

Unit Price

WASHER, PROTECTOR

137153530000

4F4147660000

16,14 $

Unit Price

FORK, SHIFT

364185110000 364185110000

61,25 $

Unit Price

FORK, SHIFT 1

363185110000 363185110000

59,00 $

Unit Price

PIN 2781855200

902500801700 902500801700

3,10 $

Unit Price

SHIFT FORK GUIDE BAR

363185310000 363185310000

20,00 $

Unit Price

BAR, SHIFT FORK GUIDE 2

363185350000 363185350000

18,54 $

Unit Price

CIRCLIP(2R6)

990010860000 990010860000

5,32 $

Unit Price

LEVER, CHANGE 2

434181220000 434181220000

35,92 $

Unit Price

SPRING, TORSION (1M1)

905080833400 905080833400

5,54 $

Unit Price

LEVER, CHANGE 3

498181510300 498181510300

8,72 $

Unit Price

CIRCLIP(6L2)

990010760000

990800760000

1,77 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the GEAR SHIFT SELECTOR DRUM / FORKS of your Yamaha XT500 of 1986. Let us know if you have any questions.
