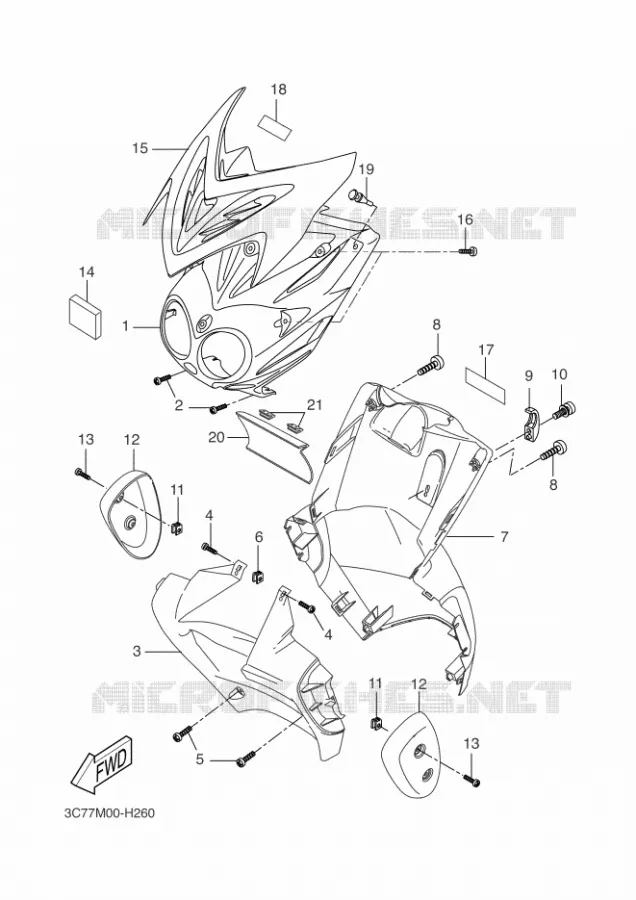

LEG SHIELD FOR YAMAHA STUNT NAKED 2011

IGNITION

Item numbers

CORPS SUPERIEUR AVANT 1

3C7F835G01P8 3C7F835G01P8

Not available

VIS, TETE FRAISEE

9016705X0200 9016705X0200

Not available

CORPS INFERIEUR AVANT 1

5JHF835J00PT 5JHF835J00PT

Not available

VIS, TETE FRAISEE

9016705X0200 9016705X0200

Not available

VIS, TETE FRAISEE

9016705X0100 9016705X0100

Not available

ECROU, RESSORT

9018305X0300 9018305X0300

Not available

PROTEGE-JAMBES 1

5JHF831102PS 5JHF831102PS

Not available

VIS, TETE FRAISEE

9016705X0200 9016705X0200

Not available

PORTE-CASQUE

4SBF13980000 4SBF13980000

Not available

VIS, DE PRESSION

9015406X0200 9015406X0200

Not available

ECROU, RESSORT

9018305X0300 9018305X0300

Not available

AMORTISSEUR

5JHF8371B000 5JHF8371B000

Not available

VIS

9016905X0100 9016905X0100

Not available

AMORTISSEUR

4SBF174X0000 4SBF174X0000

Not available

CORPS SUPERIEUR AVANT 2

3C7F835H00P5 3C7F835H00P5

Not available

VIS, TETE FRAISEE

9016705X0200 9016705X0200

Not available

ETIQUETTE, AVERTISSEMENT

5WWF15680100 5WWF15680100

Not available

EMBLEME

3C7F83151000 3C7F83151000

Not available

AMORTISSEUR

3C7F83720000 3C7F83720000

Not available

PROTECTEUR

3C7F74910000 3C7F74910000

Not available

BRIDE

9046504X0200 9046504X0200

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the LEG SHIELD of your Yamaha EW50N of 2011. Let us know if you have any questions.
