SWINGARM

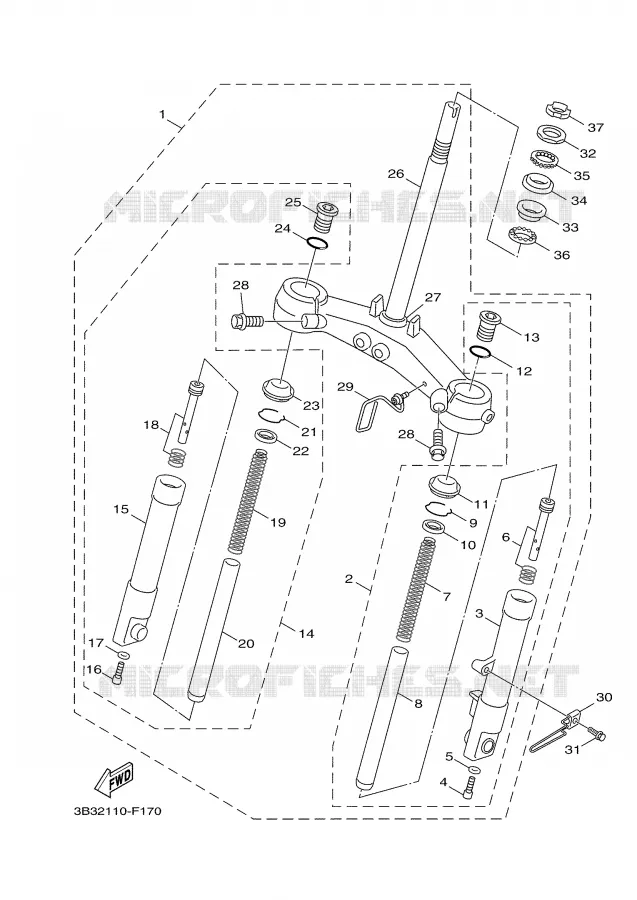

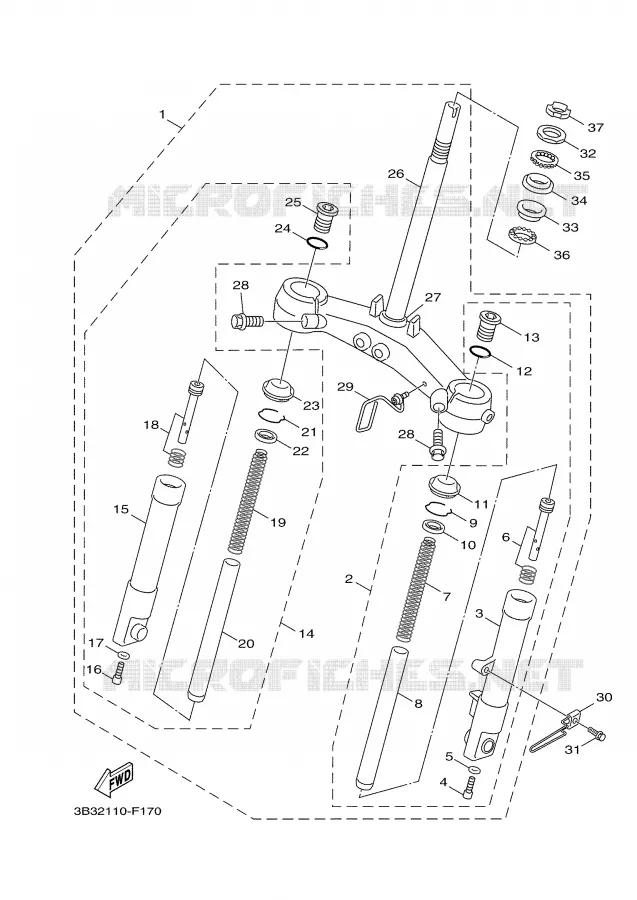

FRONT FORK FOR YAMAHA GIGGLE 2007

FUEL TANK

FOURCHE AVANT COMPLETE

15PF31000000 15PF31000000

Not available

.TUBE EXT.COMP.(G) TUBE EXT.COMP.(G)

15PF31060000 15PF31060000

Not available

OUTER TUBE L

3B3F31261000 3B3F31261000

144,22 $

Unit Price

..BOULON, TETE HEXAGONALE CREU BOULON, TETE HEXAGONALE CREU

13PF31810000 13PF31810000

Not available

GASKET

3GFF31580000 3GFF31580000

1,67 $

Unit Price

CYLINDER COMP.

3B3F31700000 3B3F31700000

20,54 $

Unit Price

..RESSORT, FOURCHE AVANT RESSORT, FOURCHE AVANT

3B3F31410000 3B3F31410000

Not available

INNER TUBE COMP.1

3B3F31100000 3B3F31100000

98,43 $

Unit Price

CLIP, OIL SEAL

3NWF31560000 3NWF31560000

0,92 $

Unit Price

OIL SEAL

5SUF31450000 5SUF31450000

9,33 $

Unit Price

SEAL, STEERING

5SUF34620000 5SUF34620000

3,96 $

Unit Price

O-RING

3GFF31470000 3GFF31470000

0,91 $

Unit Price

..BOULON 2 BOULON 2

13PF33560000 13PF33560000

Not available

.TUBE EXT.COMP.(D) TUBE EXT.COMP.(D)

15PF31070000 15PF31070000

Not available

TUBE, OUTER 2

3B3F31361000 3B3F31361000

143,14 $

Unit Price

..BOULON, TETE HEXAGONALE CREU BOULON, TETE HEXAGONALE CREU

13PF31810000 13PF31810000

Not available

GASKET

3GFF31580000 3GFF31580000

1,67 $

Unit Price

CYLINDER COMP.

3B3F31700000 3B3F31700000

20,54 $

Unit Price

SPRING, FRONT FORK

15PF31410000 15PF31410000

9,81 $

Unit Price

INNER TUBE COMP.1

3B3F31100000 3B3F31100000

98,43 $

Unit Price

CLIP, OIL SEAL

3NWF31560000 3NWF31560000

0,92 $

Unit Price

OIL SEAL

5SUF31450000 5SUF31450000

9,33 $

Unit Price

SEAL, STEERING

5SUF34620000 5SUF34620000

3,96 $

Unit Price

O-RING

3GFF31470000 3GFF31470000

0,91 $

Unit Price

..BOULON 2 BOULON 2

13PF33560000 13PF33560000

Not available

UNDER BRACKET

3B3F33401000

Not available

RACE, BALL 4

22F234140100

BP2234140000

15,76 $

Unit Price

.BOULON 1 BOULON 1

13PF33460000 13PF33460000

Not available

GUIDE, CABLE

3B3F33891000 3B3F33891000

13,96 $

Unit Price

HOLDER, CABLE

3B3F33171000 3B3F33171000

14,79 $

Unit Price

BOLT, FLANGE

958070603000

958170603000

3,91 $

Unit Price

RACE, BALL 1

3KJ234110100 3KJ234110100

23,56 $

Unit Price

RACE, BALL 2

22F234120100

BP2234120000

13,67 $

Unit Price

RACE, BALL 2

2E9234120000

2SA234120000

28,64 $

Unit Price

RETAINER, BALL BEARING

22F2341E0000

BP22341E0000

27,41 $

Unit Price

BALL(4JP)

935053204200 935053204200

10,01 $

Unit Price

NUT, FITTING 2

2E9234540000 2E9234540000

11,09 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
