Displacement

Year

Model

Finish line

Parts catalogue

Parts diagram

INTAKE

CARBURETOR FOR YAMAHA BWS 2002

EXHAUST

CARBURATEUR COMPLET 1

5NT143010000 5NT143010000

Not available

GASKET

1YU141260000 1YU141260000

4,86 $

Unit Price

THROTTLE VALVE SPR

1YU143310000 1YU143310000

Not available

THROTTLE VALVE 1

3KJ143122500 3KJ143122500

25,80 $

Unit Price

GASKET, FLOAT CHAMBER

1YU143840000 1YU143840000

11,59 $

Unit Price

JET, MAIN (# 80)

14T143434000 14T143434000

14,00 $

Unit Price

.GICLEUR, RALENTI GICLEUR, RALENTI

3KJ143532100 3KJ143532100

Not available

CAP

1UV141690000 1UV141690000

22,06 $

Unit Price

SCREW, PAN HEAD (646)

985800501200 985800501200

3,17 $

Unit Price

YBS67-5 WASHER, SPRING

929900510000 929900510000

1,68 $

Unit Price

SCREW, PANHEAD (796)

985800401600 985800401600

0,56 $

Unit Price

YBS67-4 WASHER, SPRING

929900410000 929900410000

1,68 $

Unit Price

PIPE

3AA143490000 3AA143490000

3,72 $

Unit Price

VALVE, NEEDLE

2JA143920000 2JA143920000

37,55 $

Unit Price

FLOAT

1YU143850000 1YU143850000

48,32 $

Unit Price

PIN, FLOAT

14T143860000 14T143860000

5,09 $

Unit Price

SCREW, PAN HEAD(78G)

985800300600 985800300600

5,17 $

Unit Price

AIR SCREW SET

14T141040000 14T141040000

11,92 $

Unit Price

SPRING, PLUNGER

1YU143350000 1YU143350000

Not available

PLUNGER, STARTER

1YU143710000 1YU143710000

Not available

PIPE

1YU141970100 1YU141970100

9,21 $

Unit Price

.JEU DE VIS D ACCELERATION JEU DE VIS D ACCELERATION

3YJ141030000 3YJ141030000

Not available

CABLE ADJUST SCREW

1UV141060000 1UV141060000

73,88 $

Unit Price

AIR SCREW SET

14T141040000 14T141040000

11,92 $

Unit Price

CAP

14T141690000 14T141690000

Not available

.JEU D AIGUILLES JEU D AIGUILLES

4FW1490J0000 4FW1490J0000

Not available

.PUITS D AIGUILLE PUITS D AIGUILLE

3VR143410000 3VR143410000

Not available

COVER, CARBURETOR 1

1YU142830100 1YU142830100

19,97 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

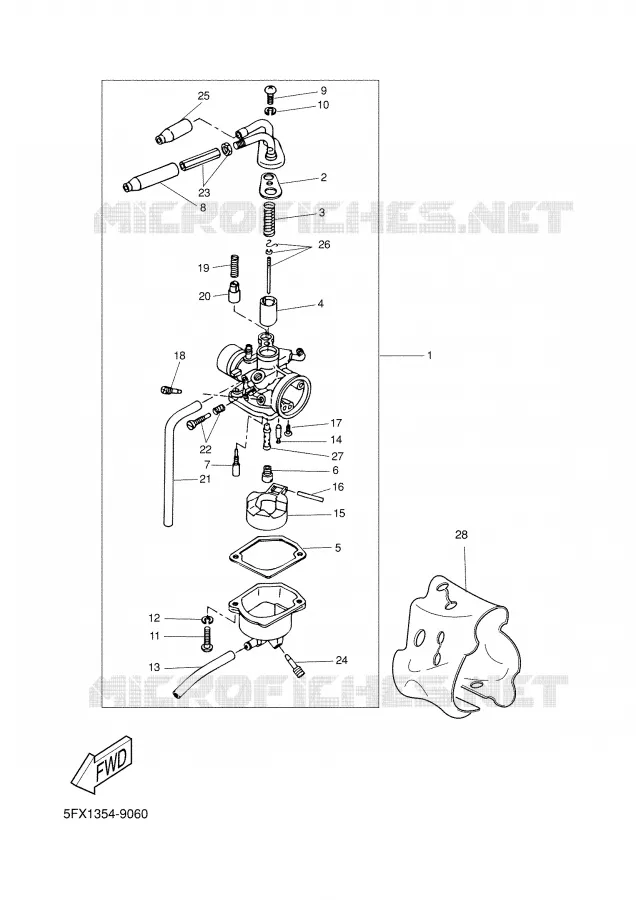

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Yamaha BWS NG of 2002. Let us know if you have any questions.

Select your Yamaha BWS model from 2002
