CRANKCASE

STARTER MOTOR FOR YAMAHA BW'S 2002

STARTER CLUTCH

GEAR 1

3AA155130000 3AA155130000

52,36 $

Unit Price

BEARING

93310257R100

933102571200

42,29 $

Unit Price

BOSS, GEAR

3VLE55280000

Not available

WASHER, PLATE(1YW)

90201574L100 90201574L100

12,77 $

Unit Price

STARTER CLUTCH ASSY

3VL155700000 3VL155700000

79,78 $

Unit Price

IDLE GEAR ASSY

4SBE56500000 4SBE56500000

109,15 $

Unit Price

SHAFT

3VLE56590000

3VLE56591000

5,21 $

Unit Price

WASHER, PLATE 2562171800

902010808800 902010808800

4,16 $

Unit Price

IDLE GEAR PLATE

3VLE55320000 3VLE55320000

Not available

BOLT, HEXAGON SOCKET HEAD(M01)

9011006X2100

9011006X8200

2,64 $

Unit Price

KICK SHAFT ASSY

3ES156010200

5ADE56010000

192,87 $

Unit Price

SPRING, TORSION (32N)

905083260900 905083260900

17,66 $

Unit Price

BUSH, SOLID

903801524000

903801581700

3,02 $

Unit Price

WASHER, PLATE (5G3)

90201154E900 90201154E900

6,72 $

Unit Price

CIRCLIP(1AR)

990091540000 990091540000

4,24 $

Unit Price

KICK CRANK ASSY

3VLE56200100 3VLE56200100

60,19 $

Unit Price

SCREW

9010106X0100

3VLE57930000

3,22 $

Unit Price

GEAR, KICK PINION

4SBE56310000

2ADE56310000

77,65 $

Unit Price

CLIP

3VLE56730000 3VLE56730000

26,49 $

Unit Price

STARTER MOTOR ASSY

4VVH18000000 4VVH18000000

343,59 $

Unit Price

O-RING (35R)

932102361400 932102361400

8,11 $

Unit Price

BRUSH SET

1YU81801M000 1YU81801M000

46,92 $

Unit Price

GASKET, YOKE

53L8181YM000 53L8181YM000

6,78 $

Unit Price

BOLT

1TKE54810000 1TKE54810000

0,52 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

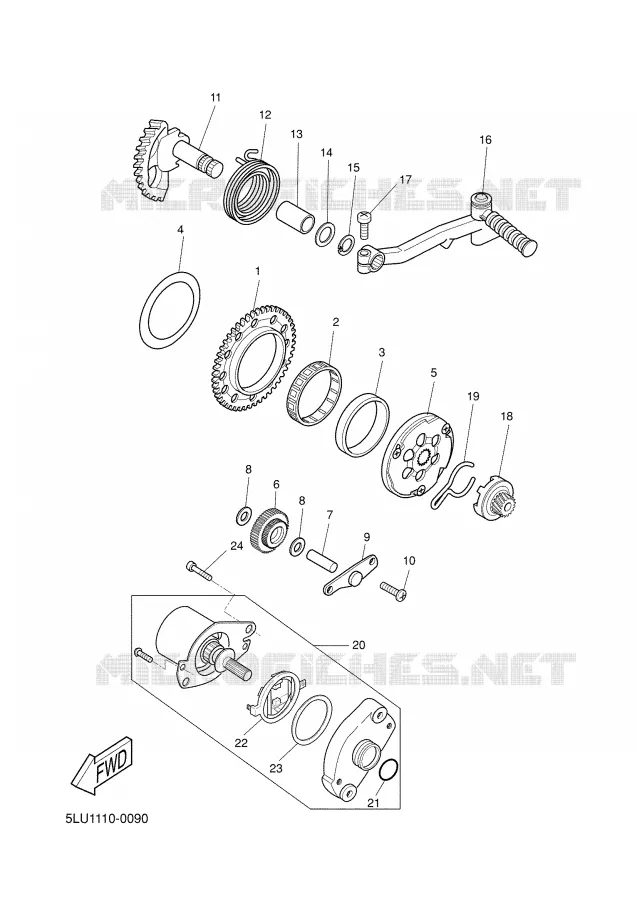

Find on this page all the original spare parts relating to the STARTER MOTOR of your Yamaha BW'S 50 of 2002. Let us know if you have any questions.

Select your Yamaha BW'S model from 2002
