CRANKSHAFT / PISTON

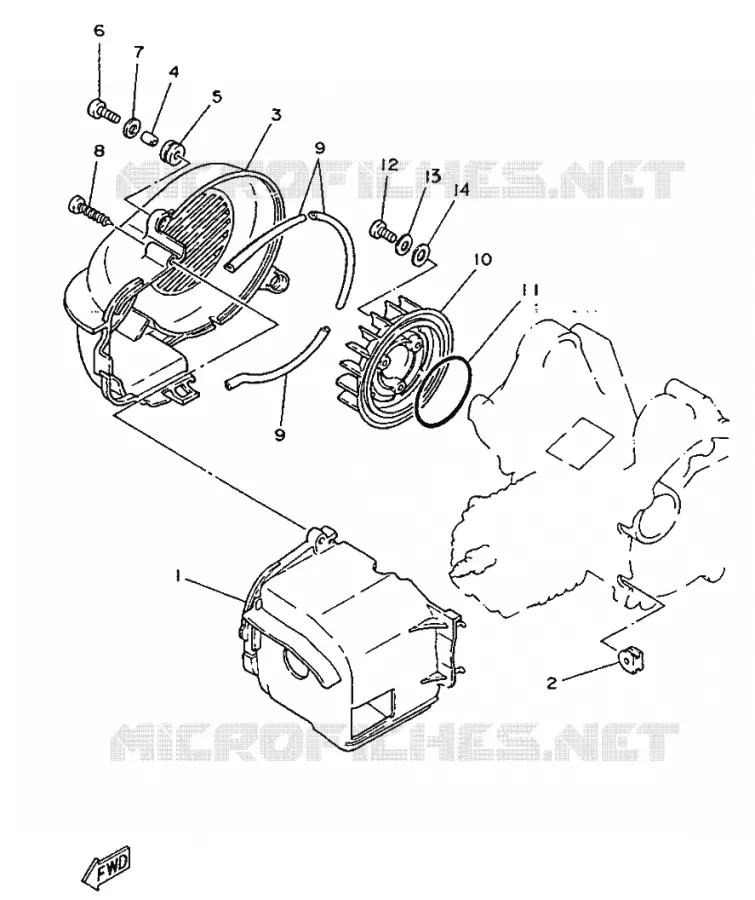

AIR SHROUD & FAN FOR YAMAHA JOG R 1996

OIL PUMP

COUVERCLE, CYLINDRE 1

3WGE26510000 3WGE26510000

Not available

GROMMET(2JA)

904801046800 904801046800

2,16 $

Unit Price

COUVERCLE, CYLINDRE 3

3WGE26530000 3WGE26530000

Not available

COLLAR(3KJ)

90387067V100 90387067V100

3,58 $

Unit Price

GROMMET(3AA)

904801249700 904801249700

3,94 $

Unit Price

SCREW, PAN

985060602000

985170602000

4,41 $

Unit Price

RONDELLE, PLATE

902010681500 902010681500

Not available

SCREW, PAN TAP.2

977026054000

977076054000

4,00 $

Unit Price

AMORTISSEUR, COUVERCLE 1

3WGE26580000 3WGE26580000

Not available

FAN

3KJ126110000 3KJ126110000

23,20 $

Unit Price

O-RING

932106448800 932106448800

18,88 $

Unit Price

SCREW PAN HEAD

985010601600

985800601600

2,35 $

Unit Price

WASHER(6A1)

929010610000

929950610000

1,46 $

Unit Price

WASHER(6TA)

929010660000

929070660000

1,83 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the AIR SHROUD & FAN of your Yamaha CY50R of 1996. Let us know if you have any questions.
