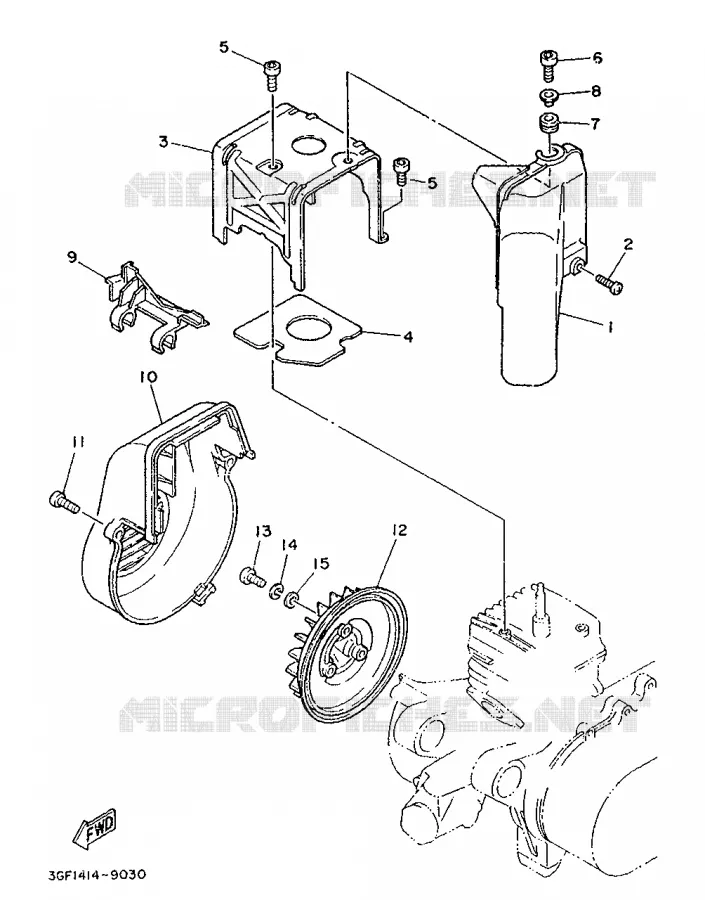

AIR SHROUD & FAN FOR YAMAHA CR 1996

OIL PUMP

COUVERCLE, CYLINDRE 1

3GFE26510000 3GFE26510000

Not available

SCREW, PAN

985070602000

985170602000

4,41 $

Unit Price

COUVERCLE, CYLINDRE 2

3GFE26520000 3GFE26520000

Not available

AMORTISSEUR 1

3GFE11610000 3GFE11610000

Not available

BOLT, SOCKET

913170601000 913170601000

4,24 $

Unit Price

BOLT, SOCKET

913170601600 913170601600

3,51 $

Unit Price

GROMMET (2T4)

904801223700 904801223700

4,02 $

Unit Price

COLLERETTE

903870689400 903870689400

Not available

SUPPORT, COLLIER 1

23YE26550200 23YE26550200

Not available

COUVERCLE, CYLINDRE 3

1NTE26530000 1NTE26530000

Not available

SCREW, PAN

985070602000

985170602000

4,41 $

Unit Price

VENTILATEUR

3GFE26110000 3GFE26110000

Not available

SCREW PAN HEAD

985010601600

985800601600

2,35 $

Unit Price

WASHER(6A1)

929010610000

929950610000

1,46 $

Unit Price

WASHER, PLAIN (646)

929030660000

929900660000

2,09 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the AIR SHROUD & FAN of your Yamaha CR50Z of 1996. Let us know if you have any questions.
