ELECTRICAL 1

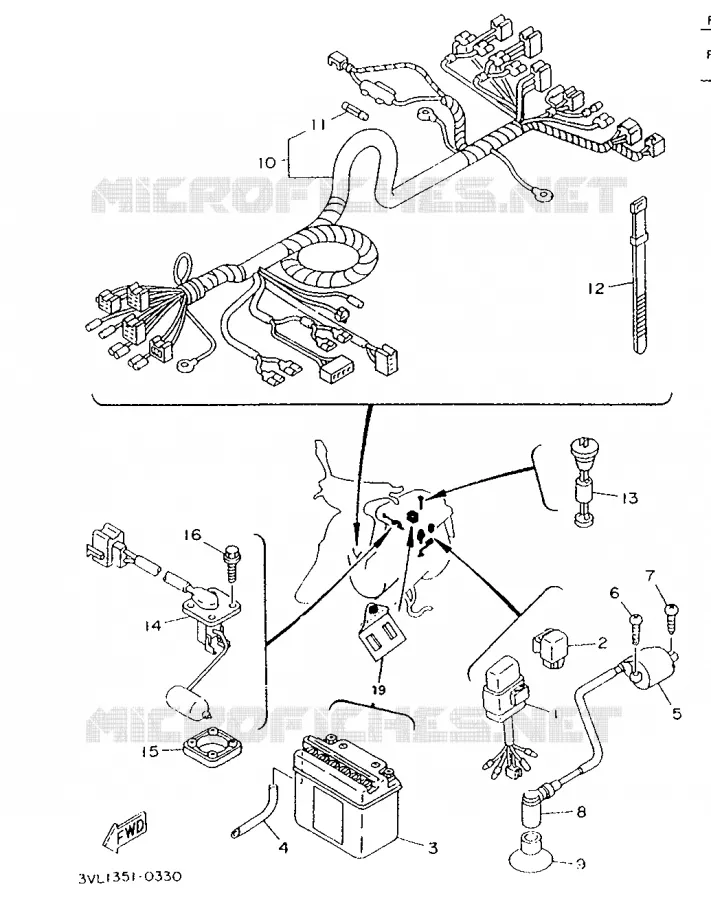

ELECTRICAL 2 FOR YAMAHA BOOSTER 1996

STATOR CPLT

3KJ855101000 3KJ855101000

Not available

RELAY ASSY (29U-93)

29U819509300 29U819509300

49,08 $

Unit Price

BAT YB4L-B YU NA

4CUH21100000

YB4LB0000000

46,24 $

Unit Price

BATTERY GM4-3B (GS)

4SBH21100000

38E821100200

76,30 $

Unit Price

HOSE (L1500)

90445083F200

90445084J000

21,15 $

Unit Price

3KJ823100100

3KJ823101300

60,54 $

Unit Price

VIS

901490626200 901490626200

Not available

SCREW, TAPPING

977076052500 977076052500

0,59 $

Unit Price

PLUG CAP ASSY

3WGH23701000

SPCLB05F0000

27,24 $

Unit Price

CAP SEAL

3WGH23720000 3WGH23720000

Not available

FAISCEAU DE FILS COMPLET

3VLH25900000 3VLH25900000

Not available

FUSE

27V821510000 27V821510000

2,09 $

Unit Price

BAND, SWITCH CORD

4KHH39360000

4KHH39360100

7,52 $

Unit Price

OIL LEVEL GAUGE AS

3VLH57201000

53L857201000

76,20 $

Unit Price

PERCEPTION DE JAUGE A ESSENCE

4VVH57520000 4VVH57520000

Not available

GASKET, SENDER UNIT

5G3857530000 5G3857530000

17,07 $

Unit Price

BOLT, WITH WASHER

901190507100 901190507100

3,58 $

Unit Price

SUPPORT

3WWH553A0000 3WWH553A0000

Not available

BAND

NH7514707000 NH7514707000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL 2 of your Yamaha BOOSTER of 1996. Let us know if you have any questions.
