AIR SHROUD & FAN

OIL PUMP FOR YAMAHA EVOLIS 1995

INTAKE

OIL PUMP ASSY

3KJ131000100

3AA131000600

144,56 $

Unit Price

BOLT, BREATHER

1YU131850000

3WF131850000

2,32 $

Unit Price

GASKET, BREATHER BOLT

1YU131870000 1YU131870000

1,70 $

Unit Price

O-RING

1YU134730000 1YU134730000

8,78 $

Unit Price

GEAR, WORM WHEEL

3AA131240000 3AA131240000

11,69 $

Unit Price

PIN, DOWEL

1YU135160000 1YU135160000

3,37 $

Unit Price

CLIP

1YU135770000 1YU135770000

1,70 $

Unit Price

HOSE (L1500)

904450930400

90445090F600

32,49 $

Unit Price

CLIP 101235600

904670800300 904670800300

5,61 $

Unit Price

HOSE (L520)

904450543100

90445055E500

10,30 $

Unit Price

CLIP (214-13164-00)

904680203300 904680203300

5,10 $

Unit Price

SCREW, PAN HEAD

985070501400 985070501400

2,23 $

Unit Price

GEAR, PUMP DRIVE

2GM131780000 2GM131780000

20,36 $

Unit Price

PIN, DOWEL (603)

936031200700 936031200700

3,88 $

Unit Price

CIRCLIP(1EY)

990091940000 990091940000

8,37 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

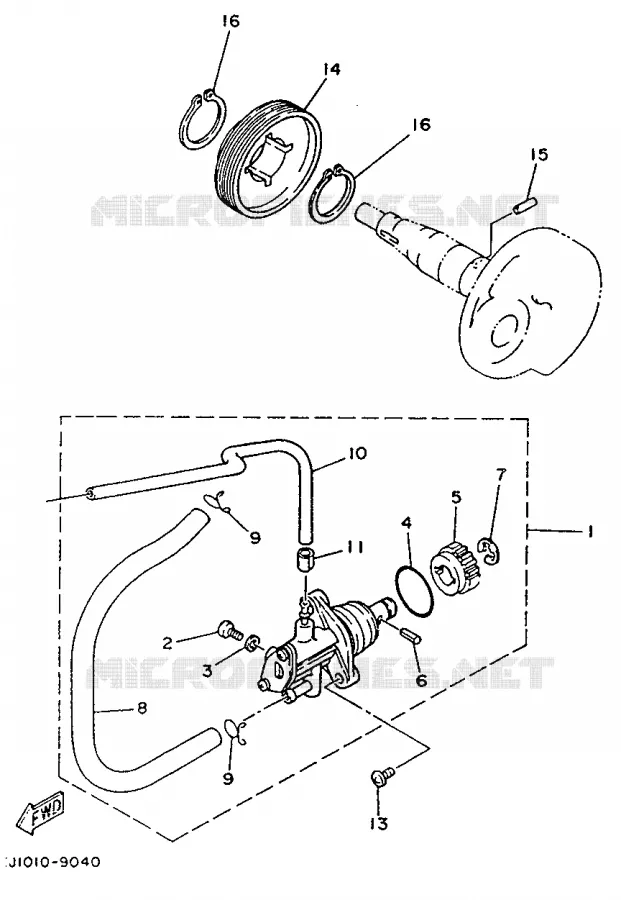

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PUMP of your Yamaha YE80 of 1995. Let us know if you have any questions.

Select your Yamaha EVOLIS model from 1995
