INTAKE

CARBURETOR FOR YAMAHA BOOSTER 1994

EXHAUST

CARBURATEUR COMPLET

4GP143010000 4GP143010000

Not available

GASKET

1YU141260000 1YU141260000

4,86 $

Unit Price

.RESSORT, BOISSEAU RESSORT, BOISSEAU

1UY143310000 1UY143310000

Not available

.BOISSEAU 1 BOISSEAU 1

4GP143123000 4GP143123000

Not available

GASKET, FLOAT CHAMBER

1YU143840000 1YU143840000

11,59 $

Unit Price

.GICLEUR, PRINCIPAL GICLEUR, PRINCIPAL

14T143434600 14T143434600

Not available

.GICLEUR, RALENTI GICLEUR, RALENTI

1YU143532500 1YU143532500

Not available

CAP

1UV141690000 1UV141690000

22,06 $

Unit Price

SCREW, PAN HEAD (646)

985800501200 985800501200

3,17 $

Unit Price

YBS67-5 WASHER, SPRING

929010510000

929900510000

1,68 $

Unit Price

SCREW, PANHEAD (796)

985800401600 985800401600

0,56 $

Unit Price

YBS67-4 WASHER, SPRING

929010410000

929900410000

1,68 $

Unit Price

PIPE

3AA143490000 3AA143490000

3,72 $

Unit Price

VALVE, NEEDLE

14T143920100 14T143920100

35,79 $

Unit Price

FLOAT

1YU143850000 1YU143850000

48,32 $

Unit Price

PIN, FLOAT

1YU143860000

14T143860000

5,09 $

Unit Price

SCREW, PAN HEAD(78G)

985010300600

985800300600

5,17 $

Unit Price

AIR SCREW SET

14T143230000

14T141040000

11,92 $

Unit Price

SPRING, PLUNGER

1YU143350000 1YU143350000

Not available

PLUNGER, STARTER

1YU143710000 1YU143710000

Not available

.J0INT TORIQUE J0INT TORIQUE

1YU143970100 1YU143970100

Not available

THROTTLE SCREW SET

1YU141030000 1YU141030000

22,82 $

Unit Price

CABLE ADJUST SCREW

1UV141060000 1UV141060000

73,88 $

Unit Price

AIR SCREW SET

14T141040000 14T141040000

11,92 $

Unit Price

CAP

14T141690000 14T141690000

Not available

.JEU D AIGUILLES JEU D AIGUILLES

3AA1490J0000 3AA1490J0000

Not available

.PUITS D AIGUILLE PUITS D AIGUILLE

2XX143410000 2XX143410000

Not available

COVER, CARBURETOR 1

1YU142830100 1YU142830100

19,97 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

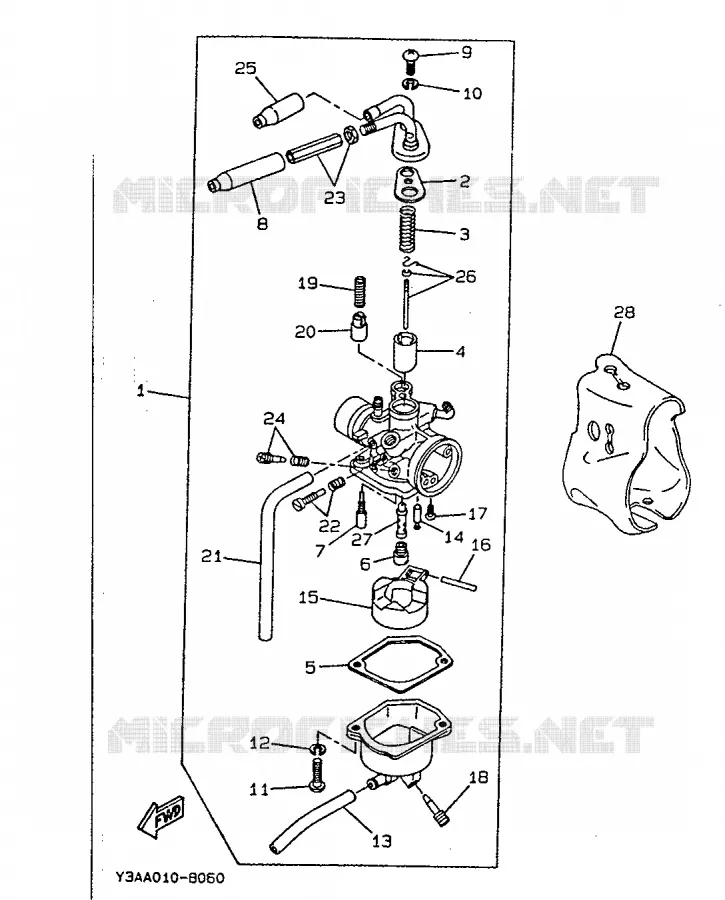

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Yamaha BOOSTER of 1994. Let us know if you have any questions.
