CRANKSHAFT / PISTON

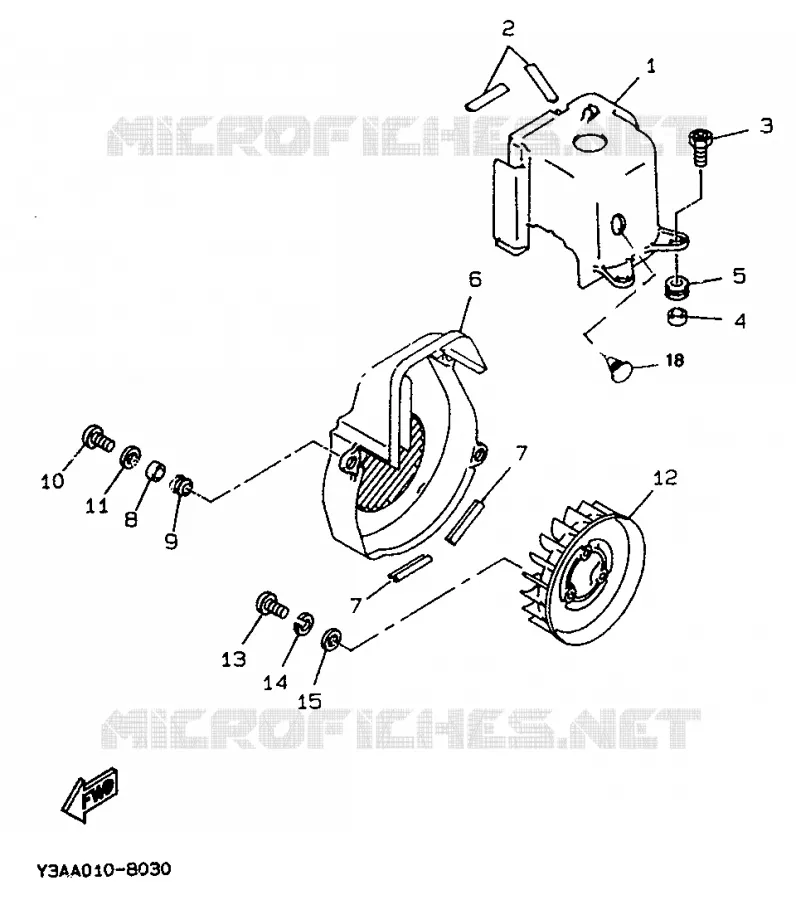

AIR SHROUD & FAN FOR YAMAHA BOOSTER 1992

OIL PUMP

COUVERCLE, CYLINDRE 1

4BYE26510000 4BYE26510000

Not available

DAMPER, AIR SHROUD 1

3VLE26580000 3VLE26580000

8,03 $

Unit Price

SCREW (2E9)

901530602200 901530602200

0,73 $

Unit Price

COLLAR 8121444900

903870602300 903870602300

6,72 $

Unit Price

GROMMET (2T4)

904801223700 904801223700

4,02 $

Unit Price

CYLINDER AIR SHROU

3VLE26530000 3VLE26530000

Not available

DAMPER, AIR SHROUD 1

3VLE26580000 3VLE26580000

8,03 $

Unit Price

COLLAR 8121444900

90387067T600

903870602300

6,72 $

Unit Price

GROMMET (2T4)

904801223700 904801223700

4,02 $

Unit Price

SCREW, PAN

985160602000

985170602000

4,41 $

Unit Price

WASHER(6TA)

929060660000

929070660000

1,83 $

Unit Price

FAN

3VLE26110000

3VLE26110100

23,83 $

Unit Price

SCREW PAN HEAD

985020601600

985800601600

2,35 $

Unit Price

WASHER(6A1)

929900610000

929950610000

1,46 $

Unit Price

WASHER(6TA)

929010660000

929070660000

1,83 $

Unit Price

PLAQUE

4BYE26810000 4BYE26810000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the AIR SHROUD & FAN of your Yamaha BW S of 1992. Let us know if you have any questions.
