CYLINDER

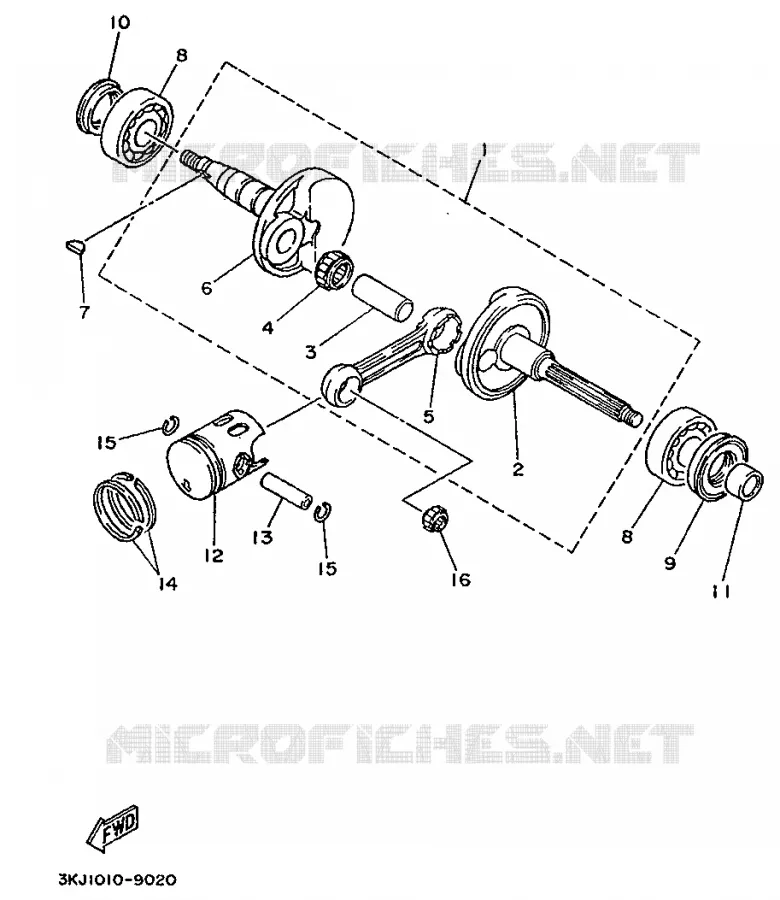

CRANKSHAFT / PISTON FOR YAMAHA JOG 1991

AIR SHROUD & FAN

CRANKSHAFT ASSY

3KJ114000000

5SU114000000

341,85 $

Unit Price

CRANKSHAFT 1

3KJ114120000

3KJ114120100

113,18 $

Unit Price

PIN, CRANK 1

1YU116810000 1YU116810000

21,34 $

Unit Price

BRG, NEEDLE

93310416F700

93310416N700

17,67 $

Unit Price

ROD, CONNECTING

2E9116510000 2E9116510000

56,96 $

Unit Price

CRANKSHAFT 2

3KJ114220000

3KJ114220100

132,95 $

Unit Price

KEY WOODRUFF 146115450000

902800301700 902800301700

6,72 $

Unit Price

BEARING(1GJ)

933062045800 933062045800

48,10 $

Unit Price

OIL SEAL(1YU)

931022042500

931022037100

14,75 $

Unit Price

OIL SEAL(1GJ)

931012013800 931012013800

11,87 $

Unit Price

COLLAR(3FC)

90387156U000 90387156U000

18,74 $

Unit Price

PISTON (STD) 3CP-11631-00-96

3CP116310000 3CP116310000

Not available

PISTON (0.50MM O-S)

3CP116360000

3CP116360900

63,72 $

Unit Price

PIN, PISTON

27V116330000 27V116330000

13,84 $

Unit Price

PISTON RING SET (STD)

260116010200 260116010200

39,88 $

Unit Price

PISTON RING SET (2ND O-S)

260116012200 260116012200

41,77 $

Unit Price

CIRCLIP(2JA)

934501112000 934501112000

0,74 $

Unit Price

BEARING (27V)

93310210M000 93310210M000

26,19 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT / PISTON of your Yamaha CS50 of 1991. Let us know if you have any questions.
