Displacement

Year

Model

Finish line

Parts catalogue

Parts diagram

EXHAUST

CRANKCASE FOR YAMAHA JOG 1991

STARTER MOTOR

CRANKCASE ASSY 1

3KJ151100000

3KJ151100300

493,52 $

Unit Price

BUSHING, REAR CUSHION

164222160000 164222160000

16,25 $

Unit Price

BEARING(85G)

933060031400

933060031600

24,74 $

Unit Price

BREATHER

583153710000 583153710000

9,51 $

Unit Price

CRANKCASE ASSY 2

3KJ151200000

3KJ151200200

417,96 $

Unit Price

BEARING(85G)

933060031400

933060031600

24,74 $

Unit Price

HOSE(3XP)

904460731700

904460734900

6,09 $

Unit Price

PIN, DOWEL

995101201600

995301201600

6,78 $

Unit Price

SCREW, PAN HEAD(6H4)

985010603500

978850603500

8,13 $

Unit Price

ENTRETOISE DE SUPPORT

3KJ153170000 3KJ153170000

Not available

CIRCLIP(1EY)

990091740000 990091740000

1,68 $

Unit Price

COVER, CRANKCASE 2

3KJ154210000 3KJ154210000

64,67 $

Unit Price

GASKET, CRANKCASE COVER 2

3KJ154610000

4FB154610000

12,75 $

Unit Price

GASKET, CRANKCASE COVER 1

3KJ154510000

4FB154510000

20,11 $

Unit Price

PIN, DOWEL

995301001400 995301001400

6,72 $

Unit Price

SCREW, PAN HEAD(6H4)

985010603500

978850603500

8,13 $

Unit Price

SCREW PAN HEAD

985010602000

985800602000

5,09 $

Unit Price

CRANKCASE COVER 1

3KJ154110000

3YJ154110100

200,87 $

Unit Price

SHAFT

3KJ156590000 3KJ156590000

4,11 $

Unit Price

PIN, DOWEL

995301001400 995301001400

6,72 $

Unit Price

SCREW, PAN HEAD (76T)

985010602500

985170602500

2,10 $

Unit Price

SCREW, PAN HEAD(6H4)

985010603500

978850603500

8,13 $

Unit Price

SCREW PAN HEAD

985010606500

985800656500

11,77 $

Unit Price

PLUG, OIL

4J2153630000

4J2153631000

5,38 $

Unit Price

O-RING (26H)

932101410400

932101457900

3,94 $

Unit Price

BOLT, FLANGE(JN5)

958010801600

958170801600

3,74 $

Unit Price

WASHER, PLATE 3411117500

902010808700 902010808700

5,86 $

Unit Price

HOLDER

1HV151280000 1HV151280000

2,52 $

Unit Price

SCREW, PAN

985010601200

985170601200

2,10 $

Unit Price

GASKET, CRANKCASE COVER 3

3KJ154620000

4FB154620000

7,07 $

Unit Price

COVER, CRANKCASE 3

3KJ154310000

3YJ154310000

29,07 $

Unit Price

BOLT 1

3KJ154810000 3KJ154810000

15,55 $

Unit Price

DAMPER, ENGINE MOUNT 1

3KJ153160000 3KJ153160000

7,26 $

Unit Price

DAMPER, ENGINE MOUNT

3KJ153260000

3YJ153260000

5,00 $

Unit Price

DAMPER 3

3KJ153350000 3KJ153350000

Not available

DAMPER 4

3KJ153370000 3KJ153370000

2,07 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

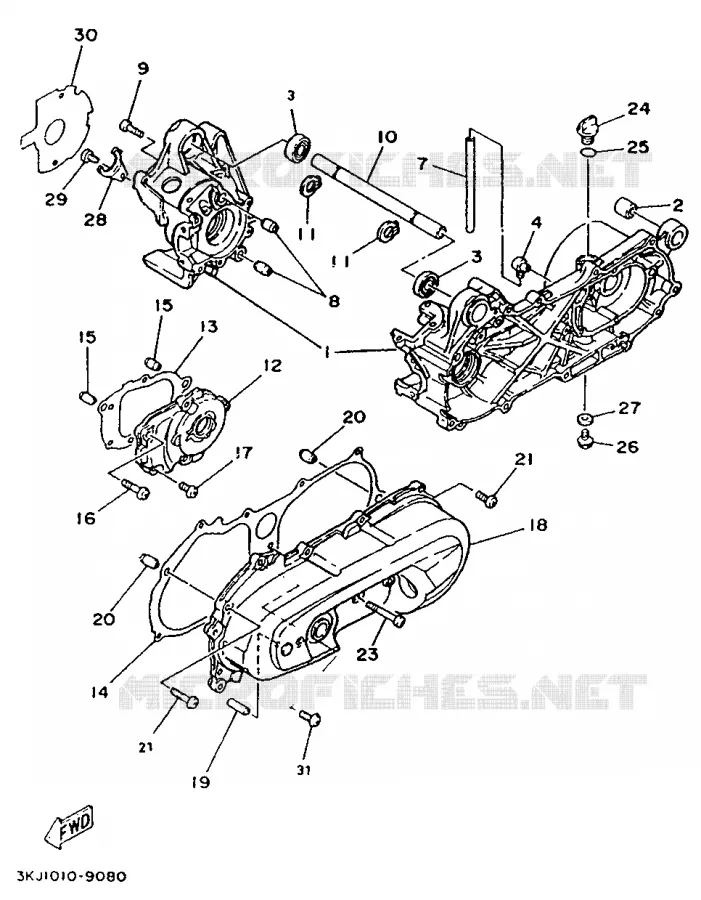

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Yamaha CS50 of 1991. Let us know if you have any questions.
