STARTER MOTOR

STARTER CLUTCH FOR YAMAHA JOG 1988

TRANSMISSION

PRIMARY DRIVE GEAR

1GJ161110100 1GJ161110100

86,57 $

Unit Price

WASHER, PLATE (371)

902010641200 902010641200

3,10 $

Unit Price

SCREW PAN HEAD

925010601000

985800601000

4,27 $

Unit Price

CIRCLIP(1EY)

990091740000 990091740000

1,68 $

Unit Price

BEARING(2JN)

933060031500 933060031500

32,64 $

Unit Price

OIL SEAL

931021734200

931021746700

18,61 $

Unit Price

CLUTCH CARRIER ASSY

2VK166200000

2VK166200100

151,70 $

Unit Price

SPRING, CLUTCH WEIGHT 1

24G166260000

24G166260100

4,18 $

Unit Price

NUT (33A)

901792841500 901792841500

15,69 $

Unit Price

CLUTCH HOUSING COMP.

24G166110300 24G166110300

97,85 $

Unit Price

NUT (33A)

901701031700 901701031700

9,96 $

Unit Price

O-RING (14T)

932100655000 932100655000

3,73 $

Unit Price

PRIMARY SLIDING SHEAVE COMP.

2EX176200000

2EX176200200

71,34 $

Unit Price

WEIGHT

2JA176320000 2JA176320000

6,74 $

Unit Price

CAM

24G176230000 24G176230000

Not available

SLIDER

23Y176530000

4NG176530000

9,63 $

Unit Price

COLLAR (2GM)

90387160M200

90387160T700

12,17 $

Unit Price

V-BELT

24G176410000

24G176410100

63,12 $

Unit Price

POULIE, PRIMAIRE FIXE

24G176110000 24G176110000

Not available

CLUTCH, ONEWAY

14T156570000 14T156570000

60,91 $

Unit Price

WASHER 823214910000

902081001200 902081001200

14,80 $

Unit Price

NUT

901701021900

901701001100

2,83 $

Unit Price

POUL SECONDAIRE FIXE COMP.

24G176600000 24G176600000

Not available

POULIE COULISSANTE SECONDAIRE

24G176700000 24G176700000

Not available

OIL SEAL(23Y)

931093304900

931093305200

19,40 $

Unit Price

O-RING

932103868700

93210384A600

7,40 $

Unit Price

PIN, GUIDE

24G176640000 24G176640000

5,85 $

Unit Price

RESSORT, COMPRESSION

905013575200 905013575200

Not available

SECONDARY SPRING SEAT

24G176840000

23Y176840000

13,96 $

Unit Price

RONDELLE, PLATE

90201163J100 90201163J100

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

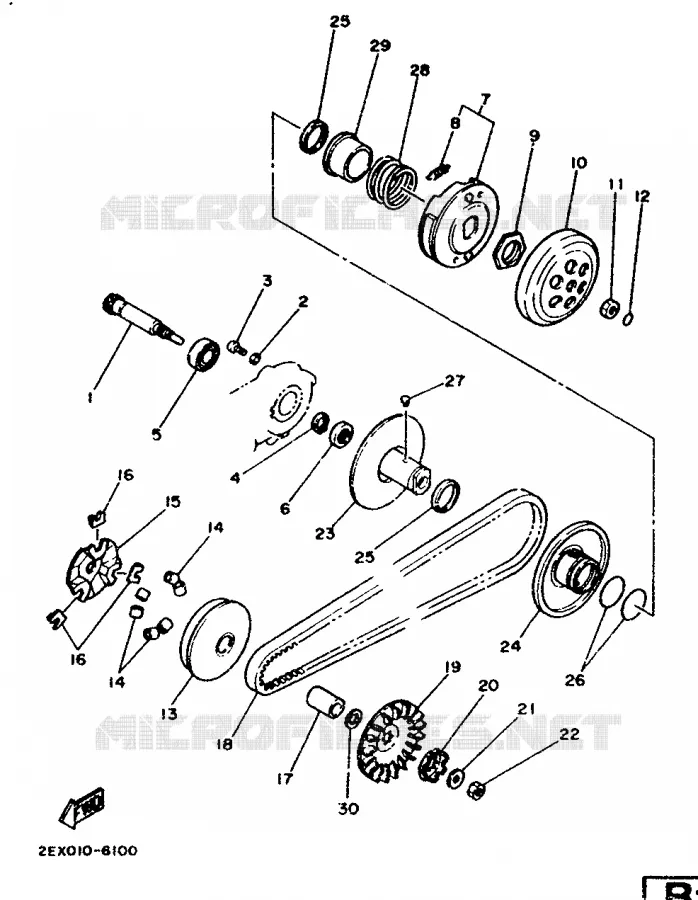

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STARTER CLUTCH of your Yamaha JOG of 1988. Let us know if you have any questions.
