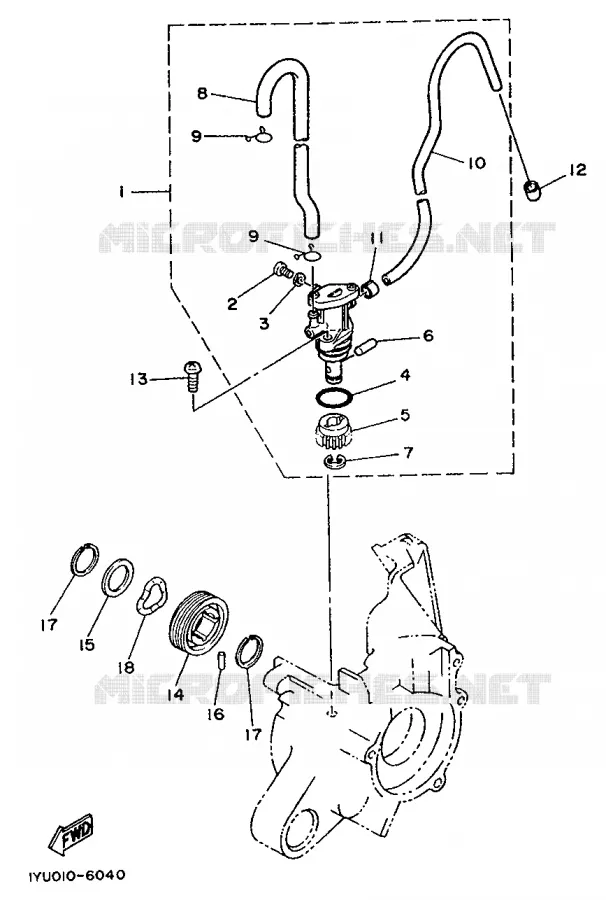

OIL PUMP FOR YAMAHA MINT 1987

INTAKE

OIL PUMP ASSY

1YU131000000

1YU131000500

116,33 $

Unit Price

BOLT, BREATHER

1YU131850000

3WF131850000

2,32 $

Unit Price

GASKET, BREATHER BOLT

1YU131870000 1YU131870000

1,70 $

Unit Price

O-RING

1YU134730000 1YU134730000

8,78 $

Unit Price

GEAR, WORM WHEEL

1YU131240000

3AA131240000

11,69 $

Unit Price

PIN, DOWEL

1YU135160000 1YU135160000

3,37 $

Unit Price

CLIP

1YU135770000 1YU135770000

1,70 $

Unit Price

PIPE, OIL 1

1YU134160000 1YU134160000

15,64 $

Unit Price

CLIP 101235600

904670800300 904670800300

5,61 $

Unit Price

HOSE (L520)

90445056E400

90445055E500

10,30 $

Unit Price

CLIP (214-13164-00)

904680203300 904680203300

5,10 $

Unit Price

CLIP (214-13164-00)

904680203300 904680203300

5,10 $

Unit Price

SCREW, PAN HEAD

985010502000

985170502000

1,04 $

Unit Price

PIGNON, ENTRAINEMENT DE POMPE

1YU131780000 1YU131780000

Not available

SHIM

296156440000 296156440000

3,42 $

Unit Price

PIN, DOWEL (603)

936031200700 936031200700

3,88 $

Unit Price

CIRCLIP(1EY)

990091940000 990091940000

8,37 $

Unit Price

WASHER WAVE 296156430000

902061902700 902061902700

3,27 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PUMP of your Yamaha MINT of 1987. Let us know if you have any questions.
