REAR SHOCK ABSORBER

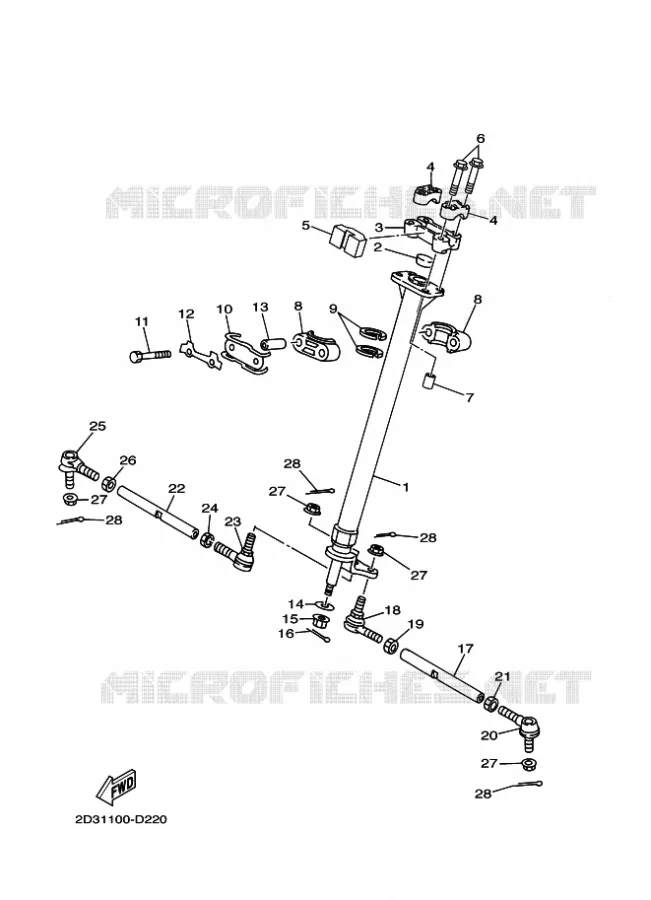

STEERING FOR YAMAHA RAPTOR 2009

FRONT SUSPENSION / WHEEL

Item numbers

COLUMN, STEERING 2

4EM238132000 4EM238132000

237,75 $

Unit Price

PLUG, TAPER(2HR)

903362805300 903362805300

6,09 $

Unit Price

HANDLE, HOLDER

8G5238140000

164234410198

27,85 $

Unit Price

HOLDER, HANDLE UPPER

8K1238140000

1E6234410000

27,38 $

Unit Price

ENTRETOISE

2D3238580000 2D3238580000

Not available

BOLT, FLANGE

958220805500

958170805500

4,30 $

Unit Price

HOSE (L70)

904451141800

90445112E000

4,00 $

Unit Price

PLANE BEARING, STEERING

1UY238120000 1UY238120000

25,72 $

Unit Price

OIL SEAL(1UY)

931123101100 931123101100

8,84 $

Unit Price

BRACKET, STEERING

3GB238680000 3GB238680000

Not available

BOLT, HEXAGON

970220806000

970170806000

6,83 $

Unit Price

WASHER, LOCK 1

1UY238940100 1UY238940100

3,29 $

Unit Price

COLLAR(85G)

90387090R000

90387106T400

16,16 $

Unit Price

WASHER, PLATE

902011003600 902011003600

5,92 $

Unit Price

NUT, SELF-LOCKING

901851001900 901851001900

1,69 $

Unit Price

COTTER PIN

914012002000 914012002000

3,75 $

Unit Price

BARRE, ACCOUPLEMENT

3GB238310000 3GB238310000

Not available

JOINT, UNIVERSAL 1

55X238410100 55X238410100

100,57 $

Unit Price

NUT (682)

953021070000

953801070000

9,14 $

Unit Price

JOINT, UNIVERSAL 2

52H238450100 52H238450100

102,97 $

Unit Price

NUT

901701001000 901701001000

1,42 $

Unit Price

BARRE, ACCOUPLEMENT

3GB238310000 3GB238310000

Not available

JOINT, UNIVERSAL 1

55X238410100 55X238410100

100,57 $

Unit Price

NUT (682)

953021070000

953801070000

9,14 $

Unit Price

JOINT, UNIVERSAL 2

52H238450100 52H238450100

102,97 $

Unit Price

NUT

901701001000 901701001000

1,42 $

Unit Price

NUT, SELF-LOCKING

901851001900 901851001900

1,69 $

Unit Price

COTTER PIN

914012002000 914012002000

3,75 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
