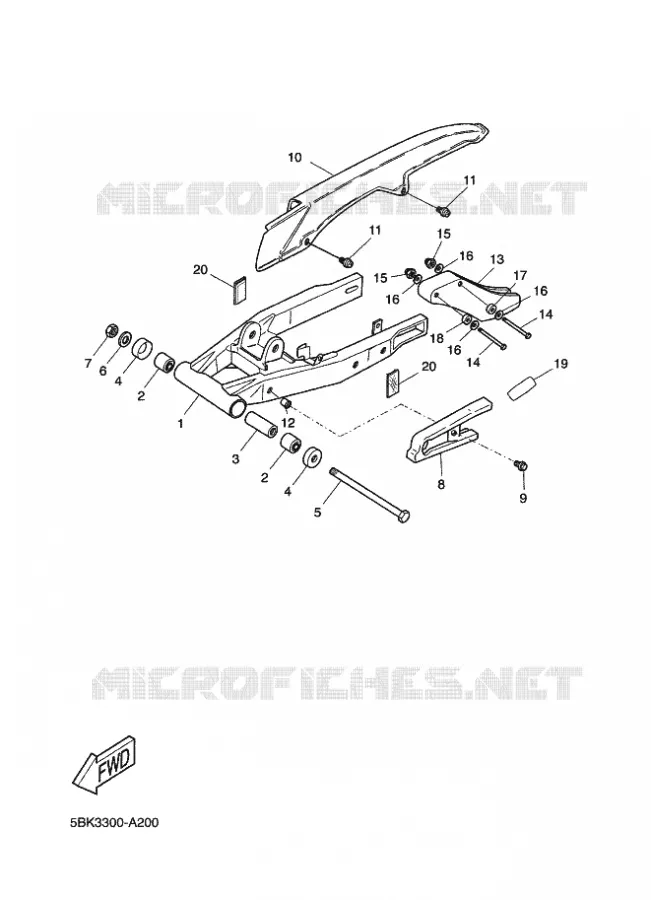

SWINGARM FOR YAMAHA DTR 2002

REAR SHOCK ABSORBER

Item numbers

BRAS ARRIERE COMP.

5BKF21100000 5BKF21100000

Not available

BUSHING (2X6)

903861809900 903861809900

21,09 $

Unit Price

COLLIER, D'ENTRETOISE

5BKF21260000 5BKF21260000

Not available

COVER, THRUST 1

401221280100 401221280100

25,52 $

Unit Price

AXE, PIVOT

5BKF21410000 5BKF21410000

Not available

RONDELLE, PLATE

9020110X0100 9020110X0100

Not available

ECROU, AUTO-BLOCANT

9018510X0000 9018510X0000

Not available

SEAL, GUARD

34X221510100 34X221510100

59,16 $

Unit Price

SCREW, PAN

985170601200 985170601200

2,10 $

Unit Price

CARTER, CHAINE

3MPF23110100 3MPF23110100

Not available

SCREW, PAN

985070601000 985070601000

2,29 $

Unit Price

BOSSAGE

3HLF21860000 3HLF21860000

Not available

PROTECTEUR, CHAINE

3HLF21531000 3HLF21531000

Not available

BOULON 1

3HLF22410000 3HLF22410000

Not available

ECROU

9017906X0200 9017906X0200

Not available

WASHER

3HLF22450000 3HLF22450000

5,16 $

Unit Price

RONDELLE

NA0103300000 NA0103300000

Not available

RONDELLE 4

5BKF22460000 5BKF22460000

Not available

LABEL, CAUTION

5ECF118K0000 5ECF118K0000

Not available

CATADIOPTRE, AVANT 1

3ECH51110000 3ECH51110000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Yamaha DT50R of 2002. Let us know if you have any questions.
