RADIATOR / HOSES

OIL PUMP FOR YAMAHA DTLC 1998

INTAKE

POMPE A HUILE COMPLET

5R2131010000 5R2131010000

Not available

BALL

935053200200 935053200200

0,74 $

Unit Price

SPRING, CHECK BALL (451)

905010221700 905010221700

4,03 $

Unit Price

HOSE (L700)

904450552900

9044505M0700

8,11 $

Unit Price

NOZZLE

353135520100 353135520100

13,45 $

Unit Price

CLIP (214-13164-00)

904680203300 904680203300

5,10 $

Unit Price

GASKET 137131870000

904300400400 904300400400

4,24 $

Unit Price

SCREW, BINDING

989070400800 989070400800

0,64 $

Unit Price

PLATE, ADJUSTING

137131380100 137131380100

9,27 $

Unit Price

SHIM, PLUNGER

137131370003 137131370003

3,10 $

Unit Price

SHIM, PLUNGER

137131370005 137131370005

3,10 $

Unit Price

SHIM, PLUNGER

137131370010 137131370010

3,67 $

Unit Price

WASHER(3SX)

929070510000 929070510000

2,13 $

Unit Price

NUT, HEXAGON

953070560000

953170560000

1,90 $

Unit Price

COVER, ADJUST PULLEY

367131460100 367131460100

3,78 $

Unit Price

AXE DE VIS TANGENTE

5R2131750000 5R2131750000

Not available

WASHER, PLATE (1E7)

902010862400 902010862400

5,61 $

Unit Price

GASKET, PUMP CASE

126131160100 126131160100

1,97 $

Unit Price

SCREW, PAN HEAD(6B0)

985010501400

978850501600

6,78 $

Unit Price

OIL SEAL (J10)

931011000100

931011009000

10,62 $

Unit Price

METAL, WORM SHAFT OUTER

137131760000 137131760000

10,54 $

Unit Price

PUMP DRIVE GEAR

5R2131780100 5R2131780100

29,54 $

Unit Price

PIN, DOWEL (137)

936032202800 936032202800

4,24 $

Unit Price

CIRCLIP(2R6)

990010860000 990010860000

5,32 $

Unit Price

WASHER, PLATE(3GM)

902011013800

90201106M500

10,11 $

Unit Price

SUPPORT DE DURITE A HUILE

5R2131740000 5R2131740000

Not available

CLAMP (498)

904651006900 904651006900

4,64 $

Unit Price

CIRCLIP (2A6)

904680808600 904680808600

7,81 $

Unit Price

CLIP (214-13164-00)

904680203300 904680203300

5,10 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

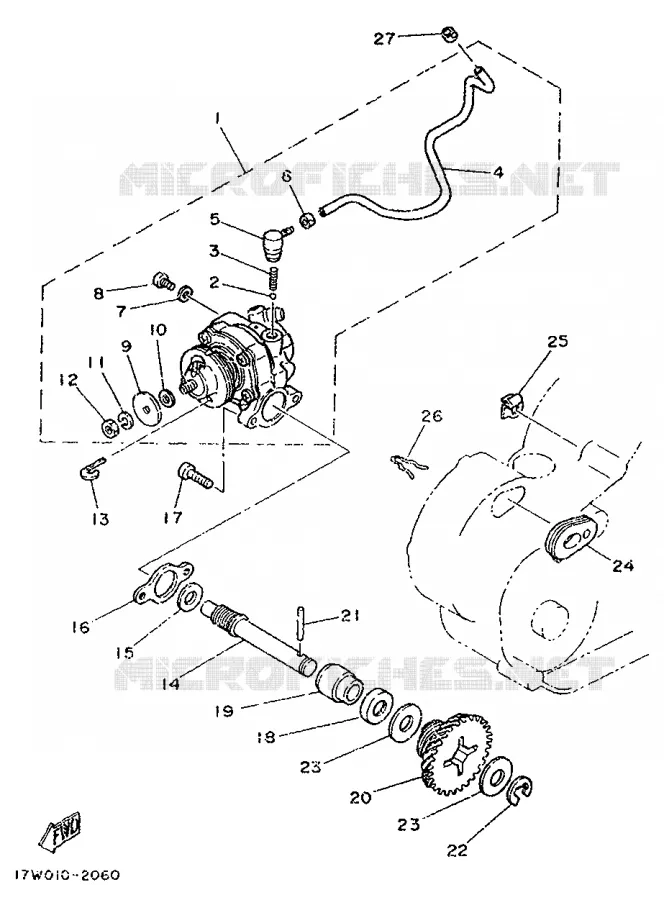

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PUMP of your Yamaha DT50LC of 1998. Let us know if you have any questions.

Select your Yamaha DTLC model from 1998
