FINAL DRIVE SHAFT / GEAR COUPLING

FRONT FORK FOR YAMAHA PW 1997

FUEL TANK

FOURCHE AVANT COMPLETE

3PT2310000EX 3PT2310000EX

Not available

UNDER BRACKET COMP.

4X4233400233

3PT233401000

212,37 $

Unit Price

RACE, BALL 4

3YJ234140000 3YJ234140000

15,66 $

Unit Price

INNER TUBE COMP.1

3PT231100000 3PT231100000

208,84 $

Unit Price

SEAL, DUST

2E9231440100 2E9231440100

19,92 $

Unit Price

CIRCLIP(1YT)

934503005700 934503005700

10,82 $

Unit Price

METAL, SLIDE 1

54V231250100

54V231250200

8,08 $

Unit Price

COLLAR

2E9231130100 2E9231130100

13,79 $

Unit Price

SPRING, REBOUND

36R231510000 36R231510000

6,10 $

Unit Price

.TUBE EXT.COMP.(G) TUBE EXT.COMP.(G)

4X42310600EX 4X42310600EX

Not available

SPRING, FRONT FORK

4X4231410000 4X4231410000

21,64 $

Unit Price

RUBBER

3L6231950000

3L6231950100

12,18 $

Unit Price

SEAT, SPRING UNDER

2E9231430000 2E9231430000

4,98 $

Unit Price

.FOURCHE AVANT COMPLETE (D) FOURCHE AVANT COMPLETE (D)

3PT2310300EX 3PT2310300EX

Not available

BOLT, SOCKET

913170601600 913170601600

3,51 $

Unit Price

CROWN, HANDLE

4X4234350000 4X4234350000

23,94 $

Unit Price

BOLT 1222345100

901051000600 901051000600

14,01 $

Unit Price

WASHER (1YJ)

902091016000 902091016000

9,95 $

Unit Price

WASHER PLATE (3L6)

902011074200 902011074200

10,14 $

Unit Price

RACE, BALL 2

2E9234120000

2SA234120000

28,64 $

Unit Price

RACE, BALL 3

2E9234130100

2SA234130000

15,55 $

Unit Price

RACE, BALL 1

3PT234110000 3PT234110000

29,95 $

Unit Price

BALL

935053200200 935053200200

0,74 $

Unit Price

PLATE 1

4X4215430000 4X4215430000

19,27 $

Unit Price

SCREW, W-WASHER (4L0)

901590606000 901590606000

2,34 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

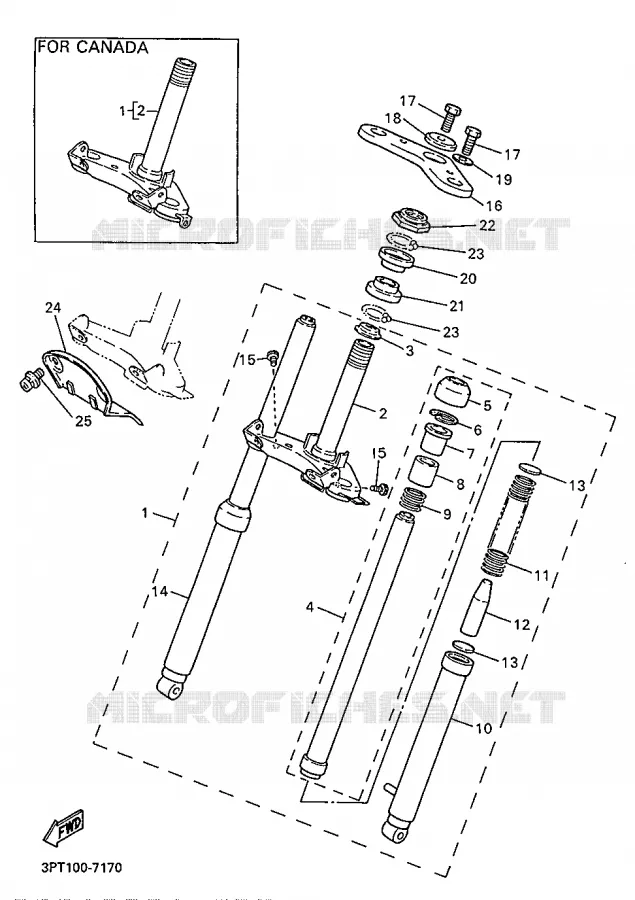

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Yamaha PW50 of 1997. Let us know if you have any questions.
