SWINGARM / SHOCK ABSORBER

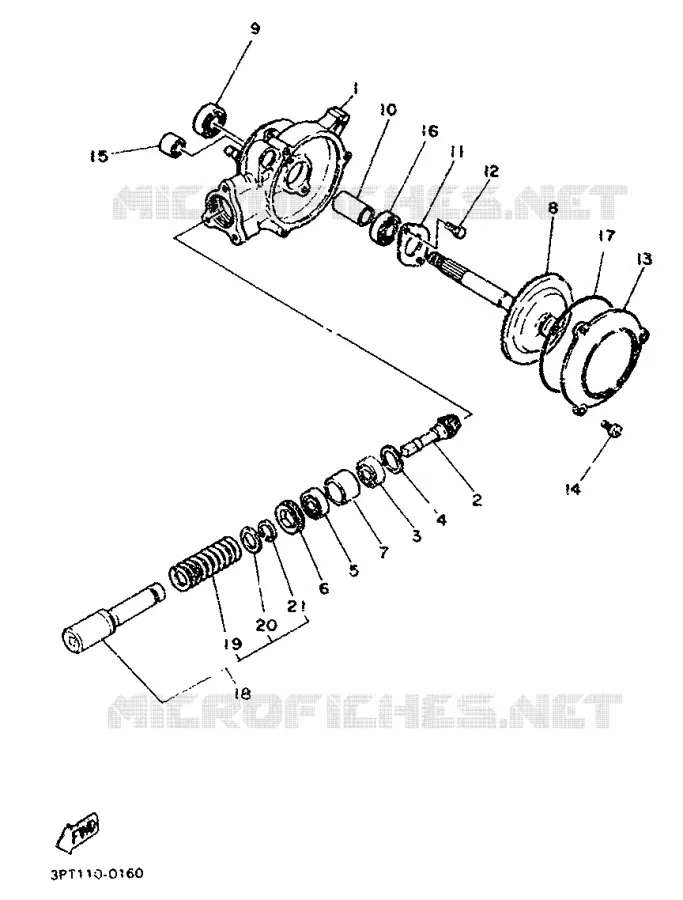

FINAL DRIVE SHAFT / GEAR COUPLING FOR YAMAHA PW 1996

FRONT FORK

HOUSING, DRIVE SHAFT

4J2461510100

4J2461510200

246,26 $

Unit Price

GEAR, DRIVE PINION

59M461210000 59M461210000

95,40 $

Unit Price

BEARING(3WF)

933062011100

933062011900

32,61 $

Unit Price

SHIM, DRIVE PINION

3L5461270000 3L5461270000

3,08 $

Unit Price

BEARING(3WF)

933062011000

933062011900

32,61 $

Unit Price

SCREW (3L5)

901493513300 901493513300

12,37 $

Unit Price

SPACER (3L5)

905602518500 905602518500

4,71 $

Unit Price

RING GEAR COMP.

4J2461100100 4J2461100100

191,42 $

Unit Price

BEARING(3DL)

933062022600 933062022600

46,54 $

Unit Price

SPACER

905601531500 905601531500

10,80 $

Unit Price

PLATE, COVER

3L5461140000 3L5461140000

10,05 $

Unit Price

BOLT, HEXAGON

970170601600 970170601600

2,42 $

Unit Price

COVER, HOUSING

4J2461540200 4J2461540200

35,55 $

Unit Price

SCREW, PAN HEAD(3TJ)

985070601600 985070601600

2,29 $

Unit Price

BUSHING, REAR CUSHION

164222160000 164222160000

16,25 $

Unit Price

BEARING

933062020900

933062020500

24,92 $

Unit Price

O-RING

932110539300

93211066A900

9,49 $

Unit Price

SHAFT DRIVE ASSY

3L7461710000 3L7461710000

263,16 $

Unit Price

SPRING, COMPRESSION (3L5)

905016055600 905016055600

23,16 $

Unit Price

RETAINER, SPRING

15L184730000 15L184730000

11,69 $

Unit Price

CIRCLIP(18U)

934401713800 934401713800

2,16 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FINAL DRIVE SHAFT / GEAR COUPLING of your Yamaha PW50 of 1996. Let us know if you have any questions.
