SWITCH / LEVER

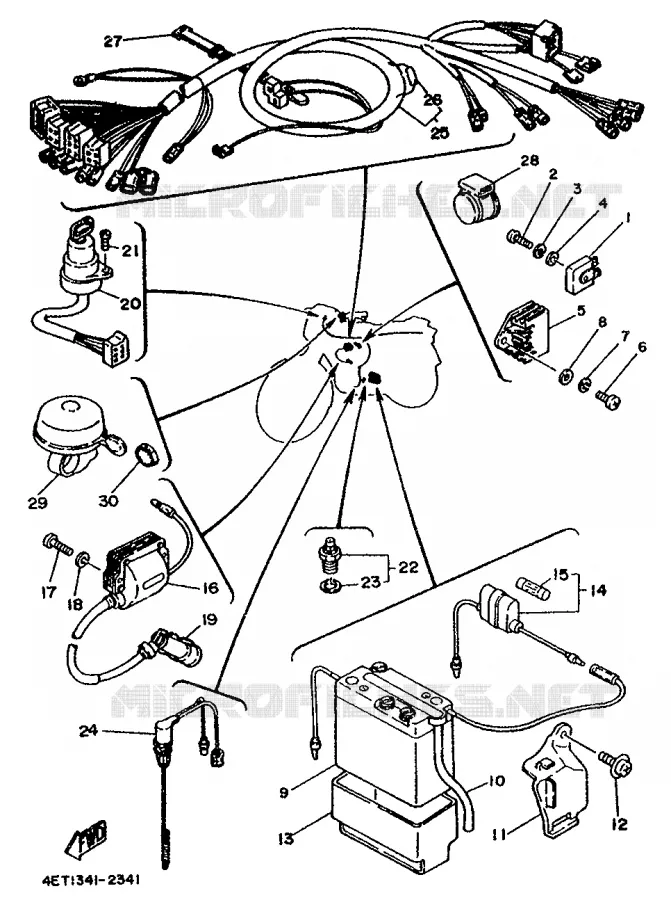

ELECTRICAL 1 FOR YAMAHA DTMX 1992

RECTIFIER ASSY

353819706300

35381970M200

16,45 $

Unit Price

SCREW, PAN HEAD

985010502000

985170502000

1,04 $

Unit Price

YBS67-5 WASHER, SPRING

929010510000

929900510000

1,68 $

Unit Price

WASHER(1RW)

929010560000

929070560000

2,13 $

Unit Price

VOLTAGE REGULATOR ASSY

4F4819106000 4F4819106000

90,58 $

Unit Price

SCREW PAN HEAD

985020601600

985800601600

2,35 $

Unit Price

WASHER(6A1)

929900610000

929950610000

1,46 $

Unit Price

WASHER(6TA)

929010660000

929070660000

1,83 $

Unit Price

BAT 6N4B-2A-3 YU NA

558821102900

6N4B2A300000

53,26 $

Unit Price

BREATHER PIPE

2RH218260000 2RH218260000

11,66 $

Unit Price

COUVERCLE, BATTERIE

3T2821290100 3T2821290100

Not available

SCREW, W-WASHER (4L0)

901590607100

901590606000

2,34 $

Unit Price

SIEGE, BATTERIE

3T2821220000 3T2821220000

Not available

FUSE HOLDER ASSY

55K821500100

55K821500200

24,32 $

Unit Price

FUSE

116821510000

1A0821510000

5,85 $

Unit Price

BOBINE D ALLUMAGE

5G4823101000 5G4823101000

Not available

SCREW PAN HEAD

985010602000

985800602000

5,09 $

Unit Price

WASHER(6A1)

929900610000

929950610000

1,46 $

Unit Price

PLUG CAP ASSY

1J7823701000

1J7823700000

42,28 $

Unit Price

CONTACTEUR A CLEF COMPLET

5A1825082000 5A1825082000

Not available

SCREW, BINDING (M01)

989010401000

989800401000

0,58 $

Unit Price

NEUTRAL SWITCH ASSY

2H7825400000

4GY825401000

30,06 $

Unit Price

GASKET

341825430000

296825430000

2,51 $

Unit Price

COMMUTATEUR CPLT

1A0825300200 1A0825300200

Not available

FAISCEAU DE FILS COMPLET

5M3825902000 5M3825902000

Not available

RECTIFIER 2

3K7819800000 3K7819800000

17,14 $

Unit Price

CLAMP

437839360100

904643001400

1,33 $

Unit Price

RELAIS DES CLIGNOTANTS CPLT

4A6833501000 4A6833501000

Not available

SONNERIE

469833820000 469833820000

Not available

CAPUCHON

3F2833650000 3F2833650000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL 1 of your Yamaha DT50MX of 1992. Let us know if you have any questions.
