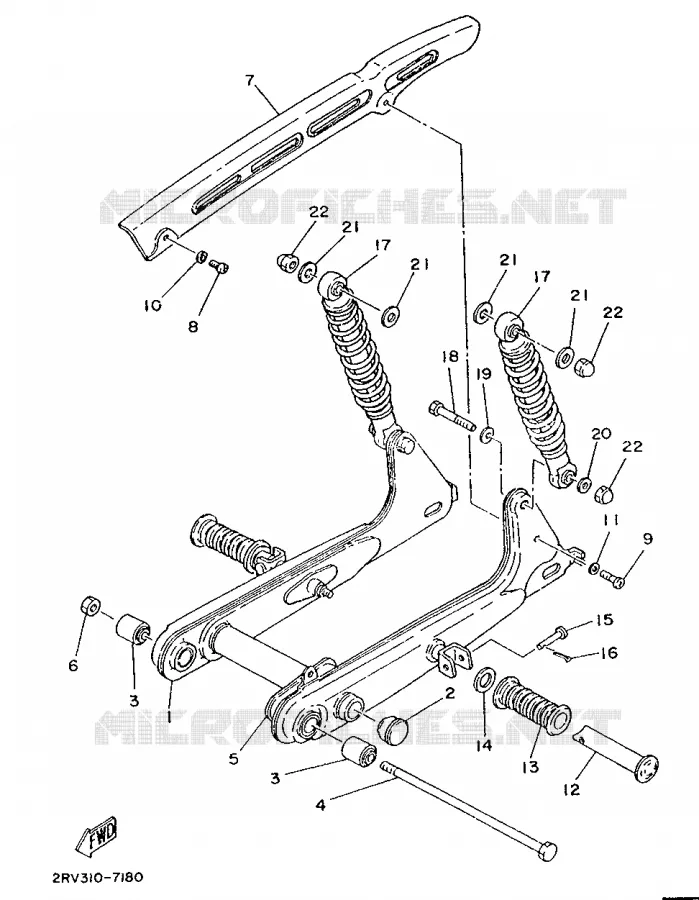

SWINGARM / SHOCK ABSORBER FOR YAMAHA FS1 1987

STEERING

BRAS ARRIERE COMP.

1X9221100033 1X9221100033

Not available

CAP, REAR ARM

180221170000 180221170000

3,49 $

Unit Price

BUSHING, REAR ARM

102221230000 102221230000

26,71 $

Unit Price

SHAFT, PIVOT

40X221410000

486221410100

22,22 $

Unit Price

GUARD SEAL

122221510000 122221510000

1,92 $

Unit Price

NUT, SELFLOCKING (533 FRAME)

901851006000 901851006000

9,14 $

Unit Price

CHAIN CASE, HALF

260223110035 260223110035

70,07 $

Unit Price

SCREW, PAN HEAD (7G3)

985010500800

985800500800

5,61 $

Unit Price

SCREW, PAN HEAD

985010502000

985170502000

1,04 $

Unit Price

WASHER(1RW)

929010560000

929070560000

2,13 $

Unit Price

WASHER(1RW)

929010560000

929070560000

2,13 $

Unit Price

FOOTREST, REAR 1

120274310000

2GV274310000

18,34 $

Unit Price

COVER, REAR FOOTREST

120274330000 120274330000

12,58 $

Unit Price

WASHER, PLATE (888)

902012027900 902012027900

1,68 $

Unit Price

PIN, CLEVIS (1Y8)

902400600900

917010603200

6,72 $

Unit Price

PIN, COTTER (E57)

914011601500

914901602000

3,78 $

Unit Price

AMORTISSEUR, ARRIERE

3W3222100000 3W3222100000

Not available

BOLT, HEXAGON

901011025500 901011025500

1,32 $

Unit Price

WASHER, PLATE(3BM)

902011043700

90201105R900

5,09 $

Unit Price

958-69527-00 WASHER, PLAIN

929011020000

929901020000

3,94 $

Unit Price

WASHER, PLATE(3BM)

902011043700

90201105R900

5,09 $

Unit Price

NUT, CROWN(3BM)

901761001300

901761007300

10,48 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM / SHOCK ABSORBER of your Yamaha FS1 of 1987. Let us know if you have any questions.
