FRONT WHEEL

REAR WHEEL FOR YAMAHA FS1 1987

HANDLEBAR & CABLES

MOYEU, ARRIERE

462253110135 462253110135

Not available

SPACER (1U1)

905601217000 905601217000

23,28 $

Unit Price

FLANGE, SPACER

102253150000

109253150000

5,75 $

Unit Price

BRG.

933063010100 933063010100

20,89 $

Unit Price

OIL SEAL(3TU)

931062000200

931062003300

15,76 $

Unit Price

OIL SEAL (21X37X7-102)

931042101600 931042101600

9,64 $

Unit Price

DRIVEN SPROCKET 39T

288254391033

288254391000

15,61 $

Unit Price

BOLT 109254110000

901090831900 901090831900

5,41 $

Unit Price

WASHER

2A3254120000

2AL254120000

11,26 $

Unit Price

NUT, HEXAGON (509)

901700815800 901700815800

1,68 $

Unit Price

BRAKE SHOE PLATE ASSY

3552502600Y8 3552502600Y8

40,82 $

Unit Price

GROMMET (397)

904801006800 904801006800

9,08 $

Unit Price

BRAKE SHOE KIT

18AW25340000 18AW25340000

17,16 $

Unit Price

SPRING, TENSION (18A)

905061828800 905061828800

3,74 $

Unit Price

CAMSHAFT

3Y6253510000

4GL253510000

94,78 $

Unit Price

LEVER, CAM SHAFT

538253550000 538253550000

34,38 $

Unit Price

BOLT, HEXAGON (538)

901010627800 901010627800

2,61 $

Unit Price

NUT(661)

953030660000

953800660000

2,14 $

Unit Price

SPOKE SET

296253041000 296253041000

107,35 $

Unit Price

RIM (1.40-17)

944141700300 944141700300

134,40 $

Unit Price

BAND, RIM (3.25-17) (3Y0)

943321711200 943321711200

7,58 $

Unit Price

CHAMBRE A AIR (2.50-17)

942251708200 942251708200

Not available

PNEU (2.50-17)

941251725900 941251725900

Not available

CHAIN, DRIVE

945805209600

945805211000

36,81 $

Unit Price

JOINT, CHAIN (29A)

946805200100 946805200100

4,87 $

Unit Price

TENSION BAR

102253710000 102253710000

9,60 $

Unit Price

BOLT 1022537300

901090818300 901090818300

8,41 $

Unit Price

NUT(661)

953030870000

953800870000

4,47 $

Unit Price

YBS67-8 WASHER, SPRING

929900810000 929900810000

1,68 $

Unit Price

WASHER(6TC)

929010820000

929070820000

2,13 $

Unit Price

CLIP (156-83525-00)

904681005000 904681005000

5,16 $

Unit Price

COTTER PIN

914012001500

914012002000

3,75 $

Unit Price

SHAFT, WHEEL

353253810000 353253810000

33,14 $

Unit Price

WASHER, PLATE

90201122A700

902011204700

2,43 $

Unit Price

NUT 3532518200

901711000400 901711000400

6,52 $

Unit Price

COTTER PIN

914012002000 914012002000

3,75 $

Unit Price

COLLAR 102253830000

903871241200 903871241200

16,42 $

Unit Price

COLLAR (40E)

90387127E000 90387127E000

18,74 $

Unit Price

TENDEUR 1, CHAINE

1U0253880000 1U0253880000

Not available

PULLER, CHAIN

102253890000

4GL2538G1000

17,27 $

Unit Price

NUT(661)

953030660000

953800660000

2,14 $

Unit Price

WASHER(6A1)

929900610000

929950610000

1,46 $

Unit Price

WASHER, PLATE (4H7)

90201061A500 90201061A500

3,94 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

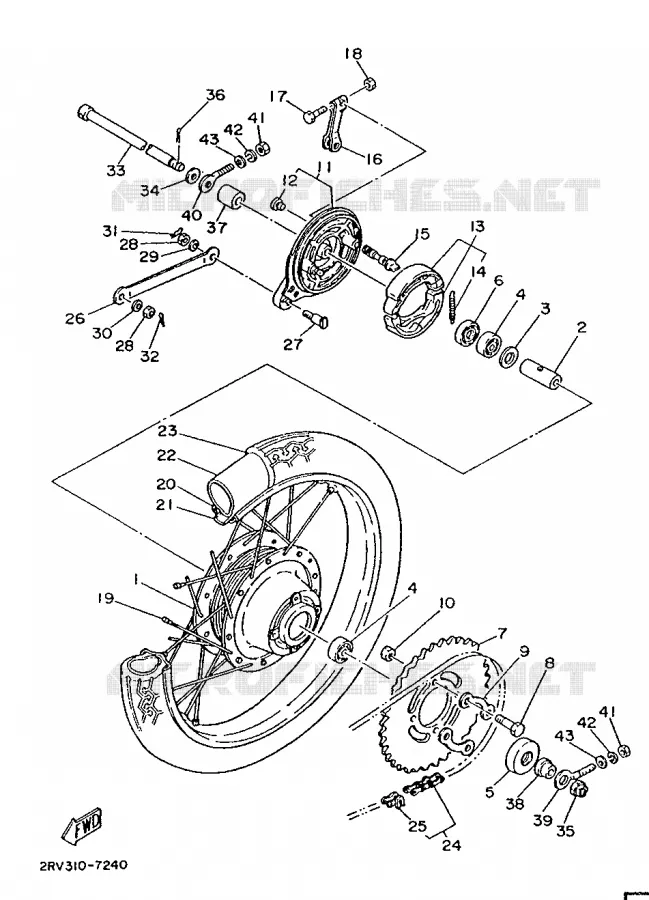

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR WHEEL of your Yamaha FS1 of 1987. Let us know if you have any questions.
