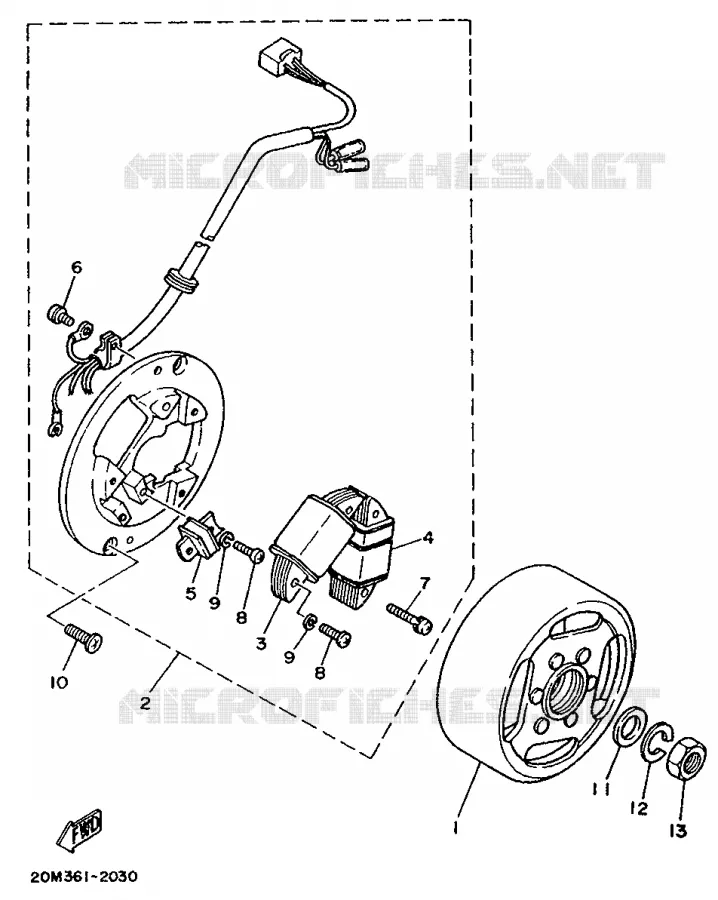

IGNITION FOR YAMAHA DTMX 1986

INDICATOR

ROTOR CPLT

20M855502000 20M855502000

Not available

ENS. FLASQUE

20M855602000 20M855602000

Not available

.BOBINE, ALIMENTATION BOBINE, ALIMENTATION

3J8855122000 3J8855122000

Not available

.BOBINE, ECLAIRAGE 1 BOBINE, ECLAIRAGE 1

5A4813132000 5A4813132000

Not available

PULSER COIL

3J8855802000

3A3855802000

190,89 $

Unit Price

SCREW, PAN HEAD(3XP)

110813452100

985170400600

6,22 $

Unit Price

SCREW, PAN HEAD

976020412500

985170402500

2,10 $

Unit Price

SCREW, PAN HEAD(GA5)

985010401400

985800401400

3,88 $

Unit Price

YBS67-4 WASHER, SPRING

929010410000

929900410000

1,68 $

Unit Price

SCREW, COUNTERSUNK(3AC)

987010501600

901510505500

2,10 $

Unit Price

WASHER (492)

902011253500 902011253500

5,49 $

Unit Price

YBS67-12 WASHER, SPRING

929011210000

929901210000

5,17 $

Unit Price

NUT, HEXAGON 98801-12200

901701217500 901701217500

2,79 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the IGNITION of your Yamaha DT50MX of 1986. Let us know if you have any questions.
