Displacement

Year

Model

Finish line

Parts catalogue

Parts diagram

INTAKE

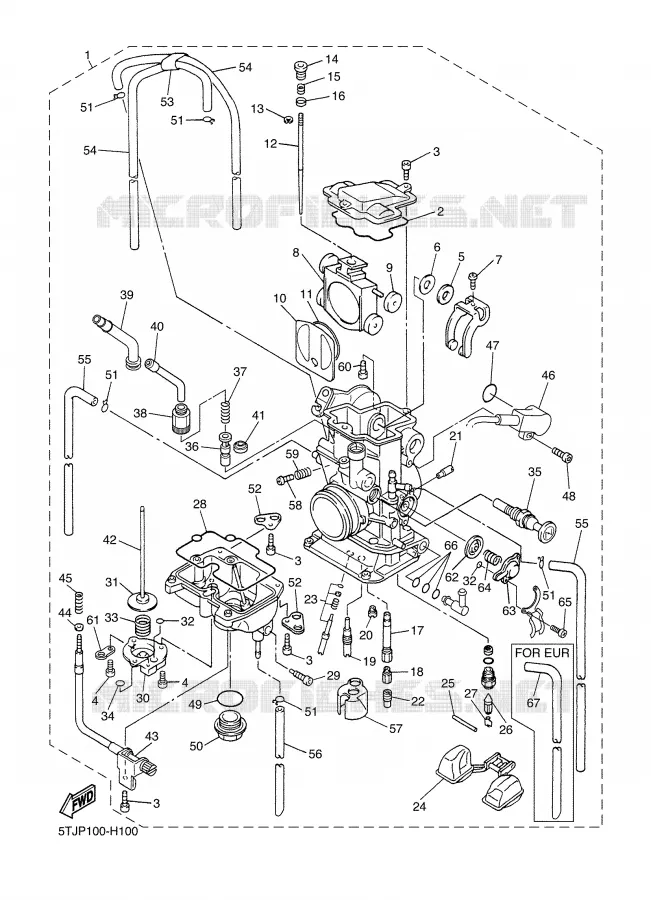

CARBURETOR FOR YAMAHA WRF 2009

AIR INDUCTION SYSTEM AIS

CARBURATEUR 1 COMPLET

5TJ14101L000 5TJ14101L000

Not available

CARBURETOR ASSY 1

5TJ14101E000

Not available

GASKET

5JG149590000 5JG149590000

32,04 $

Unit Price

BOLT, SOCKET

913160401200

913170401200

4,23 $

Unit Price

SCREW, PAN HEAD (713)

688145920000

985800400800

3,58 $

Unit Price

WASHER, PLATE

902020804500 902020804500

2,06 $

Unit Price

WASHER

5JG149510000 5JG149510000

3,15 $

Unit Price

SCREW, ADJUST

5JG145220000

5JG145220900

10,78 $

Unit Price

VALVE, VACUUM CONTROL

2S2143880000 2S2143880000

793,21 $

Unit Price

ROLLER

3TJ142674000 3TJ142674000

18,98 $

Unit Price

VALVE, NEEDLE

5JG145460100 5JG145460100

404,51 $

Unit Price

SEAL

4FN149970000 4FN149970000

23,59 $

Unit Price

NEEDLE (#DUQ-K)

5TJ149169100 5TJ149169100

28,06 $

Unit Price

NEEDLE

5TJ149169M00 5TJ149169M00

27,53 $

Unit Price

NEEDLE

5TJ149169N00 5TJ149169N00

27,53 $

Unit Price

NEEDLE (#DUP-K)

5TJ149169P00 5TJ149169P00

27,53 $

Unit Price

NEEDLE (#DUR-K)

5TJ149169R00 5TJ149169R00

28,06 $

Unit Price

NEEDLE (#DUS-K)

5TJ149169S00 5TJ149169S00

28,06 $

Unit Price

NEEDLE (#DUT-K)

5TJ149169T00 5TJ149169T00

27,53 $

Unit Price

NEEDLE

5TJ14916A100 5TJ14916A100

28,06 $

Unit Price

NEEDLE

5TJ14916AM00 5TJ14916AM00

28,06 $

Unit Price

NEEDLE

5TJ14916AN00 5TJ14916AN00

28,06 $

Unit Price

NEEDLE

5TJ14916AP00 5TJ14916AP00

28,06 $

Unit Price

NEEDLE

5TJ14916AR00 5TJ14916AR00

28,06 $

Unit Price

NEEDLE

5TJ14916AS00 5TJ14916AS00

28,06 $

Unit Price

NEEDLE

5TJ14916AT00 5TJ14916AT00

28,06 $

Unit Price

.AIGUILLE AIGUILLE

5TJ14916LU00 5TJ14916LU00

Not available

NEEDLE

5TJ14916NT00 5TJ14916NT00

28,06 $

Unit Price

CLIP

3TJ141594000 3TJ141594000

5,29 $

Unit Price

SCREW, ADJUST

5JG145210000 5JG145210000

31,84 $

Unit Price

SPRING

5JG142750000 5JG142750000

9,06 $

Unit Price

COLLAR

5JG142640000 5JG142640000

15,10 $

Unit Price

JET, NEEDLE

5TJ149470000 5TJ149470000

61,16 $

Unit Price

JET, MAIN (#160)

4MX149433900 4MX149433900

14,01 $

Unit Price

JET, MAIN (#165)

4MX149434000 4MX149434000

14,01 $

Unit Price

JET, MAIN (#170)

4MX149434100 4MX149434100

14,01 $

Unit Price

JET, MAIN (#175)

4MX149434200 4MX149434200

14,01 $

Unit Price

JET, MAIN (#180)

4MX149434300 4MX149434300

14,01 $

Unit Price

JET, MAIN (#185)

4MX149434400 4MX149434400

14,01 $

Unit Price

JET, MAIN (#162)

4MX149439000 4MX149439000

14,00 $

Unit Price

JET, MAIN (#168)

4MX149439100 4MX149439100

14,00 $

Unit Price

JET, MAIN (#172)

4MX149439200 4MX149439200

14,00 $

Unit Price

JET, MAIN (#182)

4MX149439400 4MX149439400

14,00 $

Unit Price

JET, MAIN (#178)

4MX149439300 4MX149439300

14,00 $

Unit Price

JET, PILOT (#45)

4MX149480500 4MX149480500

11,92 $

Unit Price

JET, PILOT (#48)

4MX149480600 4MX149480600

11,92 $

Unit Price

JET, PILOT (#50)

4MX149480700 4MX149480700

11,69 $

Unit Price

JET, PILOT (#52)

4MX149480800 4MX149480800

11,69 $

Unit Price

JET, PILOT (#55)

4MX149480900 4MX149480900

11,69 $

Unit Price

JET 1 (#60)

3TJ1494F1100 3TJ1494F1100

17,90 $

Unit Price

JET

3TJ1494F1200 3TJ1494F1200

17,90 $

Unit Price

JET

3TJ1494F1300 3TJ1494F1300

17,90 $

Unit Price

JET

3TJ1494F1400 3TJ1494F1400

17,90 $

Unit Price

JET

3TJ1494F1500 3TJ1494F1500

17,90 $

Unit Price

JET, MAIN (#70)

5TA149431500 5TA149431500

15,67 $

Unit Price

JET (#35)

4JT1494F0100 4JT1494F0100

14,75 $

Unit Price

JET (#40)

4JT1494F0300 4JT1494F0300

13,20 $

Unit Price

JET

4JT1494F0500 4JT1494F0500

15,60 $

Unit Price

JET (#50)

4JT1494F0700 4JT1494F0700

13,20 $

Unit Price

JET (#55)

4JT1494F0900 4JT1494F0900

13,20 $

Unit Price

JET (#60)

4JT1494F1100 4JT1494F1100

14,75 $

Unit Price

JET (#65)

4JT1494F1300 4JT1494F1300

14,75 $

Unit Price

PILOT SCREW SET

5NL141050000 5NL141050000

44,12 $

Unit Price

FLOAT

4SR149850000 4SR149850000

80,94 $

Unit Price

PIN, ARM

676145480000

663145480000

8,87 $

Unit Price

VALVE, NEEDLE

4MX143920000 4MX143920000

42,17 $

Unit Price

CLIP

633141590000 633141590000

13,35 $

Unit Price

GASKET, FLOAT CHAMBER

5JG149840000 5JG149840000

31,46 $

Unit Price

PLUG, DRAIN

3TJ141914000 3TJ141914000

23,47 $

Unit Price

COVER 1

3TJ142934000 3TJ142934000

51,38 $

Unit Price

DIAPHRAGM ASSY

5JG149401700 5JG149401700

63,76 $

Unit Price

DIAPHRAGM ASSY

5JG149401800 5JG149401800

72,40 $

Unit Price

DIAPHRAGM ASSY

5JG149401900 5JG149401900

35,93 $

Unit Price

GASKET

3TJ145364000 3TJ145364000

4,53 $

Unit Price

SPRING, DIAPHRAGM

5GS149334000 5GS149334000

6,48 $

Unit Price

O-RING

6H4145610000 6H4145610000

8,19 $

Unit Price

PLUNGER, STARTER

5XC141710000 5XC141710000

49,28 $

Unit Price

PLUNGER, STARTER

5TA143710000 5TA143710000

35,98 $

Unit Price

SPRING, PLUNGER

5TA143350000 5TA143350000

10,68 $

Unit Price

SCREW

5TA149910000 5TA149910000

15,96 $

Unit Price

LEVER COMP. 1

2S2142080000 2S2142080000

12,10 $

Unit Price

GUIDE, CABLE

5TA141550000 5TA141550000

20,35 $

Unit Price

SEAL

5TA149970000 5TA149970000

15,98 $

Unit Price

ROD, STARTER

5JG143790000 5JG143790000

40,73 $

Unit Price

SCREW, THROTTLE

5XC149220000 5XC149220000

126,28 $

Unit Price

WASHER, PLATE(3TJ)

902010841000 902010841000

2,27 $

Unit Price

SPRING, THROTTLE STOP

5TA149340000 5TA149340000

3,03 $

Unit Price

THROTTLE SENSOR ASSY

5XC858850000 5XC858850000

409,46 $

Unit Price

O-RING

5NX145620000

33D145620000

9,52 $

Unit Price

SCREW

5NX142160000

1DX142160000

5,79 $

Unit Price

O-RING

4MX145610000 4MX145610000

14,46 $

Unit Price

PLUG, SCREW

4MX141150000 4MX141150000

39,72 $

Unit Price

CLIP

3TJ141374000 3TJ141374000

9,60 $

Unit Price

PLATE

5BE141460000 5BE141460000

10,04 $

Unit Price

HOLDER

5TA142610000 5TA142610000

29,21 $

Unit Price

PIPE

5UL141960000 5UL141960000

22,59 $

Unit Price

PIPE

5TA141970000 5TA141970000

16,51 $

Unit Price

HOSE

5TJ149870000 5TJ149870000

15,64 $

Unit Price

PLATE

5JG143460000 5JG143460000

52,69 $

Unit Price

SCREW

5JG145650000 5JG145650000

4,94 $

Unit Price

SPRING, ADJUST SCREW

5JG145310000 5JG145310000

4,94 $

Unit Price

SCREW

5TJ145911000

5TJ145911900

49,44 $

Unit Price

.VIS VIS

5TJ145912000 5TJ145912000

Not available

PLATE

5PA141460000 5PA141460000

12,52 $

Unit Price

DIAPHRAGM ASSY

5GS149400000 5GS149400000

66,27 $

Unit Price

COVER, DIAPHRAGM

5GS149580000 5GS149580000

50,19 $

Unit Price

SPRING, DIAPHRAGM

5GS149330000 5GS149330000

10,25 $

Unit Price

.VIS HEXAGONAL VIS HEXAGONAL

976020411000 976020411000

Not available

O-RING

3TJ145644000 3TJ145644000

7,55 $

Unit Price

.DURITE DURITE

5UM141970000 5UM141970000

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
