CATALOGUE

CYLINDER FOR YAMAHA YZF 1998

CRANKSHAFT / PISTON

CYLINDER HEAD ASSY

5BE111020000

5BE111021000

1 313,56 $

Unit Price

GUIDE, INTAKE VALVE

5BE111331000 5BE111331000

93,41 $

Unit Price

GUIDE, EXHAUST VALVE

5BE111341000 5BE111341000

53,05 $

Unit Price

CIRCLIP(1WG)

934401015300 934401015300

0,89 $

Unit Price

PIN, DOWEL(3XW)

918081602300 918081602300

4,63 $

Unit Price

BOLT, WASHER BASED (4H7)

901050615300 901050615300

4,04 $

Unit Price

PLUG, STRAIGHT SCREW(1HX)

903401211200 903401211200

11,78 $

Unit Price

DURITE

5BE135820000 5BE135820000

Not available

BOLT, STUD (4KG1)

956170663500 956170663500

2,48 $

Unit Price

BOLT, STUD 3

956170863500 956170863500

5,94 $

Unit Price

BOLT, STUD(2GG)

956170862000 956170862000

5,65 $

Unit Price

NUT, FLANGE(JN5)

957070850000 957070850000

1,74 $

Unit Price

SPARK PLUG CR9E

947010031800

NGKCR9E01000

9,87 $

Unit Price

SPARK PLUG CR8E

947010032900

NGKCR8E01000

9,87 $

Unit Price

GASKET, CYLINDER HEAD 1

5BE111810000

5GR111810000

96,94 $

Unit Price

BOLT, WASHER BASED

90105104A700 90105104A700

10,24 $

Unit Price

BOLT, WASHER BASED

90105106A300 90105106A300

11,74 $

Unit Price

WASHER, PLATE (26H)

90201101A400

90201102G900

7,77 $

Unit Price

COUVERCLE, CULASSE 1

5BE111910000 5BE111910000

Not available

COUVERCLE, RENIFLARD 2

5BE111670000 5BE111670000

Not available

BOLT(4BP)

90109066F000 90109066F000

10,14 $

Unit Price

RUBBER, MOUNT 1

4KG1111G0000

5EA1111G0000

23,73 $

Unit Price

PIPE, BREATHER 2

371111670100 371111670100

15,69 $

Unit Price

PIPE, BREATHER 1

5BE111660000 5BE111660000

65,99 $

Unit Price

HOSE (L700)

90445112K000

90445117F200

20,10 $

Unit Price

CLIP(1JH)

904671110600 904671110600

4,00 $

Unit Price

CLIP (371)

904671401500 904671401500

6,72 $

Unit Price

GASKET, HEAD COVER 1

5BE111930000

5BE111931000

62,06 $

Unit Price

CYLINDER 1

5BE113110000

5BE113112100

730,26 $

Unit Price

GASKET, CYLINDER

5BE113510000 5BE113510000

16,25 $

Unit Price

NUT (1AE)

901790650000 901790650000

6,80 $

Unit Price

PIN, DOWEL(4XL)

936121625400 936121625400

6,52 $

Unit Price

NUT, FLANGE (J10)

901790827000 901790827000

4,10 $

Unit Price

BOLT, SMALL FLANGE

950270604000 950270604000

2,46 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

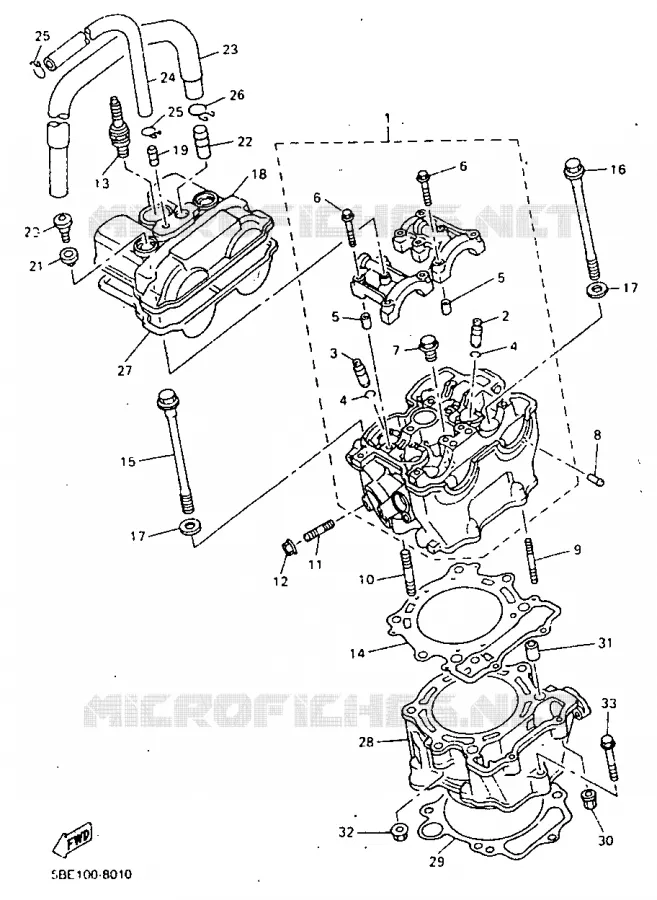

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER of your Yamaha YZ400F of 1998. Let us know if you have any questions.
