STEERING

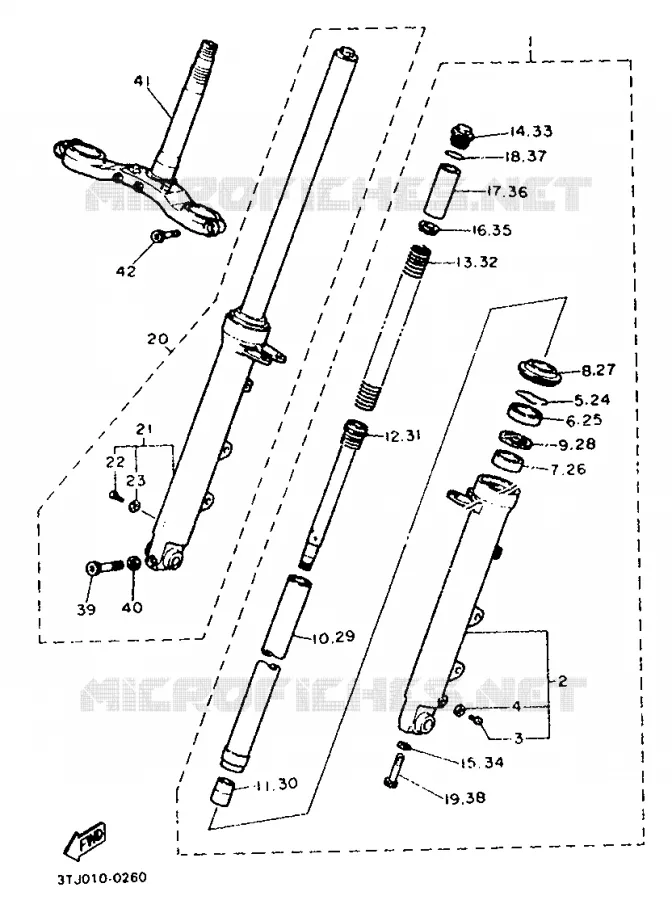

FRONT FORK FOR YAMAHA FZR 1992

FUEL TANK

FOURCHE AVANT COMPLETE (G)

3TJ231020000 3TJ231020000

Not available

.BAS DE FOURCHE BAS DE FOURCHE

3TJ231260000 3TJ231260000

Not available

SCREW, PAN HEAD(3XP)

4H7231190000

985170400600

6,22 $

Unit Price

GASKET, DRAIN PLUG

122231290000 122231290000

4,41 $

Unit Price

RING, SNAP

4V423153L000 4V423153L000

8,54 $

Unit Price

OIL SEAL

3GM231450000

3XJ23145L000

34,08 $

Unit Price

METAL, SLIDE 1

3XJ23125L000

5EB231250000

28,07 $

Unit Price

SEAL, DUST

3GM231440000

4PU231440000

24,78 $

Unit Price

WASHER

4V423146L000 4V423146L000

13,34 $

Unit Price

.TUBE DE FOURCHE NUE TUBE DE FOURCHE NUE

3TJ231100000 3TJ231100000

Not available

SPINDLE, TAPER

3GM231730000 3GM231730000

34,00 $

Unit Price

.CYLINDRE DE FOURCHE AV CYLINDRE DE FOURCHE AV

3TJ231700000 3TJ231700000

Not available

.RESSORT, FOURCHE AVANT RESSORT, FOURCHE AVANT

3TJ231410000 3TJ231410000

Not available

BOLT, CAP

3TJ231110000 3TJ231110000

115,76 $

Unit Price

.JOINT JOINT

4V423158L100 4V423158L100

Not available

SEAT, SPRING UPPER

3GM231420000

4V423142L000

5,56 $

Unit Price

.ENTRETOISE (L=135MM) ENTRETOISE (L=135MM)

1LX23118M000 1LX23118M000

Not available

O-RING

4V423188L000

4V423188L100

11,26 $

Unit Price

BOLT

4V423181L000 4V423181L000

8,37 $

Unit Price

FOURCHE AVANT COMPLETE (D)

3TJ231030000 3TJ231030000

Not available

.BAS DE FOURCHE BAS DE FOURCHE

3TJ231360000 3TJ231360000

Not available

SCREW, PAN HEAD(3XP)

4H7231190000

985170400600

6,22 $

Unit Price

GASKET, DRAIN PLUG

122231290000 122231290000

4,41 $

Unit Price

RING, SNAP

4V423153L000 4V423153L000

8,54 $

Unit Price

OIL SEAL

3GM231450000

3XJ23145L000

34,08 $

Unit Price

METAL, SLIDE 1

3XJ23125L000

5EB231250000

28,07 $

Unit Price

SEAL, DUST

3GM231440000

4PU231440000

24,78 $

Unit Price

WASHER

4V423146L000 4V423146L000

13,34 $

Unit Price

.TUBE DE FOURCHE NUE TUBE DE FOURCHE NUE

3TJ231100000 3TJ231100000

Not available

SPINDLE, TAPER

3GM231730000 3GM231730000

34,00 $

Unit Price

.CYLINDRE DE FOURCHE AV CYLINDRE DE FOURCHE AV

3TJ231700000 3TJ231700000

Not available

.RESSORT, FOURCHE AVANT RESSORT, FOURCHE AVANT

3TJ231410000 3TJ231410000

Not available

BOLT, CAP

3TJ231110000 3TJ231110000

115,76 $

Unit Price

GASKET

4V423158L000 4V423158L000

8,54 $

Unit Price

SEAT, SPRING UPPER

3GM231420000

4V423142L000

5,56 $

Unit Price

.ENTRETOISE (L=135MM) ENTRETOISE (L=135MM)

1LX23118M000 1LX23118M000

Not available

O-RING

4V423188L000

4V423188L100

11,26 $

Unit Price

BOLT

4V423181L000 4V423181L000

8,37 $

Unit Price

BOLT, SOCKET

913110804500

913170804500

8,97 $

Unit Price

WASHER PLATE 141181390000

902010808500 902010808500

5,68 $

Unit Price

TE DE FOURCHE INFERIEUR

3TJ233400000 3TJ233400000

Not available

BOLT (3TJ)

913111203000

913171203000

6,90 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Yamaha FZR400RR of 1992. Let us know if you have any questions.
