CYLINDER

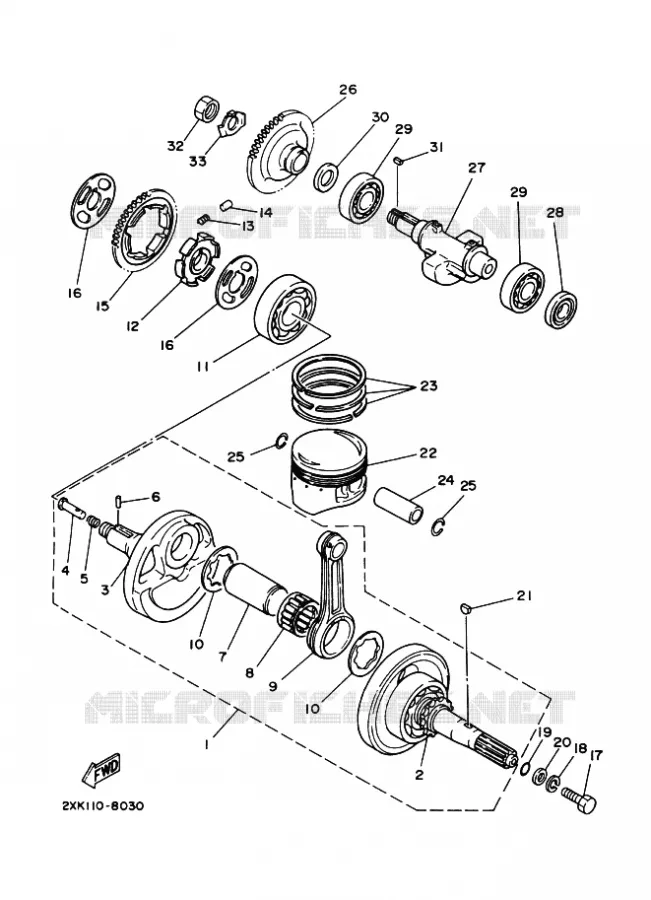

CRANKSHAFT / PISTON FOR YAMAHA RAPTOR 2007

VALVE

Item numbers

CRANKSHAFT ASSY

1UY114000000 1UY114000000

1 147,66 $

Unit Price

CRANK SUB ASSY 1

1UYW11410000

1UY114010900

445,24 $

Unit Price

CRANK 2

1UY114220000 1UY114220000

451,01 $

Unit Price

PIN, CLEVIS(30X)

902400710500 902400710500

20,15 $

Unit Price

SPRING, COMPRESSION (5H0)

905010762900 905010762900

2,68 $

Unit Price

PIN, DOWEL (5H0)

936021317700 936021317700

4,24 $

Unit Price

PIN, CRANK 1

30X116810000 30X116810000

78,38 $

Unit Price

BEARING, CYLINDRICAL(2JN)

93310633T500 93310633T500

73,39 $

Unit Price

ROD, CONNECTING

1UY116510000 1UY116510000

103,85 $

Unit Price

WASHER (30X)

902093325300 902093325300

15,10 $

Unit Price

BEARING(3KW)

933063062200

933063063000

91,96 $

Unit Price

BOSS, BUFFER

30X114960000 30X114960000

61,23 $

Unit Price

SPRING, COMPRESSION (5Y1)

905012272100 905012272100

3,41 $

Unit Price

PIN, DOWEL

936051009000 936051009000

5,10 $

Unit Price

GEAR, BALANCE WT

3Y1115310200 3Y1115310200

104,18 $

Unit Price

WASHER, BEARING COVER

30X115650000 30X115650000

9,27 $

Unit Price

BOLT (21V)

901011056800 901011056800

5,64 $

Unit Price

WASHER(6TA)

929071010000 929071010000

2,10 $

Unit Price

O-RING (538)

932101629000 932101629000

10,62 $

Unit Price

WASHER, PLATE

90201107F800

902011005800

10,51 $

Unit Price

KEY, WOODRUFF

902800504800

902800500100

13,31 $

Unit Price

PISTON (STD)

5UH1163100C0 5UH1163100C0

125,24 $

Unit Price

PISTON (0.50MM O-S)

5UH116360000 5UH116360000

125,26 $

Unit Price

PISTON (1.00MM O-S)

5UH116380000 5UH116380000

125,26 $

Unit Price

PISTON RING SET (STD)

4GB116100000 4GB116100000

75,63 $

Unit Price

PISTON RING SET (0.50MM O-S)

4GB116102000 4GB116102000

75,85 $

Unit Price

PISTON RING SET (1.00MM O-S)

4GB116104000 4GB116104000

75,85 $

Unit Price

PIN, PISTON

55V116330000 55V116330000

39,53 $

Unit Price

CIRCLIP (26H)

934501909500 934501909500

0,74 $

Unit Price

GEAR, DRIVE

1UY115360100 1UY115360100

139,37 $

Unit Price

WEIGHT 1

1UY114540000 1UY114540000

235,80 $

Unit Price

OIL SEAL (5Y1)

931012510600 931012510600

12,77 $

Unit Price

BEARING

933062053200 933062053200

27,27 $

Unit Price

WASHER, PLATE (30X)

90201207G600 90201207G600

10,74 $

Unit Price

KEY, STRAIGHT (3L5)

902820503400 902820503400

3,94 $

Unit Price

NUT, HEXAGON (30X)

901701632600 901701632600

15,10 $

Unit Price

WASHER, LOCK(2NL)

902151627000 902151627000

12,69 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
