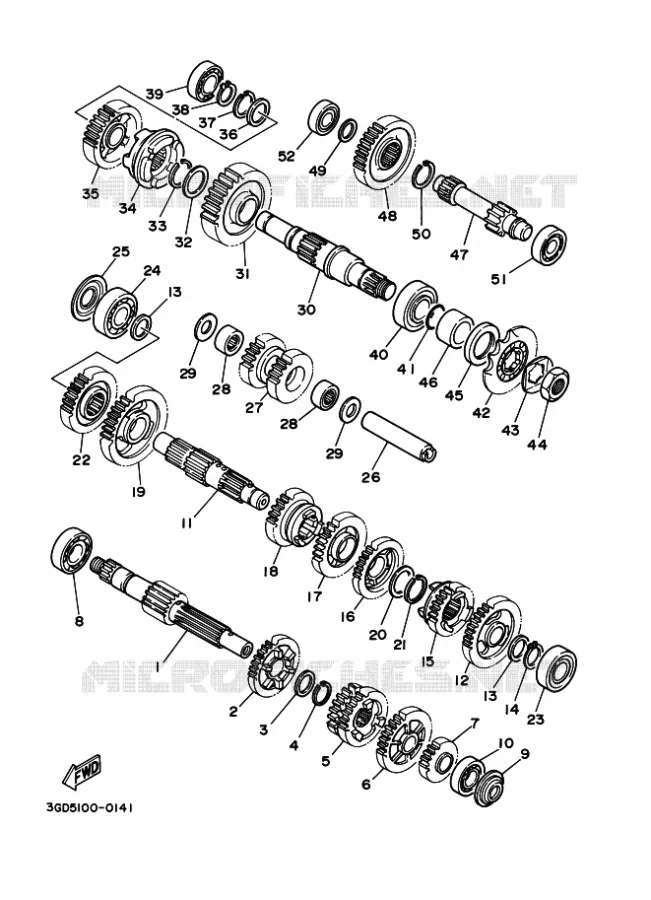

TRANSMISSION FOR YAMAHA WARRIOR 2002

GEAR SHIFT SELECTOR DRUM / FORKS

Item numbers

MAIN AXLE ASSY

1UY174110100

1UY174010100

203,33 $

Unit Price

GEAR, 5TH PINION

1UY171510000 1UY171510000

102,35 $

Unit Price

WASHER (5H0)

902091820800 902091820800

6,09 $

Unit Price

CIRCLIP (537)

934102203900 934102203900

7,20 $

Unit Price

GEAR, 3RD PINION

1UY171310000 1UY171310000

85,27 $

Unit Price

GEAR, 6TH PINION

1UY171610100 1UY171610100

69,21 $

Unit Price

GEAR, 2ND PINION

1UY171210000 1UY171210000

49,07 $

Unit Price

BEARING (30X)

933062720200

933062044700

43,32 $

Unit Price

OIL SEAL(59V)

931041709400 931041709400

10,80 $

Unit Price

BEARING (7X9)

933062030100

933062032700

36,81 $

Unit Price

AXLE, DRIVE

1UY174210100

1UY174210200

180,05 $

Unit Price

GEAR, 2ND WHEEL

1UY172210000 1UY172210000

84,40 $

Unit Price

WASHER, PLATE (5N0)

90201203E700 90201203E700

7,43 $

Unit Price

CIRCLIP (525)

934102003800 934102003800

4,21 $

Unit Price

6EME PIGNON SECONDAIRE

1UY172610000 1UY172610000

Not available

GEAR, 4TH WHEEL

1UY172410000 1UY172410000

119,24 $

Unit Price

GEAR, 3RD WHEEL

1UY172310100 1UY172310100

79,21 $

Unit Price

GEAR, 5TH WHEEL

1UY172510000 1UY172510000

71,57 $

Unit Price

GEAR, 1ST WHEEL

1UY172110000 1UY172110000

100,14 $

Unit Price

WASHER, PLATE (5F7)

90201256E600 90201256E600

7,38 $

Unit Price

CIRCLIP (4L0)

934402508400 934402508400

12,96 $

Unit Price

GEAR, HIGH PINION

1UY171230000 1UY171230000

97,10 $

Unit Price

BEARING(1YW)

933062040100

933062046100

43,33 $

Unit Price

BEARING

933063042400

933063044300

56,85 $

Unit Price

OIL SEAL (4X7)

931042006800 931042006800

11,63 $

Unit Price

AXLE, IDLE

1UY174320100 1UY174320100

32,49 $

Unit Price

GEAR, HIGH WHEEL

1UY172230100

1UY172230200

212,38 $

Unit Price

BEARING, CYLINDRICAL(37F)

933115155400 933115155400

64,55 $

Unit Price

WASHER, PLATE(3GD)

90201150U600 90201150U600

10,59 $

Unit Price

SHAFT

1UY175230000 1UY175230000

280,99 $

Unit Price

GEAR, REVERSE WHEEL 2

1UY172530000 1UY172530000

182,82 $

Unit Price

WASHER, GEAR HOLD 1

902012866500

4A0171160010

18,19 $

Unit Price

CIRCLIP (2H7)

934402806200 934402806200

9,22 $

Unit Price

CLUTCH, DOG

1UY172850000 1UY172850000

90,00 $

Unit Price

GEAR, MIDDLE DRIVE

1UY175820000 1UY175820000

150,89 $

Unit Price

WASHER, PLATE (3Y1)

902012279300 902012279300

2,78 $

Unit Price

CIRCLIP (537)

934102203900 934102203900

7,20 $

Unit Price

CIRCLIP (525)

934102003800 934102003800

4,21 $

Unit Price

BEARING (34L)

933060043100 933060043100

47,38 $

Unit Price

BEARING (3Y1)

933062050100

933062054100

41,87 $

Unit Price

O-RING

932102216400

932102229800

10,50 $

Unit Price

SPROCKET, DRIVE (13T)(4RF)

938341303000

938341320600

32,61 $

Unit Price

WASHER, LOCK (23X)

902152123900 902152123900

11,27 $

Unit Price

NUT (2K7)

901792025500 901792025500

19,23 $

Unit Price

OIL SEAL(1UY)

931023539300 931023539300

20,71 $

Unit Price

COLLAR

90387257N400 90387257N400

26,36 $

Unit Price

AXLE, COUNTER

1UY174310000 1UY174310000

143,68 $

Unit Price

GEAR, REVERSE WHEEL1

1UY172430000 1UY172430000

63,76 $

Unit Price

WASHER, PLATE (30X)

902011725500

90201177G400

8,01 $

Unit Price

CIRCLIP (4L0)

934402508400 934402508400

12,96 $

Unit Price

BEARING (7X9)

933062030100

933062032700

36,81 $

Unit Price

BEARING(2JN)

933060030800

933060031500

32,64 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION of your Yamaha YFM350X of 2002. Let us know if you have any questions.
