SWITCH / LEVER

ELECTRICAL 1 FOR YAMAHA XT 1992

RECTIFIER & REGULATOR

33G819606000 33G819606000

126,00 $

Unit Price

SCREW, PAN

985020601200

985170601200

2,10 $

Unit Price

IGNITION COIL ASSY

30X823104000

3SR823101000

170,64 $

Unit Price

SCREW PAN HEAD

985010602000

985800602000

5,09 $

Unit Price

PLUG CAP ASSY

371823700000

4VW823700000

71,66 $

Unit Price

NEUTRAL SWITCH ASSY

2H7825400000

4GY825401000

30,06 $

Unit Price

GASKET (5R6)

904301017100 904301017100

6,32 $

Unit Price

BLOC DE CONTROLE

4Y385590M000 4Y385590M000

Not available

SCREW PAN HEAD

985010602000

985800602000

5,09 $

Unit Price

WASHER, PLAIN (646)

929900660000 929900660000

2,09 $

Unit Price

BAT YB3L-B YU NA

30W821107900

YB3LB0000000

67,91 $

Unit Price

HOSE (L1500)

904450833600

90445084J000

21,15 $

Unit Price

BAND, BATTERY

22F821310000 22F821310000

15,89 $

Unit Price

WIRE, PLUS LEAD

1M1821150000 1M1821150000

12,11 $

Unit Price

WIRE, LEAD

558821160000 558821160000

4,88 $

Unit Price

FUSE HOLDER ASSY

55K821500100

55K821500200

24,32 $

Unit Price

FUSE

116821510000

1A0821510000

5,85 $

Unit Price

CONTACTEUR A CLEF COMPLET

59Y825100000 59Y825100000

Not available

SCREW(1KT)

901490622800 901490622800

5,18 $

Unit Price

WASHER, PLAIN (646)

929900660000 929900660000

2,09 $

Unit Price

STOP SWITCH ASSY

30X825300200 30X825300200

28,16 $

Unit Price

FAISCEAU DE FILS COMPLET

3YT825901000 3YT825901000

Not available

.CONDENSATEUR 1 CONDENSATEUR 1

57T813250000 57T813250000

Not available

BAND

12R825910000 12R825910000

3,18 $

Unit Price

CLAMP

437839360100

904643001400

1,33 $

Unit Price

BAND, SWITCH CORD

25G839360100 25G839360100

6,05 $

Unit Price

COMMUTATEUR

3MB825660000 3MB825660000

Not available

SCREW, PAN HEAD

985060501400

985070501400

2,23 $

Unit Price

RELAIS DES CLIGNOTANTS CPLT

1U3833504000 1U3833504000

Not available

HORN

55V833710000 55V833710000

54,65 $

Unit Price

BOLT, SMALL FLANGE

950260801200

950270801200

3,94 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

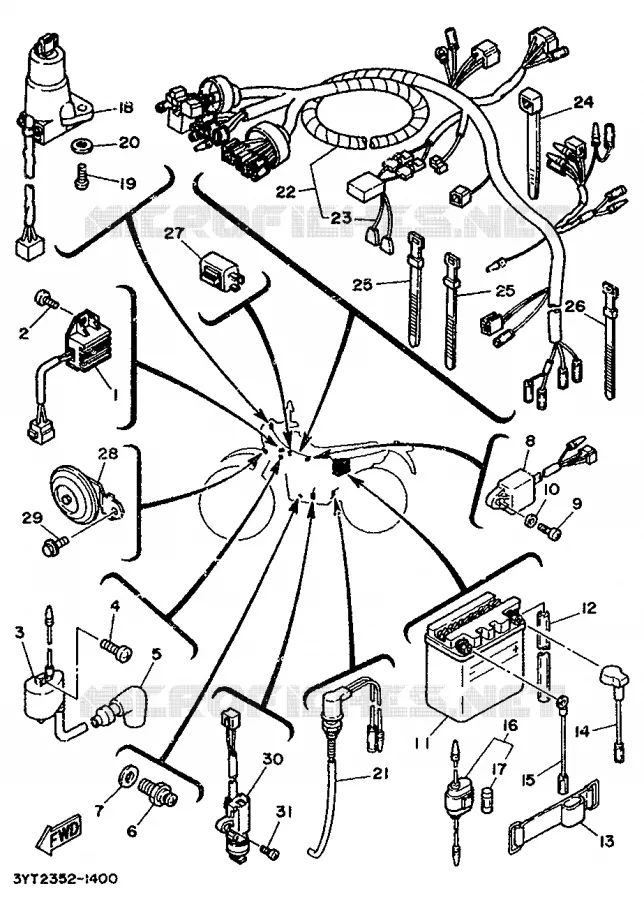

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL 1 of your Yamaha XT350 of 1992. Let us know if you have any questions.

Select your Yamaha XT model from 1992
