STARTER MOTOR

STARTER CLUTCH FOR YAMAHA XT 1986

TRANSMISSION

PIGNON D ENTRAINEMT PRIMAIRE

30X161110000 30X161110000

Not available

KEY, STRAIGHT (30X)

902820705700 902820705700

5,49 $

Unit Price

WASHER, LOCK (3Y1)

902151615600 902151615600

4,71 $

Unit Price

WASHER, LOCK (30X)

902151622200 902151622200

5,14 $

Unit Price

NUT(24V)

901701634300 901701634300

9,24 $

Unit Price

CLOCHE D EMBRAYAGE CPLTE

55V161500000 55V161500000

Not available

PLATE, THRUST 1

30X161540000 30X161540000

13,28 $

Unit Price

BOSS, CLUTCH

55V163710000 55V163710000

257,86 $

Unit Price

DISQUE 2, FRICTION

4H7163310100 4H7163310100

Not available

PLATE, CLUTCH 2

4H7163250000

168163251000

18,19 $

Unit Price

PLATE, CLUTCH 1

3J2163240000

3J2163241000

23,34 $

Unit Price

PLATE, PRESSURE 1

5Y1163510000 5Y1163510000

65,36 $

Unit Price

SPRING (583 CLUTCH)

905012339100 905012339100

9,29 $

Unit Price

SCREW, WITH WASHER (583)

901590601000 901590601000

6,83 $

Unit Price

PLATE, PUSH

30X163580000

1W1163580100

13,75 $

Unit Price

DISQUE, PRESSION 3

55V163530000 55V163530000

Not available

WASHER(6TA)

929010660000

929070660000

1,83 $

Unit Price

NUT(661)

953010660000

953800660000

2,14 $

Unit Price

O-RING (26H)

932100663200 932100663200

6,63 $

Unit Price

WASHER, LOCK (30X)

902151624500

902151632000

8,62 $

Unit Price

NUT, HEXAGON (30X)

901701632600 901701632600

15,10 $

Unit Price

LEVIER DE DEBRAYAGE

55V163800000 55V163800000

Not available

SCREW 425163430000

901490806700 901490806700

4,72 $

Unit Price

GASKET

904300811900 904300811900

2,19 $

Unit Price

SPRING, TORSION (3Y1)

905081443300 905081443300

3,38 $

Unit Price

CIRCLIP (3Y1)

934202805500 934202805500

2,16 $

Unit Price

OIL SEAL (3Y1)

931021420900 931021420900

14,75 $

Unit Price

BEARING, CYLINDRICAL (3Y1)

933153142800 933153142800

23,52 $

Unit Price

TIGE DE DEBRAYAGE 2

30X163570000 30X163570000

Not available

BALL (498)

935113201700

935113202700

5,17 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

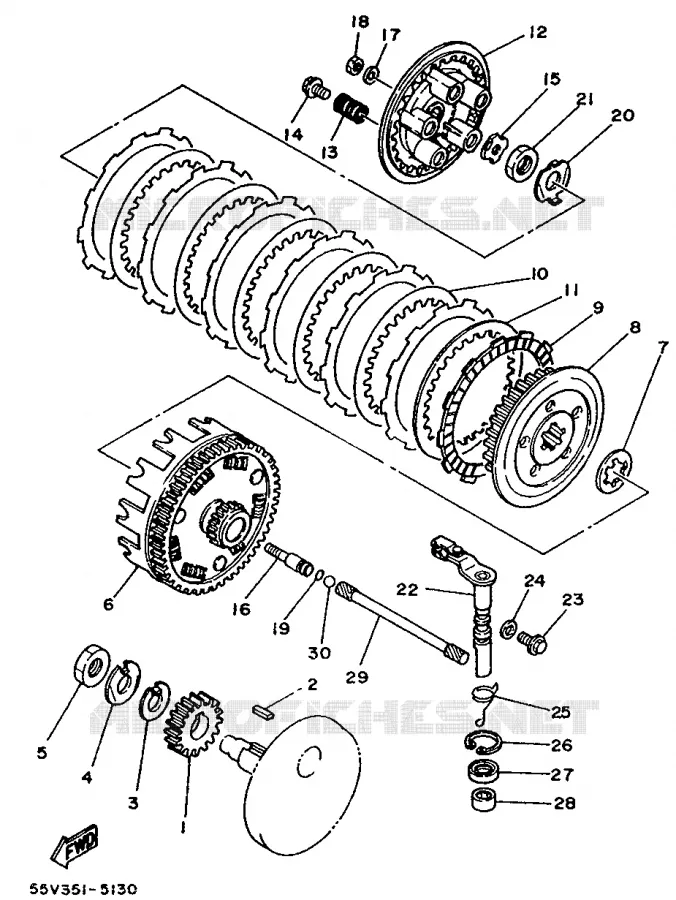

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STARTER CLUTCH of your Yamaha XT350N (13KW) of 1986. Let us know if you have any questions.
