FRONT MASTER CYLINDER

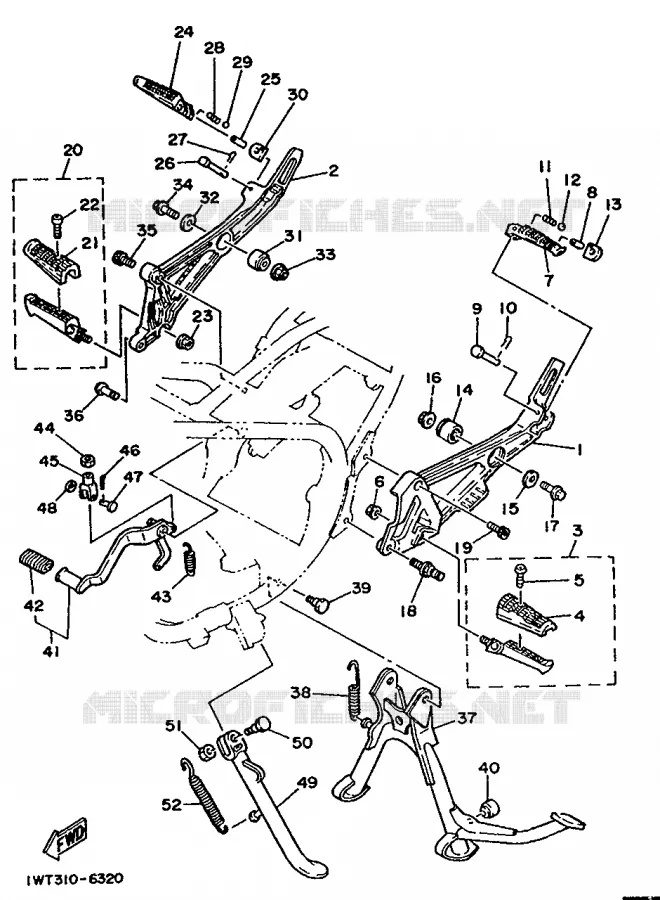

STAND / FOOTREST FOR YAMAHA RDLC 1986

REAR BRAKE MASTER CYLINDER

SUPPORT 2

1UA274420000 1UA274420000

Not available

SUPPORT 3

1UA274430000 1UA274430000

Not available

FRONT FOOTREST ASSY (LEFT)

1UA274100000 1UA274100000

166,02 $

Unit Price

COVER, FOOTREST

46X274130000

2GH274130000

47,13 $

Unit Price

SCREW, PAN HEAD

901570507900

985070501400

2,23 $

Unit Price

NUT, SELF-LOCKING (8U7)

901851011500 901851011500

3,73 $

Unit Price

FOOTREST, REAR 1

1HX274310000

3VR274310200

43,58 $

Unit Price

COLLAR (10L)

90387061G000 90387061G000

3,82 $

Unit Price

PIN, CLEVIS(1UA)

917010604500 917010604500

1,74 $

Unit Price

COTTER PIN

914012001500

914012002000

3,75 $

Unit Price

SPRING, COMPRESSION (22N)

905011274300 905011274300

3,98 $

Unit Price

BALL

935010400400

935010401100

0,74 $

Unit Price

WASHER, SPECIAL

1HX274370000 1HX274370000

7,44 $

Unit Price

DAMPER, FOOTREST

29L274140100

29L274140200

28,84 $

Unit Price

WASHER (29L)

902090824900 902090824900

7,77 $

Unit Price

NUT, SELF-LOCKING(3BN)

901850809700

901850814600

6,72 $

Unit Price

BOLT, FLANGE

901050828400

958170804000

4,24 $

Unit Price

BOULON

901091075400 901091075400

Not available

BOLT, SOCKET

913161003000

913171003000

6,02 $

Unit Price

FRONT FOOTREST ASSY (RIGHT)

1UA274200000 1UA274200000

166,02 $

Unit Price

COVER, FOOTREST

46X274130000

2GH274130000

47,13 $

Unit Price

SCREW, PAN HEAD

901570507900

985070501400

2,23 $

Unit Price

NUT, SELF-LOCKING (8U7)

901851011500 901851011500

3,73 $

Unit Price

FOOTREST, REAR 2

1HX274410000

3VR274410200

43,58 $

Unit Price

COLLAR (10L)

90387061G000 90387061G000

3,82 $

Unit Price

PIN, CLEVIS(1UA)

917010604500 917010604500

1,74 $

Unit Price

COTTER PIN

914012001500

914012002000

3,75 $

Unit Price

SPRING, COMPRESSION (22N)

905011274300 905011274300

3,98 $

Unit Price

BALL

935010400400

935010401100

0,74 $

Unit Price

WASHER, SPECIAL

1HX274370000 1HX274370000

7,44 $

Unit Price

DAMPER, FOOTREST

29L274140100

29L274140200

28,84 $

Unit Price

WASHER (29L)

902090824900 902090824900

7,77 $

Unit Price

NUT, SELF-LOCKING(3BN)

901850809700

901850814600

6,72 $

Unit Price

BOLT, FLANGE

901050828400

958170804000

4,24 $

Unit Price

BOLT, SOCKET

913161003000

913171003000

6,02 $

Unit Price

BOLT, HEX. SOCKET BUTTON

901491023200

901111001700

5,28 $

Unit Price

MAIN STAND

29L2711101R4

1YHF71110000

172,83 $

Unit Price

SPRING, TENSION

905063534900 905063534900

10,51 $

Unit Price

BOLT (29L)

901091073700 901091073700

4,70 $

Unit Price

STOPPER, MAIN STAND

109271140000 109271140000

6,27 $

Unit Price

BRAKE PEDAL

51L272000000 51L272000000

31,15 $

Unit Price

COVER, SHIFT PEDAL

22N181130000 22N181130000

15,55 $

Unit Price

SPRING, TENSION (2X4)

905062019200 905062019200

12,96 $

Unit Price

NUT(661)

953010870000

953800870000

4,47 $

Unit Price

JOINT

1J3272220100

47X272220000

19,94 $

Unit Price

PIN, COTTER (E57)

914011601200

914901602000

3,78 $

Unit Price

PIN W-HOLE 307181180000

902400801300 902400801300

7,43 $

Unit Price

WASHER, PLATE 1562722600

902010808300 902010808300

6,72 $

Unit Price

SIDE STAND

1UA2731100R4

1UA273110200

39,66 $

Unit Price

BOLT

901091059000

901091047300

4,69 $

Unit Price

NUT, U

901851003700 901851003700

9,07 $

Unit Price

SPRING (4L0)

905072903200 905072903200

18,43 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STAND / FOOTREST of your Yamaha RD350LC of 1986. Let us know if you have any questions.
