ELECTRICAL 1

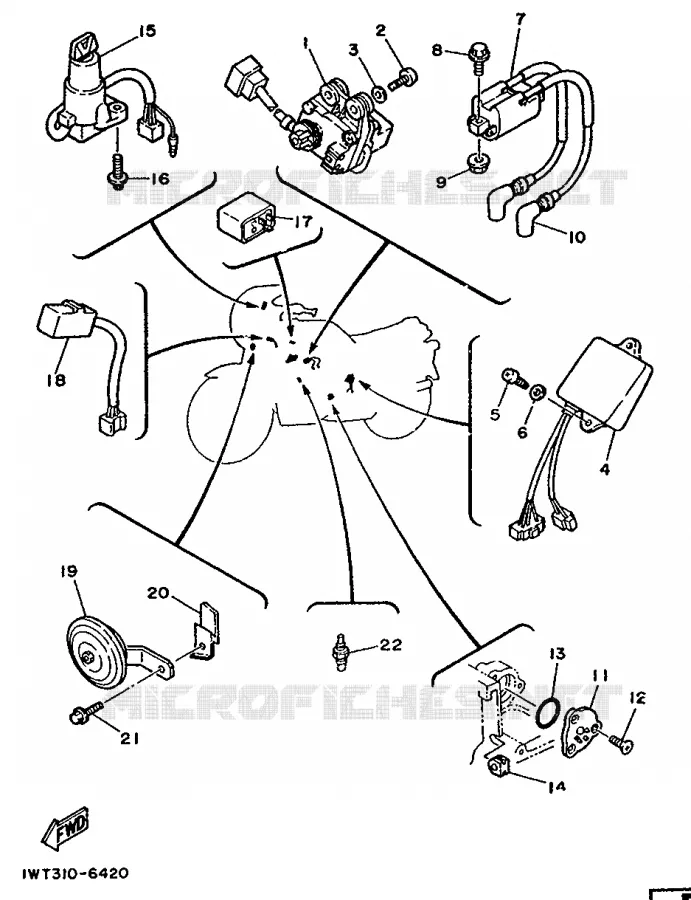

ELECTRICAL 2 FOR YAMAHA RDLC 1986

ASSEMBLAGE DE SERVO-MOTEUR

1UA858200000 1UA858200000

Not available

SCREW, PAN HEAD (76T)

925010602500

985170602500

2,10 $

Unit Price

WASHER, PLATE

902010606700

902010638000

5,48 $

Unit Price

BLOC DE CONTROLE

1UA858300000 1UA858300000

Not available

SCREW, PANHEAD TAPPING (J20)

977026011600

977806011600

4,11 $

Unit Price

YBS66-6 WASHER, PLAIN

929900620000 929900620000

1,68 $

Unit Price

IGNITION COIL ASSY

1UA823105000

3LC823100100

286,40 $

Unit Price

BOLT, HEXAGON

980020601800

970170602000

2,42 $

Unit Price

NUT, FLANGE(7NB)

957020610000

957800650000

3,18 $

Unit Price

PLUG CAP ASSY

1M1823702100

8DG823700000

51,40 $

Unit Price

NEUTRAL SWITCH ASSY

1L9825400000 1L9825400000

21,54 $

Unit Price

SCREW, FLAT

987020501200

987070501200

2,10 $

Unit Price

O-RING (371)

932102914700

932102919600

10,15 $

Unit Price

GROMMET

904800114800 904800114800

1,83 $

Unit Price

SWITCH, MAIN STEERING

1UA825010000 1UA825010000

145,74 $

Unit Price

BOLT, HEXAGON (1FF

901090661400

975220651600

1,34 $

Unit Price

RELAIS DES CLIGNOTANTS CPLT

4K0833502000 4K0833502000

Not available

ARRET DES CLIGNOTANTS CPLT

4A0833950300 4A0833950300

Not available

HORN

1WT833710000

4L0833713000

73,77 $

Unit Price

SUPPORT, AVERTISSEUR

51L833780000 51L833780000

Not available

BOULON

980060801000 980060801000

Not available

THERMO UNIT

11H835910000 11H835910000

53,01 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL 2 of your Yamaha RD350LC of 1986. Let us know if you have any questions.
