CYLINDER

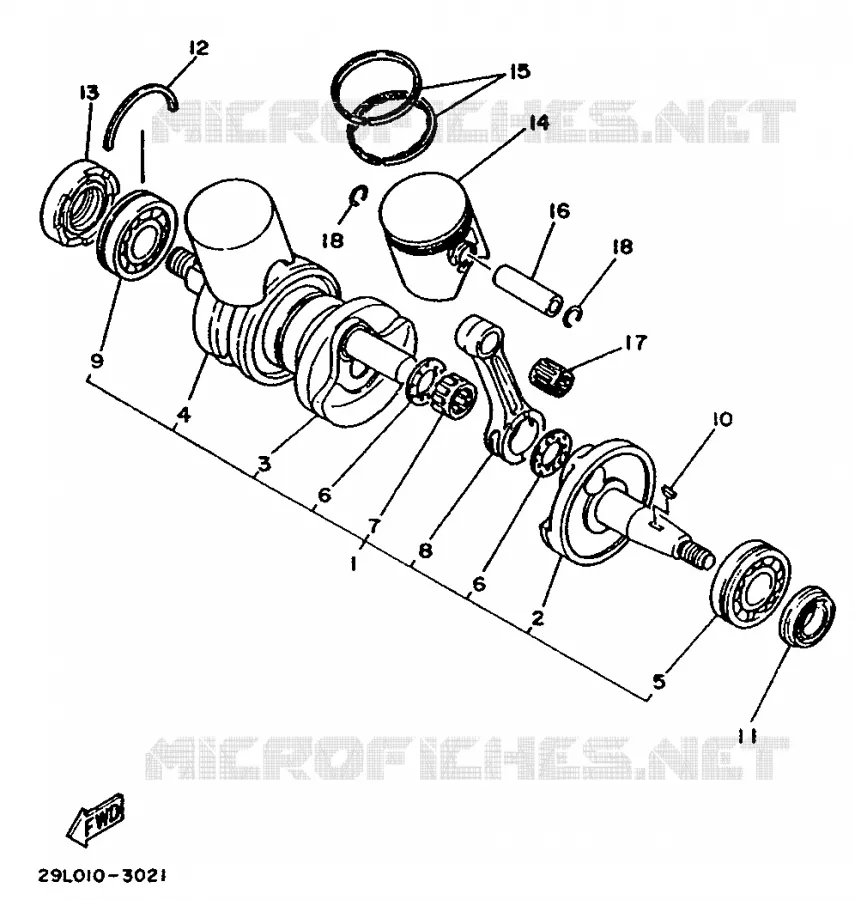

CRANKSHAFT / PISTON FOR YAMAHA RDLC 1986

WATERPUMP

CRANKSHAFT ASSY

29L114003000 29L114003000

1 383,78 $

Unit Price

CRANK 1

29L114120000 29L114120000

316,12 $

Unit Price

CRANK SUB ASSY 1

29L114093000

29L114010900

754,02 $

Unit Price

CRANK 4

29L114421000 29L114421000

260,90 $

Unit Price

BEARING

933063054800

933063057100

81,21 $

Unit Price

WASHER(47X)

902092229200

902092225700

24,77 $

Unit Price

BEARING, CYLINDRICAL(3XP)

93310522L400

93310523D200

86,63 $

Unit Price

ROD, CONNECTING

29L116510000 29L116510000

66,59 $

Unit Price

BEARING(1UA)

933063054900 933063054900

81,01 $

Unit Price

KEY, WOODRUFF (8R9)

902800503300 902800503300

12,77 $

Unit Price

OIL SEAL (2R8)

931032510800 931032510800

26,26 $

Unit Price

CIRCLIP

278174240100 278174240100

15,55 $

Unit Price

OIL SEAL (40X62X10-360)

931034007700 931034007700

23,15 $

Unit Price

PISTON (STD)

1UA116310094 1UA116310094

Not available

PISTON (0.25MM O/S)

1UA116350000 1UA116350000

Not available

PISTON (0.50MM O/S)

1UA116360000 1UA116360000

Not available

PISTON RING SET (STD)

1UA116100000 1UA116100000

77,63 $

Unit Price

PISTON RING SET (0.25MM O-S)

1UA116101000 1UA116101000

60,20 $

Unit Price

PISTON RING SET (2ND O-S)

1UA116102000 1UA116102000

80,08 $

Unit Price

PIN, PISTON

4L0116330000 4L0116330000

26,66 $

Unit Price

BEARING, CYLINDRICAL(8AX)

93310316H600

93310316D600

45,71 $

Unit Price

CIRCLIP(1AR)

4V2116340000

934501712900

1,78 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT / PISTON of your Yamaha RD350LC of 1986. Let us know if you have any questions.
