LEG SHIELD FOR YAMAHA TRICITY 2024

WINDSCREEN

Item numbers

GRILLE, ADMISSION A AIR 1

BX9F837N0100 BX9F837N0100

Not available

BOLT, WITH WASHER

901190605100 901190605100

2,36 $

Unit Price

RIVET

902690681600 902690681600

1,06 $

Unit Price

RIVET

902690681200 902690681200

0,84 $

Unit Price

JOINT

BBRF414G1000 BBRF414G1000

Not available

CORPS INFERIEUR AVANT 1

BX9F835J00P5 BX9F835J00P5

Not available

NUT, SPRING(1YT)

901830580700

901830504200

1,46 $

Unit Price

SCREW, TAPPING

977025001600 977025001600

2,49 $

Unit Price

PANNEAU, FOURCHE NUE 3

BX9F836M0000 BX9F836M0000

Not available

RIVET

902690602000 902690602000

1,17 $

Unit Price

MOULURE 1

BX9F83450000 BX9F83450000

Not available

RIVET

902690681600 902690681600

1,06 $

Unit Price

CORPS INFERIEUR AVANT 2

BX9F835K00P5 BX9F835K00P5

Not available

NUT, SPRING(1YT)

901830580700

901830504200

1,46 $

Unit Price

SCREW, TAPPING

977025001600 977025001600

2,49 $

Unit Price

PANNEAU 4

BX9F836N0100 BX9F836N0100

Not available

SCREW, TAPPING

977025001600 977025001600

2,49 $

Unit Price

MOULURE 2

BX9F83460000 BX9F83460000

Not available

RIVET

902690681600 902690681600

1,06 $

Unit Price

PROTEGE JAMBE 1

BX9F83110000 BX9F83110000

Not available

SCREW, TRUSS TAP.

977025001200

977075001200

1,95 $

Unit Price

NUT, SPRING(1YT)

901830580700

901830504200

1,46 $

Unit Price

BOLT

90109068B500 90109068B500

2,50 $

Unit Price

BOLT, WITH WASHER

901190605100 901190605100

2,36 $

Unit Price

SCREW, ROUND TAPPING (50C1)

901600580800 901600580800

0,47 $

Unit Price

COUVERCLE 3

BX9F843J00P5 BX9F843J00P5

Not available

NUT, SPRING(1YT)

901830580700

901830504200

1,46 $

Unit Price

PLAQUE

BX9F843L0000 BX9F843L0000

Not available

COUVERCLE 4

BX9F844J00P5 BX9F844J00P5

Not available

NUT, SPRING(1YT)

901830580700

901830504200

1,46 $

Unit Price

COUVERCLE 2

BX9F842N0000 BX9F842N0000

Not available

SCREW, TRUSS TAP.

977025001200

977075001200

1,95 $

Unit Price

COUVERCLE, CARBURANT

BX9F74A800P0 BX9F74A800P0

Not available

NUT, SPRING(1YT)

901830580700

901830504200

1,46 $

Unit Price

LID 4

B74F839W0100 B74F839W0100

27,75 $

Unit Price

PLUG

903380701800 903380701800

11,09 $

Unit Price

SCREW, TRUSS TAP.

977025001200

977075001200

1,95 $

Unit Price

AXE

BX9F818A0000 BX9F818A0000

Not available

SPRING, TORSION

905081480300 905081480300

4,49 $

Unit Price

DAMPER

B74F834F0000 B74F834F0000

38,31 $

Unit Price

BOX 4

B74F838W0000 B74F838W0000

25,53 $

Unit Price

NUT, SPRING

901830681800 901830681800

4,60 $

Unit Price

SEAT LOCK ASSY

1DYF47800000 1DYF47800000

42,52 $

Unit Price

BOLT, FLANGE DEEP RECESS

95E320601200 95E320601200

0,41 $

Unit Price

CABLE, TENSION

BX9F44940000 BX9F44940000

Not available

BRIDE

904644580200 904644580200

Not available

BOLT (B9B1)

90109068B200 90109068B200

1,77 $

Unit Price

PANNEAU, CONSOLE 1

BX9F837L00P0 BX9F837L00P0

Not available

RIVET

902690681600 902690681600

1,06 $

Unit Price

EMBLEM

B74F414B0000

B74F414B1000

37,38 $

Unit Price

EMBLEM

B74F414B0000

B74F414B1000

37,38 $

Unit Price

ETIQUETTE ESSENCE

BB8F817K4000 BB8F817K4000

Not available

ETIQUETTE, AVERTISSEMENT

B74F15680000 B74F15680000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

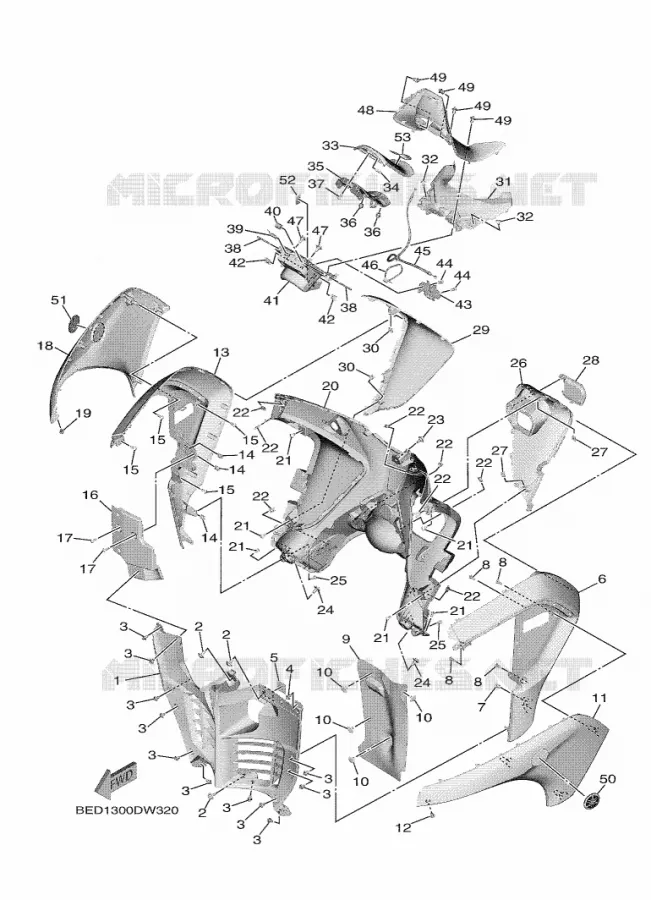

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the LEG SHIELD of your Yamaha TRICITY 300 of 2024. Let us know if you have any questions.
