STEERING

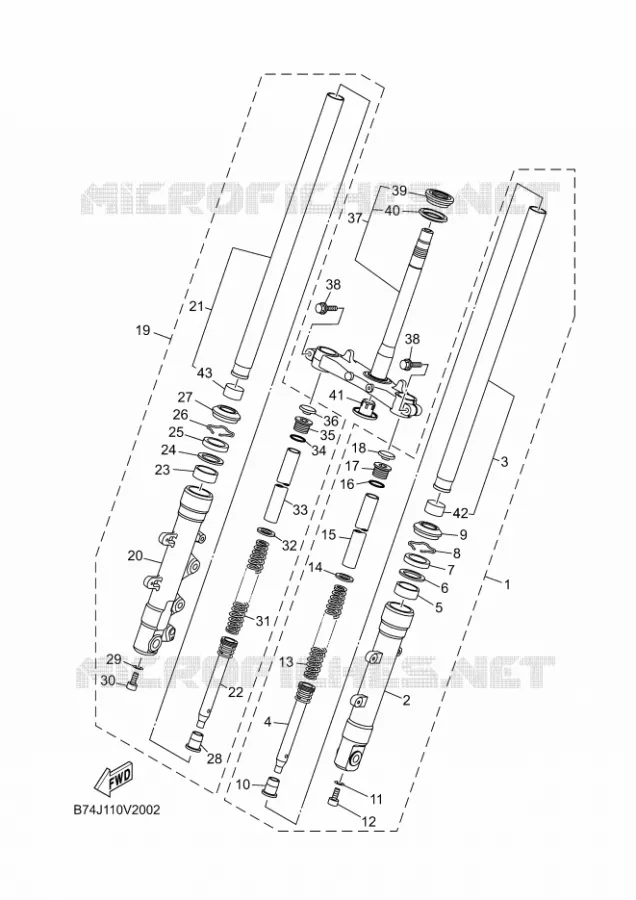

FRONT FORK FOR YAMAHA XMAX 2023

FUEL TANK

Item numbers

FRONT FORK ASSY (L.H)

B74F31020000 B74F31020000

446,35 $

Unit Price

TUBE, OUTER (L.H)

B74F31260000 B74F31260000

204,13 $

Unit Price

INNER TUBE COMP.1

B74F31100000 B74F31100000

240,21 $

Unit Price

CYLINDER COMP., FRONT FORK

B74F31700000 B74F31700000

102,54 $

Unit Price

METAL, SLIDE 1

4HC231252000 4HC231252000

18,82 $

Unit Price

WASHER, OIL SEAL

22W23146L000 22W23146L000

10,05 $

Unit Price

OIL SEAL

5BPF31450000 5BPF31450000

32,96 $

Unit Price

(TTM) CLIP, OIL SEAL (TZM150)

22WF3156L000 22WF3156L000

10,33 $

Unit Price

SEAL, DUST

5BPF31440000 5BPF31440000

38,90 $

Unit Price

SPACER, OIL LOCK

2CMF31660000 2CMF31660000

14,36 $

Unit Price

GASKET

2BUF31580000 2BUF31580000

3,64 $

Unit Price

BOLT, HEXAGON SOCKET HEAD

31BF31810000

3D8231810000

8,83 $

Unit Price

SPRING, FRONT FORK

B74F31410000 B74F31410000

51,62 $

Unit Price

WASHER, SPRING UPPER

2JKF31490100 2JKF31490100

8,26 $

Unit Price

SPACER

B74F31180000 B74F31180000

26,92 $

Unit Price

GASKET

2JKF31140000 2JKF31140000

5,22 $

Unit Price

BOLT, CAP

5BPF31111000 5BPF31111000

50,14 $

Unit Price

FRONT FORK CAP

2N4231680000 2N4231680000

8,48 $

Unit Price

FRONT FORK ASSY (R.H)

B74F31030000 B74F31030000

446,35 $

Unit Price

TUBE, OUTER 2

B74F31360000 B74F31360000

204,13 $

Unit Price

INNER TUBE COMP.1

B74F31100000 B74F31100000

240,21 $

Unit Price

CYLINDER COMP., FRONT FORK

B74F31700000 B74F31700000

102,54 $

Unit Price

METAL, SLIDE 1

4HC231252000 4HC231252000

18,82 $

Unit Price

WASHER, OIL SEAL

22W23146L000 22W23146L000

10,05 $

Unit Price

OIL SEAL

5BPF31450000 5BPF31450000

32,96 $

Unit Price

(TTM) CLIP, OIL SEAL (TZM150)

22WF3156L000 22WF3156L000

10,33 $

Unit Price

SEAL, DUST

5BPF31440000 5BPF31440000

38,90 $

Unit Price

SPACER, OIL LOCK

2CMF31660000 2CMF31660000

14,36 $

Unit Price

GASKET

2BUF31580000 2BUF31580000

3,64 $

Unit Price

BOLT, HEXAGON SOCKET HEAD

31BF31810000

3D8231810000

8,83 $

Unit Price

SPRING, FRONT FORK

B74F31410000 B74F31410000

51,62 $

Unit Price

WASHER, SPRING UPPER

2JKF31490100 2JKF31490100

8,26 $

Unit Price

SPACER

B74F31180000 B74F31180000

26,92 $

Unit Price

GASKET

2JKF31140000 2JKF31140000

5,22 $

Unit Price

BOLT, CAP

5BPF31111000 5BPF31111000

50,14 $

Unit Price

FRONT FORK CAP

2N4231680000 2N4231680000

8,48 $

Unit Price

UNDER BRACKET COMP.

B74F33400000 B74F33400000

593,19 $

Unit Price

BOLT

2JKF33460000 2JKF33460000

13,73 $

Unit Price

BEARING(3FV)

933999993200 933999993200

72,60 $

Unit Price

SEAL, STEERING

3FV234620000 3FV234620000

23,86 $

Unit Price

COVER, UNDER 1

B65F31230000 B65F31230000

3,08 $

Unit Price

PISTON, FRONT FORK

1B7231710000 1B7231710000

25,78 $

Unit Price

PISTON, FRONT FORK

1B7231710000 1B7231710000

25,78 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
