STAND / FOOTREST

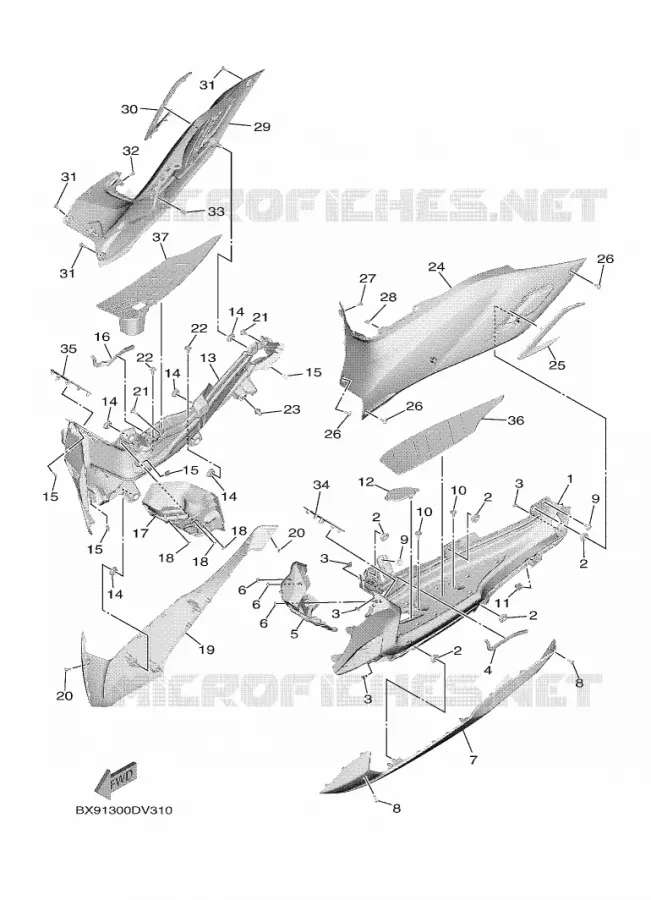

STAND / FOOTREST 2 FOR YAMAHA TRICITY 2022

BOTTOM COWLING

Item numbers

BOARD, FOOTREST

BX9F74810000 BX9F74810000

Not available

GROMMET(4DN)

904800186800

904800155800

12,86 $

Unit Price

NUT, SPRING(1YT)

901830580700

901830504200

1,46 $

Unit Price

DAMPER, PLATE

905201082500 905201082500

Not available

COVER, FOOTREST

BX9F74130000 BX9F74130000

Not available

NUT, SPRING(1FK)

901830681500

901830600800

1,68 $

Unit Price

MOLE, SIDE COVER 1

BX9F171L00P3 BX9F171L00P3

Not available

SCREW, TAPPING

901670580100 901670580100

2,19 $

Unit Price

BOLT

90109068B500 90109068B500

2,50 $

Unit Price

BOLT, WITH WASHER

901190605100 901190605100

2,36 $

Unit Price

RIVET

902690900500 902690900500

0,30 $

Unit Price

COVER

BF6F172W0100 BF6F172W0100

Not available

BOARD, FOOTREST 2

BX9F74880000 BX9F74880000

Not available

GROMMET(4DN)

904800186800

904800155800

12,86 $

Unit Price

NUT, SPRING(1YT)

901830580700

901830504200

1,46 $

Unit Price

DAMPER, PLATE

905201082500 905201082500

Not available

COVER, FOOTREST

BX9F74230000 BX9F74230000

Not available

NUT, SPRING(1FK)

901830681500

901830600800

1,68 $

Unit Price

MOLE, SIDE COVER 2

BX9F171M00P3 BX9F171M00P3

Not available

SCREW, TAPPING

901670580100 901670580100

2,19 $

Unit Price

BOLT

90109068B500 90109068B500

2,50 $

Unit Price

BOLT, WITH WASHER

901190605100 901190605100

2,36 $

Unit Price

RIVET

902690900500 902690900500

0,30 $

Unit Price

COVER, SIDE 1

BX9F17110000 BX9F17110000

Not available

PLATE 3

BX9F84971000 BX9F84971000

Not available

SCREW, TAPPING

901670580100 901670580100

2,19 $

Unit Price

SCREW, TRUSS TAP.

977025001200

977075001200

1,95 $

Unit Price

NUT, SPRING(1YT)

901830580700

901830504200

1,46 $

Unit Price

COVER, SIDE 2

BX9F17210000 BX9F17210000

Not available

PLATE, 4

BX9F846H1000 BX9F846H1000

Not available

SCREW, TAPPING

901670580100 901670580100

2,19 $

Unit Price

SCREW, TRUSS TAP.

977025001200

977075001200

1,95 $

Unit Price

NUT, SPRING(1YT)

901830580700

901830504200

1,46 $

Unit Price

MAT 1

BX9F74830000 BX9F74830000

Not available

MAT 2

BX9F74840000 BX9F74840000

Not available

MAT 3

BX9F74930000 BX9F74930000

Not available

MAT 4

BX9F74940000 BX9F74940000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STAND / FOOTREST 2 of your Yamaha TRICITY 300 of 2022. Let us know if you have any questions.
