CAMSHAFT / TIMING CHAIN

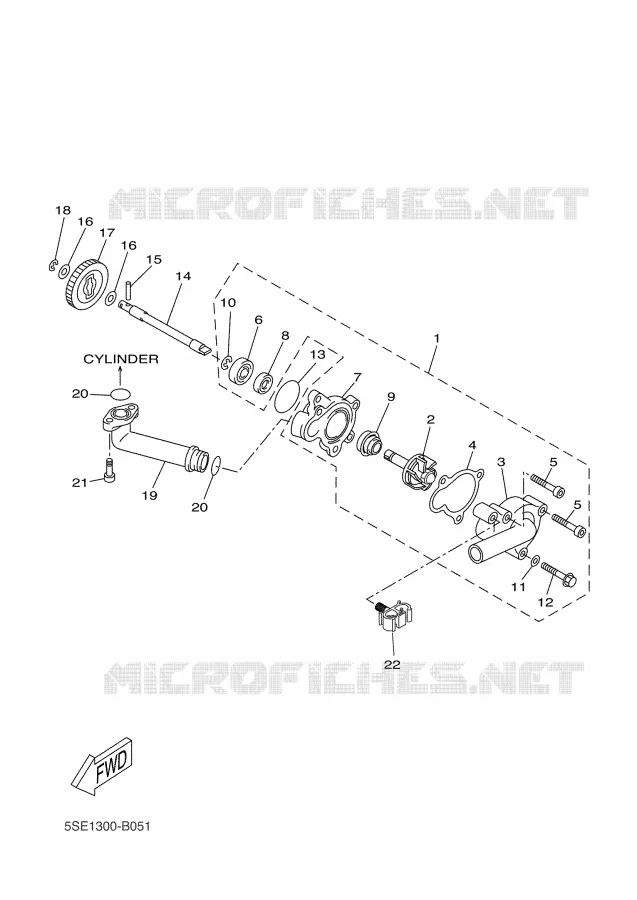

WATERPUMP / HOSES FOR YAMAHA VERSITY 2005

RADIATOR / HOSES

POMPE A EAU COMPLETE

5HWE24200100 5HWE24200100

Not available

.AXE DE ROTOR AXE DE ROTOR

5HWE24500000 5HWE24500000

Not available

.COUVERCLE DE CARTER DE POMPE COUVERCLE DE CARTER DE POMPE

5HWE24220000 5HWE24220000

Not available

.JOINT, COUVERCLE DE CARTER 2 JOINT, COUVERCLE DE CARTER 2

4HC124281000 4HC124281000

Not available

.BOULON, TETE HEXAGONALE CREUSE BOULON, TETE HEXAGONALE CREUSE

9011006X4500 9011006X4500

Not available

.ROULEMENT ROULEMENT

93306000Y000 93306000Y000

Not available

.CARTER, POMPE A EAU CARTER, POMPE A EAU

5HWE24210000 5HWE24210000

Not available

OIL SEAL (J10)

931011009000 931011009000

10,62 $

Unit Price

SEAL, MECHANICAL

11H124381000 11H124381000

32,07 $

Unit Price

.CIRCLIP, TYPE S CIRCLIP, TYPE S

9341010X0000 9341010X0000

Not available

.RONDELLE, PLATE RONDELLE, PLATE

9020106X0900 9020106X0900

Not available

.BOULON, AVEC RONDELLE BOULON, AVEC RONDELLE

9010506X1900 9010506X1900

Not available

O-RING (626)

932103313300 932103313300

10,38 $

Unit Price

AXE

5GM124260000 5GM124260000

Not available

GOUJON

9360322X0000 9360322X0000

Not available

RONDELLE, PLATE

9020108X1000 9020108X1000

Not available

PIGNON D AXE DE ROTOR

4HC124590000 4HC124590000

Not available

CIRCLIP(6L2)

990010760000

990800760000

1,77 $

Unit Price

JOINT

4HC124460000 4HC124460000

Not available

O-RING

932101627500 932101627500

4,88 $

Unit Price

BOULON, TETE HEXAGONALE CREUSE

9011006X2900 9011006X2900

Not available

BRIDE

9046406X0000 9046406X0000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
