CAMSHAFT / TIMING CHAIN

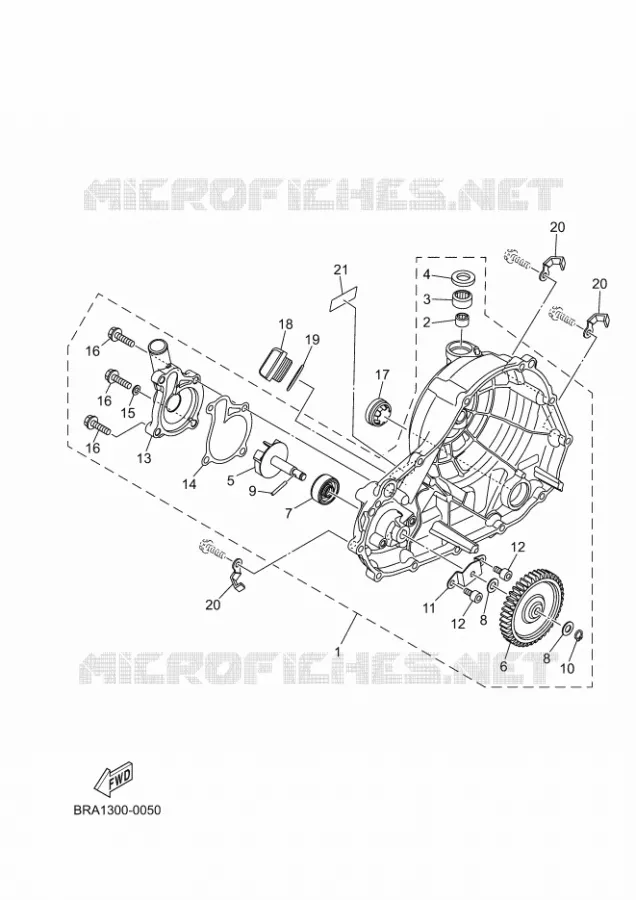

WATERPUMP / HOSES FOR YAMAHA R3 2025

RADIATOR / HOSES

Item numbers

WATER PUMP ASSY

BRAE24200000 BRAE24200000

929,25 $

Unit Price

BEARING

933171109600 933171109600

18,46 $

Unit Price

BEARING

933152157000 933152157000

18,01 $

Unit Price

OIL SEAL

931021580100

931021580500

7,55 $

Unit Price

IMPELLER SHAFT ASSY

1WDE24500000 1WDE24500000

82,96 $

Unit Price

GEAR

1WDE24530000 1WDE24530000

136,17 $

Unit Price

SEAL

33SE22230000 33SE22230000

122,22 $

Unit Price

WASHER

33SE24560000 33SE24560000

2,48 $

Unit Price

PIN, STRAIGHT

1WDE319L0000 1WDE319L0000

11,29 $

Unit Price

CIRCLIP

990090840000 990090840000

0,23 $

Unit Price

PLATE

1WDE26810000 1WDE26810000

22,06 $

Unit Price

BOLT, SOCKET

913120601000

913170601000

4,24 $

Unit Price

COVER, HOUSING

BRAE24220000 BRAE24220000

158,40 $

Unit Price

GASKET, HOUSING COVER 2

1WDE24280000 1WDE24280000

16,25 $

Unit Price

GASKET 256113960000

904300601400 904300601400

5,45 $

Unit Price

BOLT, FLANGE

950220602500 950220602500

1,47 $

Unit Price

GAUGE, LEVEL

2H7153610000 2H7153610000

42,74 $

Unit Price

PLUG, OIL LEVEL

1WDE53620000 1WDE53620000

15,86 $

Unit Price

O-RING

932102780700 932102780700

2,07 $

Unit Price

CLAMP(4AJ)

904620822500 904620822500

8,63 $

Unit Price

OIL, LABEL

BRAE548B0000 BRAE548B0000

4,68 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
